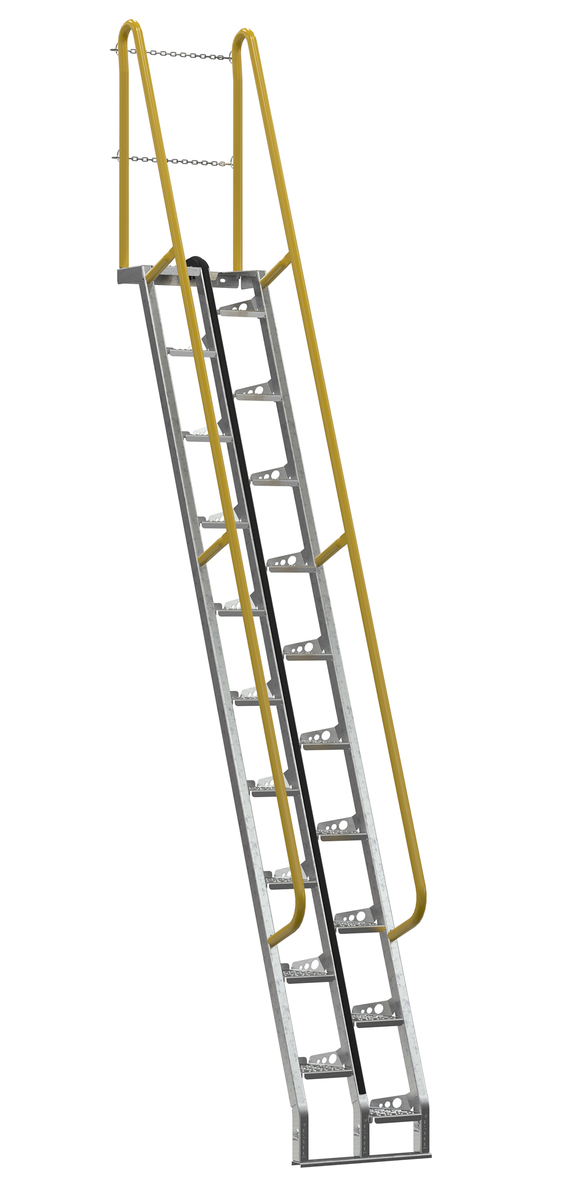

VESTIL ATS-12-68-HDG Galvanized Alternate Tread Stair, 68 Deg, 68-1/2 x 23-1/2 x 185-5/8 Inch, 350 lb Capacity, Silver
Item: CE3AEVModel: ATS-12-68-HDG
Due to weight and dimension restrictions, please request a shipping quote
In Stock
€3,896.59 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stair Tread |
| Assembled Depth | 68 1/2" |
| Assembled Height | 185 5/8" |
| Assembled Width | 23 1/2" |
| Assembly | Assembly Required |
| Batteries Included | No |
| Capacity | 350 lbs. |
| Certification Indicator | D |
| Chain Length | 3/16" |
| Climbing Angle | 68° |
| Color | Silver |
| Color Family | Silver |
| Contains Hazardous Material Or Is Aerosol | No |
| Distance Between Rung/steps | 7.187" |
| Duty Rating | 350 lbs. |
| Features | Two Sided Hand Railing Provides Added User Safety |
| Hand Rail Height | 12 1/4" |
| Handrail Design | Fixed Handrail |
| Handrail Material | Steel |
| Height | 185.63" |
| Included | Safety Chain |
| Installation Hardware Included | No |
| Ladder Material | Steel |
| Material | Steel |
| No. Of Steps | 20 |
| Origin Criterion | B |
| Overall Height | 185 5/8" |
| Overall Length | 68 1/2" |
| Overall Width | 23 1/2" |
| Rung/step Depth | 10 1/2" |
| Rung/step Material | Steel |
| Rung/step Width | 9 1/8" |
| Step Depth | 10 1/2" |
| Step Spacing | 7 3/16" |
| Step Width | 9 1/8" |
| Top Step Depth | 9 3/4" |
| Top Step Height | 143 3/4" |
| Top Step Height From Ground | 143 3/4" |
| Top Step Width | 23 5/8" |
| Width | 23 1/2" |
Shipping Info:
| Ship weight (kg) | 152.1 |
| Ship length (cm) | 173.99 |
| Ship width (cm) | 59.69 |
| Country of Origin | US |
Product Variants
| Product | Model | Top Step Height | Color | Top Step Depth | Hand Rail Height | Top Step Width | Overall Height | Height | Step Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATS-7-56 | 7 ft. | Yellow | 9 4/5" | 18.6" | 23.6" | 10.5 ft. | 126 3/4" | 9.1" | €2,517.95 | |
 |
ATS-8-56 | 8 ft. | Yellow | 9 4/5" | 18.6" | 23.6" | 11.5 ft. | 138 1/4" | 9.1" | €2,860.88 | |
 |
ATS-9-56 | 9 ft. | Yellow | 9 4/5" | 18.6" | 23.6" | 12.5 ft. | 150 1/4" | 9.1" | €3,033.35 | |
 |
ATS-10-56 | 10 ft. | Yellow | 9 4/5" | 18.6" | 23.6" | 13.5 ft. | 162.38" | 9.1" | €3,161.37 | |
 |
ATS-7-68 | 7 ft. | Yellow | 9 4/5" | 12.3" | 23.6" | 10.5 ft. | 125 22/25" | 9.1" | €2,486.73 | |
 |
ATS-8-68 | 8 ft. | Yellow | 9 4/5" | 12.3" | 23.6" | 11.5 ft. | 137 3/4" | 9.1" | €2,816.77 | |
 |
ATS-9-68 | 9 ft. | Yellow | 9 4/5" | 12.3" | 23.6" | 12.5 ft. | 149.63" | 9.1" | €2,880.40 |
