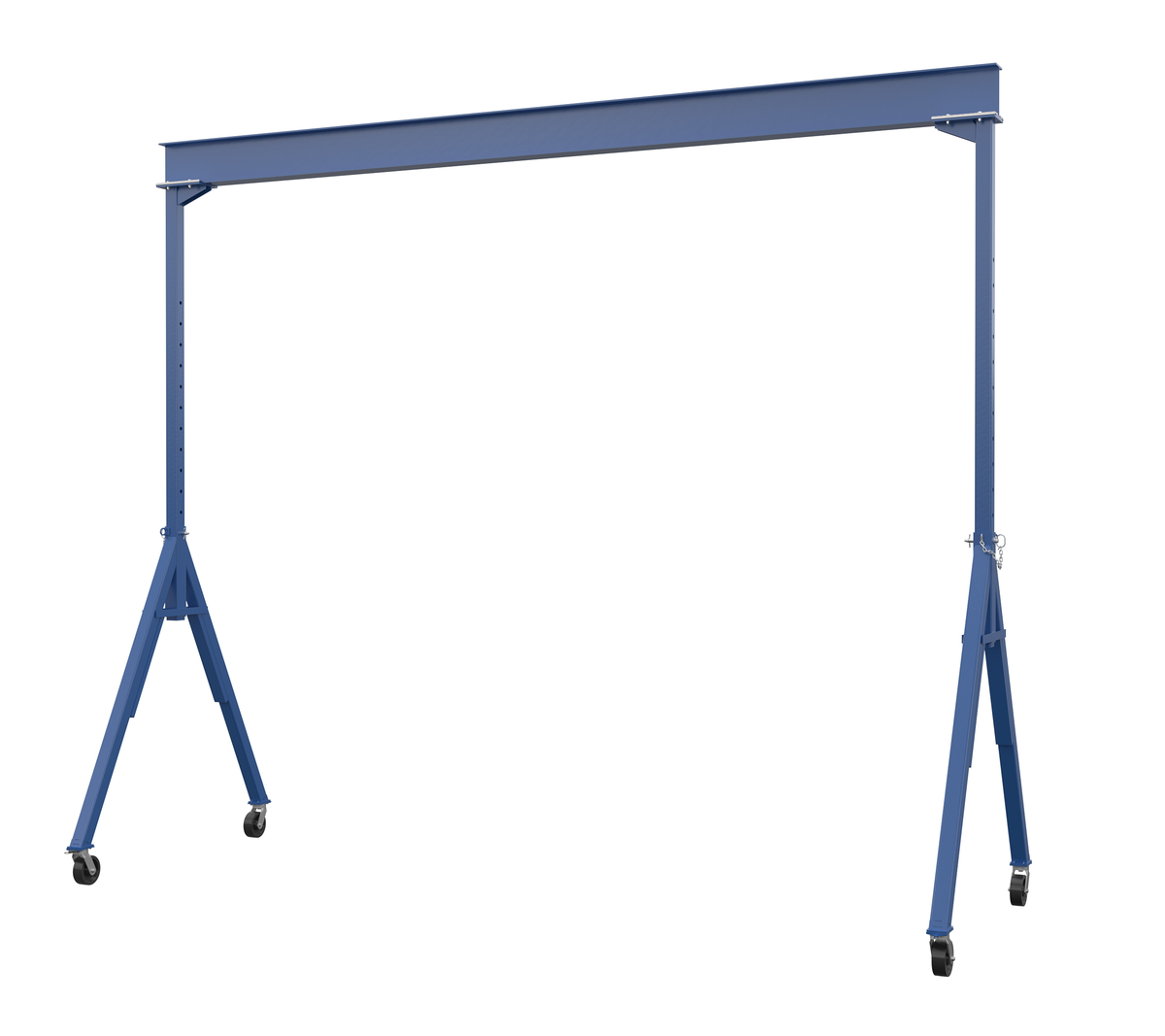

VESTIL AHS-8-20-14 Steel Adjustable Height Gantry Crane with Phenolic Caster, 20 x 14 ft, 8000 lb Capacity, Blue
Get it by Tuesday, Sep 1
€5,294.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Gantry Crane |
| Adjustable Height | Yes |
| Assembled Depth | 239 3/4" |
| Assembled Height | 181 3/8" |
| Assembled Width | 88 1/2" |
| Assembly | Assembly Required |
| Base Length | 239 3/4" |
| Base Width | 88 1/2" , 88.312" |
| Batteries Included | No |
| Beam Height | 12 5/16" , 12.31" |
| Beam Height | 12.31" |
| Beam Length | 240" |
| Capacity | 8000 lbs. |
| Caster Configuration | Swivel (4) Position Locking Casters |
| Caster Dia. | 8" |
| Caster Lock | Yes |
| Caster Material | Phenolic |
| Caster Width | 3" |
| Caster/wheel Locking | Yes |
| Certification Indicator | D |
| Color | Blue |
| Color Family | Blue |
| Contains Hazardous Material Or Is Aerosol | No |
| Features | Heavy Duty Welded Steel Construction For Long Lasting Use |
| Flange Width | 6 1/2" |
| Frame Material | Steel |
| Height | 180.687" |
| Height Adjustment | 6 In. |
| I Beam Height | 102" to 168" |
| I Beam Length | 240" |
| Increment Height Adjustment | 6" |
| Length | 239 3/4" |
| Material | Steel |
| Max. Clearance | 169" |
| Max. Overall Height | 181 3/8" |
| Measuring Units | EACH |
| Min. Clearance | 103" |
| No. Of Casters | 4 |
| No. Of Casters/wheels | 4 |
| Origin Criterion | B |
| Under I Beam Usable Height | 103" to 169" |
| Usable Beam Length | 209 3/4" |
| Usable Travel Distance | 209 3/4" |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel Width | 3" |
| Width | 88.312" |
Shipping Info:
| Ship weight (kg) | 400.95 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 226.06 |
| HS code | 8426190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Caster Material | I Beam Height | Beam Height | Max. Overall Height | Wheel Material | Height | Assembled Height | Assembled Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AHS-10-15-10 | Ductile Steel | 78" to 120" | 12.13" | - | - | 132 1/4" | 132 1/4" | 64 1/2" | €6,294.09 | |
 |
AHS-2-10-12 | Glass Filled Nylon | 90" to 144" | 6" | - | - | 149.937" | 149 15/16" | 76 1/8" | €2,901.99 | |
 |
AHS-2-10-16 | Glass Filled Nylon | 126" to 192" | 6" | - | - | 198.062" | 198 1/16" | 88 1/2" | €3,863.82 | |
 |
AHS-2-15-10 | Glass Filled Nylon | 78" to 120" | 6" | - | - | 126" | 126" | 64 1/4" | €2,775.88 | |
 |
AHS-2-15-12 | Glass Filled Nylon | 90" to 144" | 6" | - | - | 149.937" | 149 15/16" | 76 1/8" | €3,192.05 | |
 |
AHS-2-15-14 | Glass Filled Nylon | 102" to 168" | 6" | - | - | 174.062" | 174 1/16" | 88 1/2" | €3,412.96 | |
 |
AHS-2-15-16 | Glass Filled Nylon | 126" to 192" | 6" | - | - | 198.062" | 198 1/16" | 88 1/2" | €4,070.88 |
