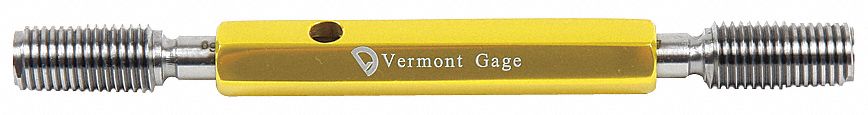

VERMONT GAGE 372124530 Threaded Plug Gage Assembly Set, M10 x 1.25 Thread Size, Go/NoGo, Metric
Item: AE7VUDModel: 372124530Cross Ref: 6ATH9
7 In Stock
Ships within 2 days via
5.00% off
€346.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug Gage Assembly |
| Application | Inspect External Product Unified And M Series Of Threads On Screws, Bolts, Studs |
| Class | Class 6G |
| Dimensions Type | Metric |
| Direction Of Tolerance | Go/No Go |
| Gauge Length-go Member | 25.4 mm |
| Gauge Length-no-go Member | 25.4 mm |
| Gauge Type | Go/No Go (Plus/Minus) |
| Handle Color | Yellow |
| Handle Design | Double End |
| Handle Length | 3" |
| Hardness | Rockwell 60-62 |
| Included Certification | Certificate Of Accuracy With Nist Traceability |
| Included Handle | Taperlock 2 |
| Material | Tool Steel |
| Overall Length | 5 1/2" |
| Pitch Dia.-go Member | 9.16 mm |
| Pitch Dia.-no-go Member | 9.04 mm |
| Style | Set Plug |
| System Of Measurement | Metric |
| Thread Class | Class 6G |
| Thread Direction | Right Hand |
| Thread Size | M10 x 1.25 |
| Tolerance Class | Class X |
| Type | Assembly |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 2.54 |
| HS code | 9031808085 |
| Country of Origin | US |
Product Variants
| Model | Material | Type | Style | Class | Gauge Type | Gauge Length-go Member | Gauge Length-no-go Member | Hardness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 372101030 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 5.6 mm | 5.6 mm | Rockwell 60-62 | €430.85 | |
| 372104030 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 5.6 mm | 5.6 mm | Rockwell 60-62 | €422.99 | |
| 372107030 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 9.5 mm | 9.5 mm | Rockwell 60-62 | €422.99 | |
| 372108530 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 9.5 mm | 9.5 mm | Rockwell 60-62 | €410.79 | |
| 372110030 | Tool Steel | Go/No Go, Taperlock | - | Class 6G | Go/No Go (Plus/Minus) | 9.5 mm | 9.5 mm | Rockwell 60-62 | €392.20 | |
| 372111530 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 10.3 mm | 10.3 mm | Rockwell 60-62 | €392.20 | |
| 372114530 | Tool Steel | Assembly | Set Plug | Class 6G | Go/No Go (Plus/Minus) | 10.3 mm | 10.3 mm | Rockwell 60-62 | €393.26 |
