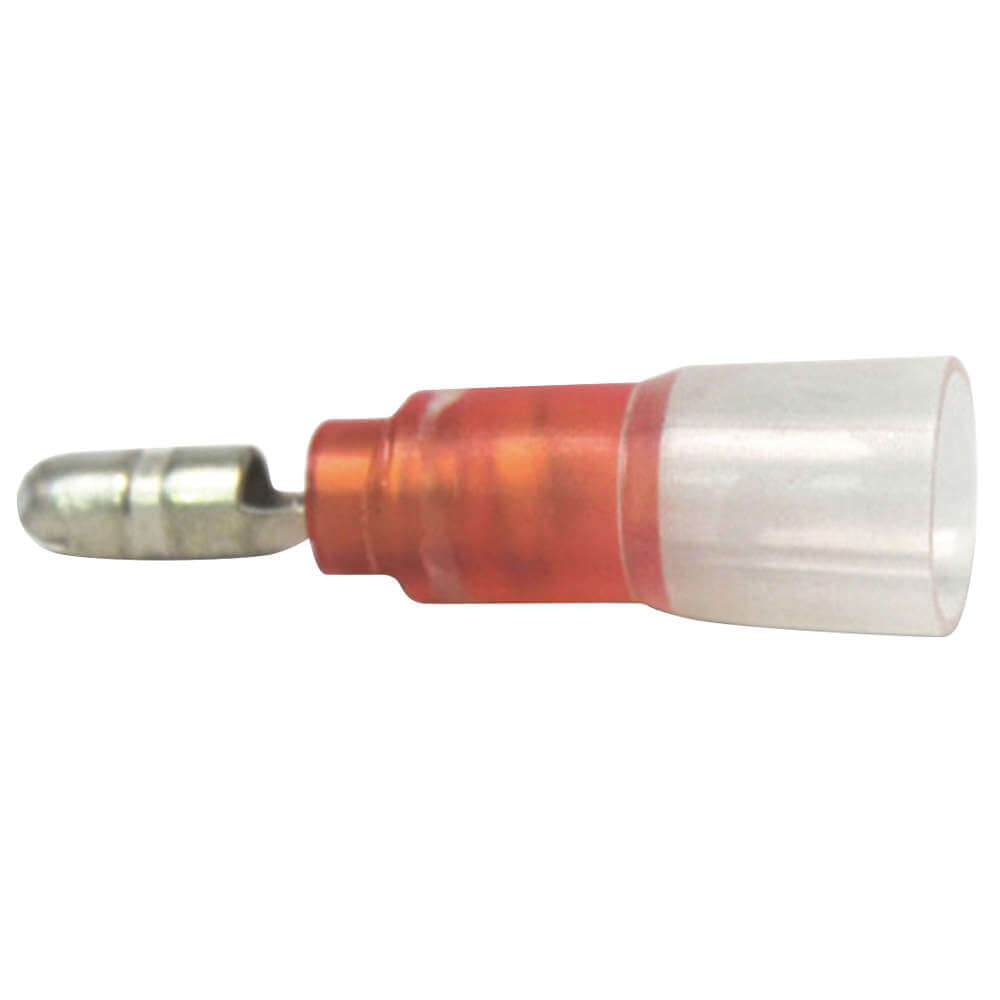

VELVAC 30169 Male Heat Shrink Bullet 22 - 18 Awg
Item: AF7HPTModel: 30169Cross Ref: 21DG97
7 In Stock
Ships within 2 days via
10.00% off
€21.87 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Disconnect |
| Barrel Inside Dia. | 0.062" |
| Color Code | Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Disconnect Style | Bullet |
| Insulation | Full |
| Insulation Color | Red |
| Insulation Coverage | Full Coverage |
| Insulation Material | Nylon, Polyolefin |
| Insulation Type | Heat Shrink |
| Max. Temp. | 90°F |
| Max. Voltage | 600V |
| Max. Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 1.35" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Special Features | Adhesive Lining Which Blocks Out Water, Adds Tensile Strength And Strain Relief, Cns Extreme Waterproof Wire Terminals Are Designed To Perform In The Harshest Environments, It Has A Triple Layer Of Protection Around A 99.9% Copper Connector For Maximum Strength And Conductivity, Polyolefin Shrink Tubing Which Allows A Complete Environment And An Abrasion Resistant Seal |
| Tab Size | 0.156" |
| Tab Thickness | 0.032" |
| Tab Width | 0.156" |
| Terminal Type | Tab |
| Termination Style | Crimp |
| Wire Size | 22 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8536904000 |
Product Variants
| Product | Model | Wire Size | Insulation Color | Barrel Inside Dia. | Overall Length | Color Code | Insulation Material | Insulation | Connection Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

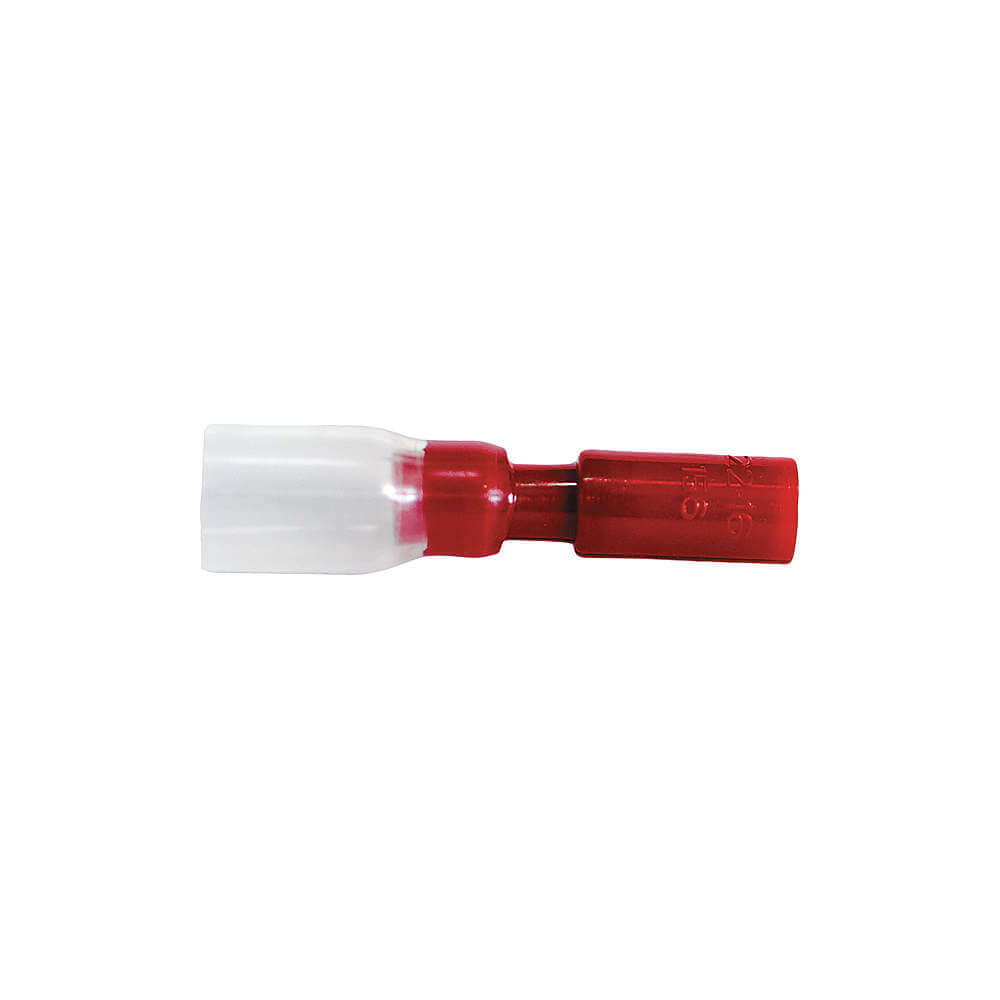

30179 | 22 AWG to 18 AWG | Red | 0.062" | 1 12/25" | Red | Nylon, Polyolefin | Full | Crimp | 10 | €24.62 | |
 |

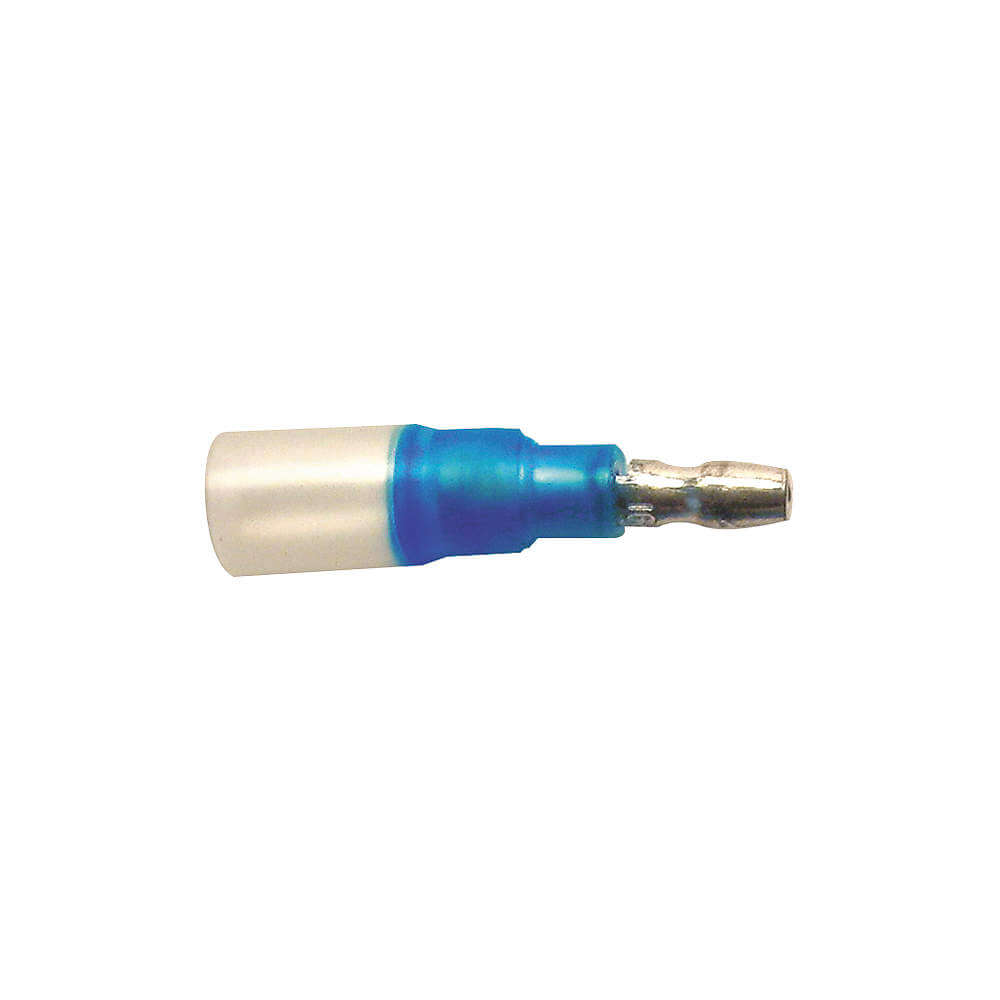

30369 | 14 AWG | Blue | 0.097" | 1.35" | Blue | Nylon, Polyolefin | Full | Crimp | 10 | €23.87 | |
 |

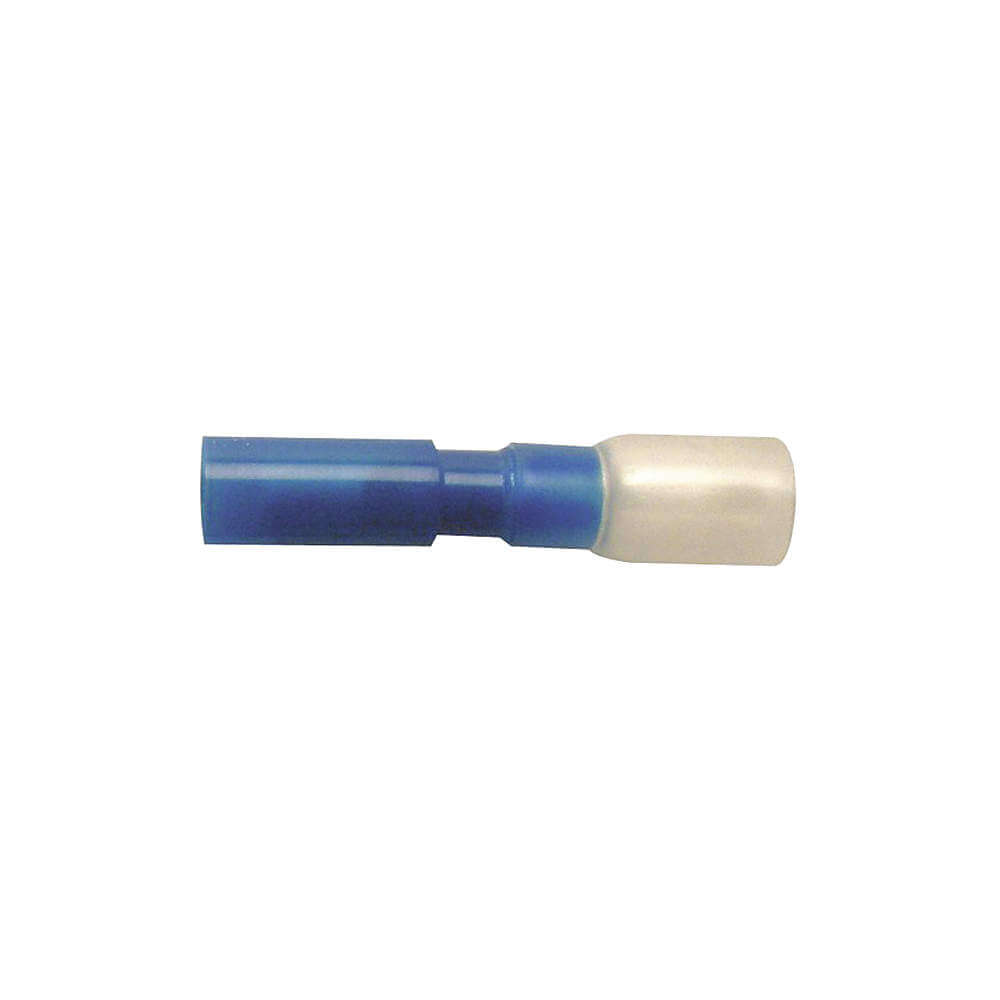

30379 | 14 AWG | Blue | 0.097" | 1.42" | Blue | Nylon, Polyolefin | Full | Crimp | 10 | €24.00 |
