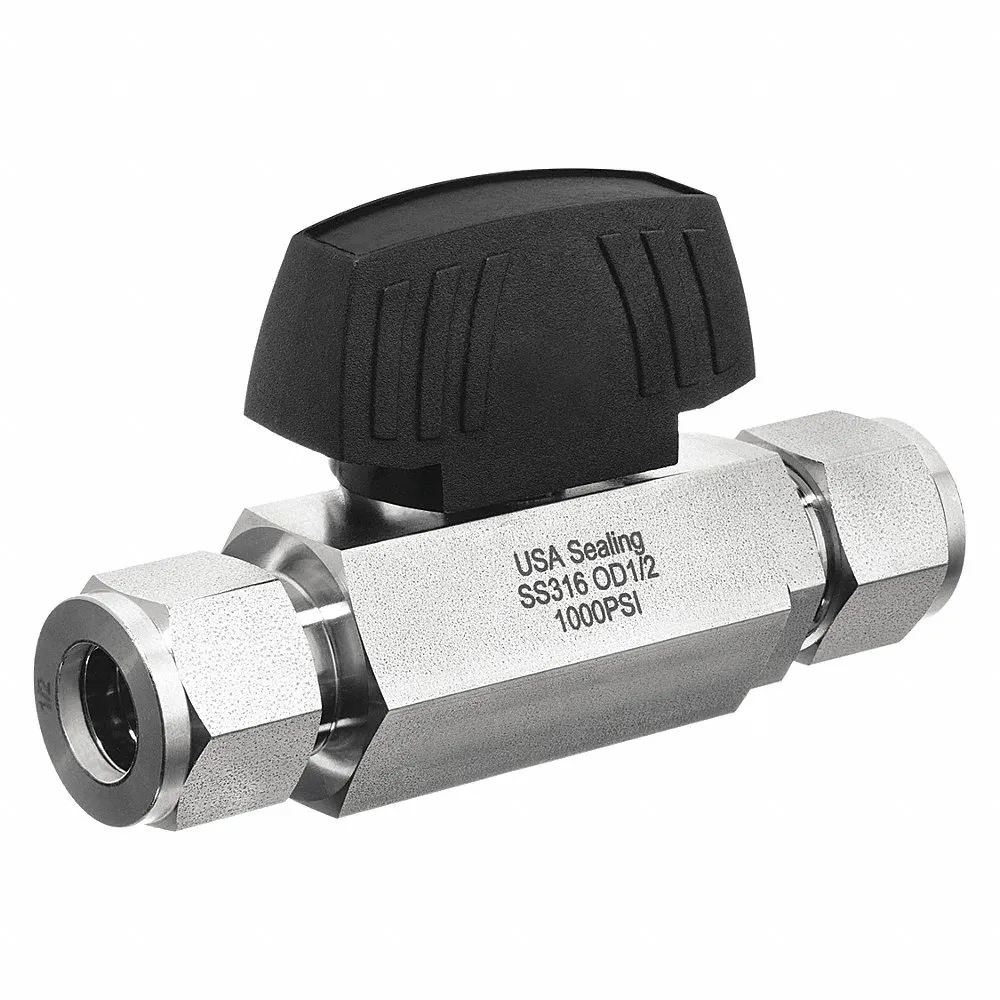

USA SEALING ZUSA-VLV-83 Ball Valve, 1/4 Inch Pipe, 1/2 Inch Tube, 1, 500 PSI CWP, -65-300 Deg F
Item: CU7FQAModel: ZUSA-VLV-83Cross Ref: 56DK34
7 In Stock
Ships within 2 days via
10.00% off
€315.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Standard Port |
| Body Material | Stainless Steel |
| Body Seal Material | PTFE |
| Body Style | Two Way |
| Coefficient Of Volume (cv) | 6.25 |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | Compression |
| Connection Type - Side 1 | Compression |
| Connection Type - Side 2 | Compression |
| For Media | Water |
| Handle | Wedge |
| Handle - Locking | Non Locking |
| Handle Color | Black |
| Handle Material | Nylon |
| Handle Type | Wedge |
| Max. Media Temperature | 300°F |
| Max. Pressure | 1500 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 1500 psi |
| Max. Pressure (steam) | 1000 psi |
| Media Temperature Range | -65°F to +300°F |
| Min. Media Temperature | -65°F |
| Nominal Valve Size | 1/4" |
| Overall Length | 3.5" |
| Pipe Size | 1/4" |
| Port | Standard |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Standards | Api 598 |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | One Piece |
| Temp. Range | -65°F to +300°F |
| Tube Size | 1/2" |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Structure | Two Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Stem Material | Body Material | Connection Type | Seat Material | Max. Pressure | Seal Material | Handle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZUSA-VLV-29 | Stainless Steel | Stainless Steel | FNPT | PTFE | 1000 psi | PTFE | Locking Lever | 3.29" | €156.76 | |
 |
ZUSA-VLV-7 | Stainless Steel | Stainless Steel | FNPT | PTFE | 1000 psi | PTFE | Locking Lever | 4.57" | €374.45 | |
 |
ZUSA-VLV-50 | Stainless Steel | Stainless Steel | FNPT | RPTFE | 2000 psi | RPTFE | Locking Lever | 6.85" | €225.59 | |
 |
ZUSA-VLV-57 | Stainless Steel | Stainless Steel | FNPT | RPTFE | 2000 psi | RPTFE | Locking Lever | 4.25" | €356.71 | |
|
ZUSA-VLV-27 | Stainless Steel | Stainless Steel | FNPT | PTFE | 1000 psi | PTFE | Locking Lever | 2.81" | €93.59 | |
|
ZUSA-VLV-49 | Stainless Steel | Stainless Steel | FNPT | RPTFE | 2000 psi | RPTFE | Locking Lever | 5.55" | €124.02 | |
|
ZUSA-VLV-56 | Stainless Steel | Stainless Steel | FNPT | RPTFE | 2000 psi | RPTFE | Locking Lever | 3.3" | €159.76 |
