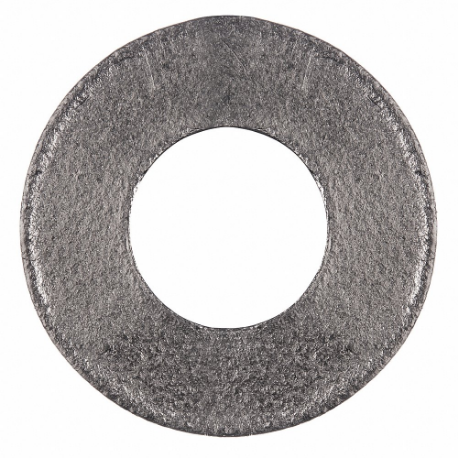

USA SEALING BULK-FG-894 Flange Gasket, 1 1/2 Inch Pipe Size, 3 3/8 Inch Outside Dia, 1 29/32 Inch Inside Dia
Item: CU7GXNModel: BULK-FG-894Cross Ref: 742J21
7 In Stock
Ships within 2 days via
13.00% off
€5.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Gasket |
| Binder Material | None |
| Bolt Holes | 0 |
| Color | Gray |
| Fda Approved | No |
| Flange Class | Class 150 |
| For Flange Ansi Class | Class 150 |
| Gasket Material | Graphite |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Included Mounting Hardware | No |
| Insert Grade | Grade 316 |
| Insert Material | Stainless Steel |
| Inside Dia. | 1 29/32" , 1.906" |
| Material | Flexible Graphite |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 975°F |
| Metal Detectable | No |
| Min. Operating Temp. | -400°F |
| Outside Dia. | 3 3/8" |
| Pipe Size | 1 1/2" |
| Reinforced | Yes |
| Resistance Properties | Chemical Resistant, Temperature Resistant |
| Temp. | -400°C to +975°C |
| Thickness | 1/8" |
| Type | Ring |
| X-ray Detectable | X Ray Non Detectable |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
