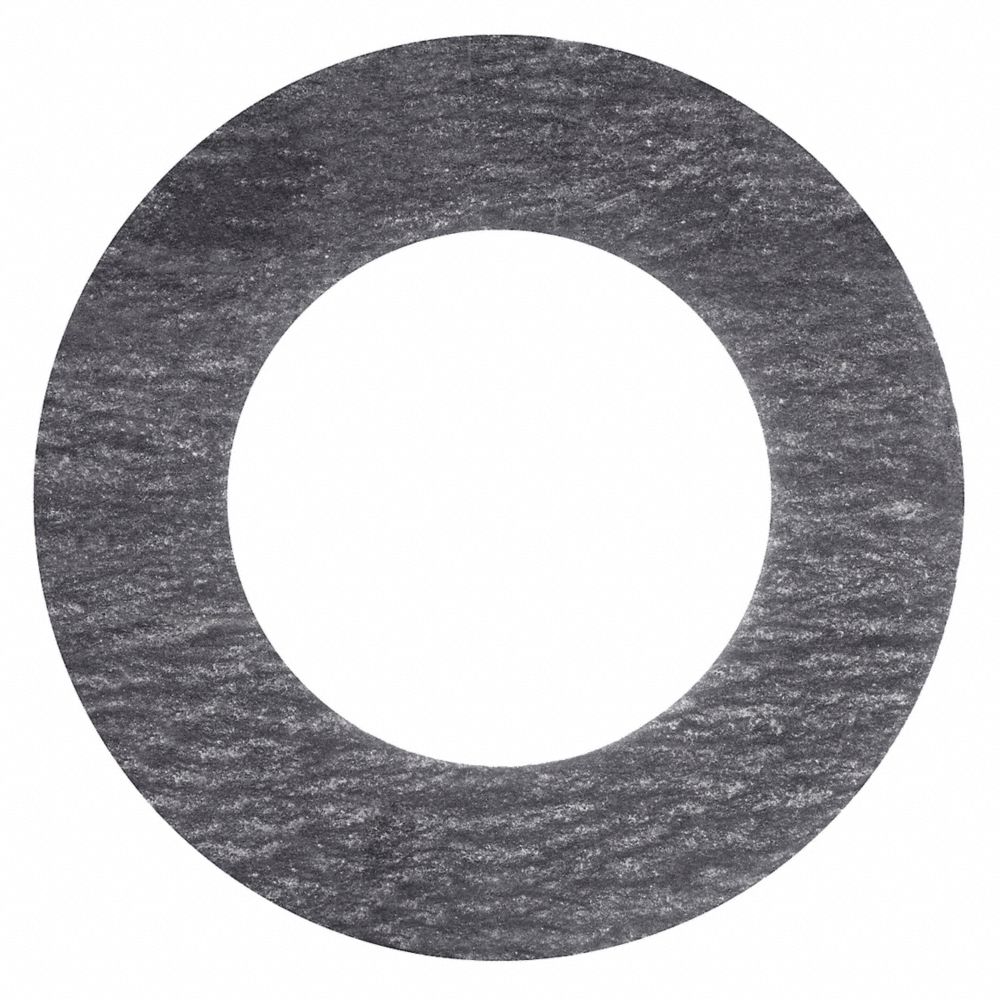

USA SEALING BULK-FG-5013 Aramid Fiber with EPDM Binder Flange Gasket, 2-1/4 Inch Outside Diameter
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€0.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Gasket |
| Backing Type | Plain |
| Binder Material | EPDM |
| Color | Gray |
| Fda Approved | No |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Steam, Water |
| Gasket Material | Aramid |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Included Mounting Hardware | No |
| Inside Dia. | 1 1/16" , 1.062" |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 390°F |
| Metal Detectable | No |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 2 1/4" |
| Pipe Size | 3/4" |
| Reinforced | No |
| Resistance Properties | Chemical Resistant, Steam Resistant, Water Resistant |
| Thickness | 1/16" |
| Type | Ring |
| X-ray Detectable | X Ray Non Detectable |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Country of Origin | CN |
Product Variants
| Model | Type | Thickness | Max. Operating Pressure | For Flange Ansi Class | Gasket Type | Reinforced | Bolt Holes | Bolt Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BULK-FG-5047 | Ring | 1/16" | 300 psi | Class 300 | Ring Gasket | No | - | - | €11.83 | |
| BULK-FG-5093 | Ring | 1/8" | 300 psi | Class 300 | Ring Gasket | No | - | - | €45.36 | |

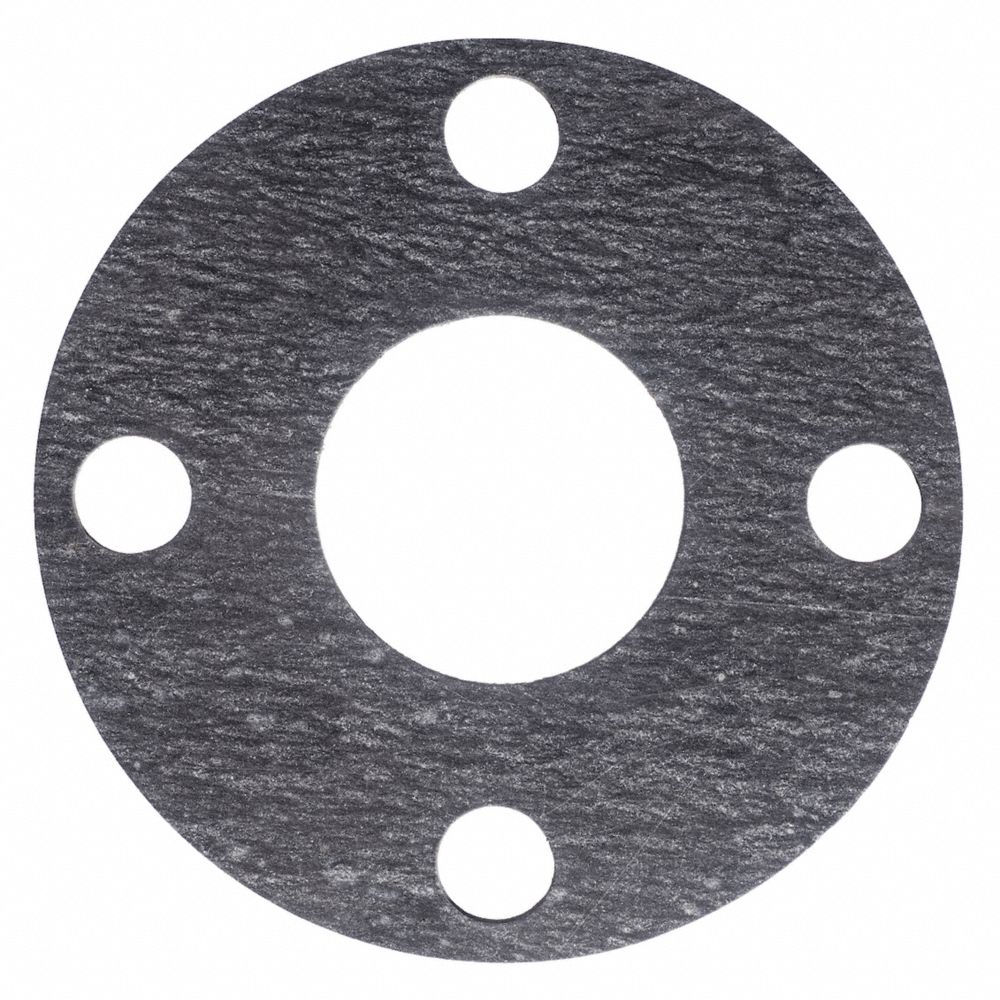

| BULK-FG-4929 | Full Face | 1/16" | 150 psi | Class 150 | Full Face Gasket | Yes | 8 | 3/4" | €10.95 | |
| BULK-FG-4975 | Full Face | 1/8" | 150 psi | Class 150 | Full Face Gasket | Yes | 8 | 3/4" | €21.45 | |
| BULK-FG-5024 | Ring | 1/16" | 150 psi | Class 150 | Ring Gasket | No | - | - | €9.89 | |
| BULK-FG-5070 | Ring | 1/8" | 150 psi | Class 150 | Ring Gasket | No | - | - | €18.37 | |
| BULK-FG-4950 | Full Face | 1/16" | 300 psi | Class 300 | Full Face Gasket | Yes | 8 | 7/8" | €9.55 |
