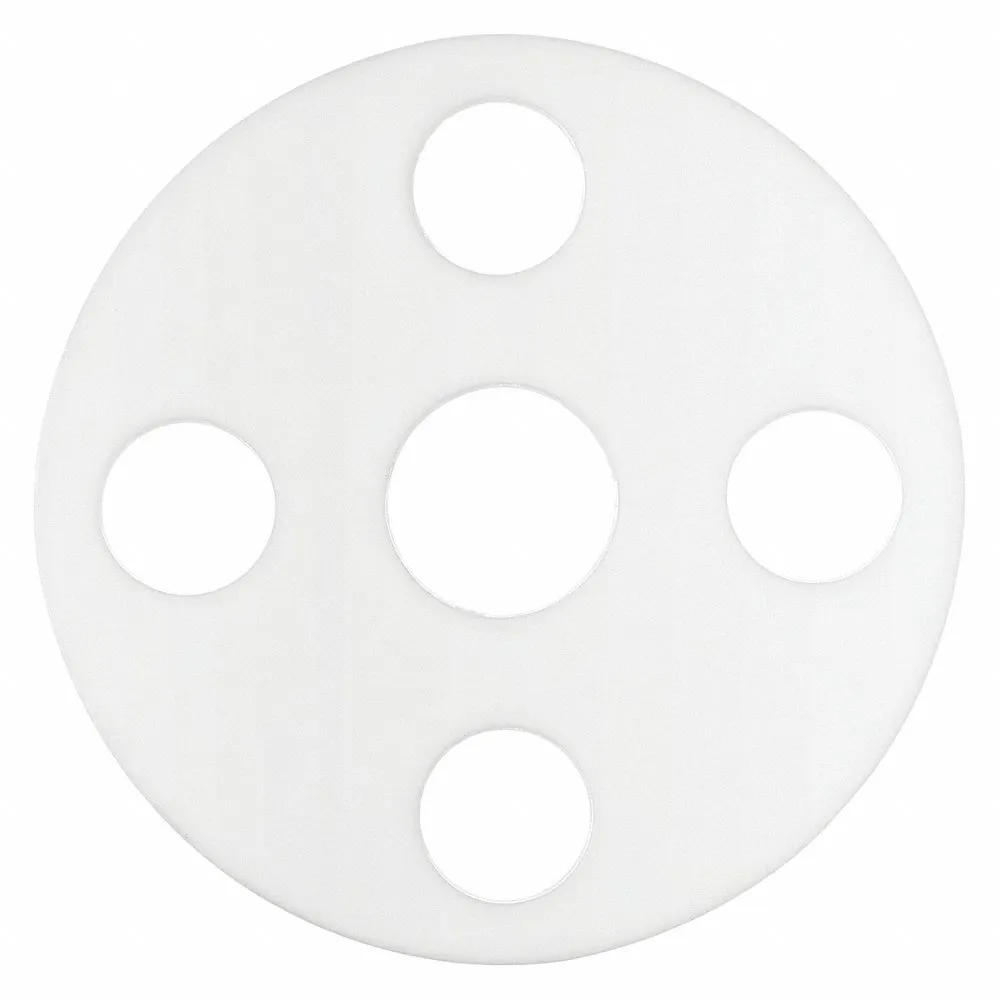

USA SEALING BULK-FG-1147 Flange Gasket, 1 1/2 Inch Pipe Size, 5 Inch Outside Dia, 1 7/8 Inch Inside Dia, White
Item: CU7GZBModel: BULK-FG-1147Cross Ref: 742J30
7 In Stock
Ships within 2 days via
13.00% off
€17.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Gasket |
| Binder Material | None |
| Bolt Circle Dia. | 3 7/8" |
| Bolt Hole Dia. | 5/8" |
| Bolt Holes | 4 |
| Color | White |
| Fda Approved | Yes |
| Flange Class | Class 150 |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Chemical |
| Gasket Material | PTFE |
| Gasket Type | Full Face Gasket |
| Hardness | Not Rated |
| Included Mounting Hardware | No |
| Inside Dia. | 1 15/16" , 1 7/8" |
| Material | PTFE Plastic |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 500°F |
| Metal Detectable | No |
| Min. Operating Temp. | -450°F |
| No. Of Bolt Holes | 4 |
| Outside Dia. | 5" |
| Pipe Size | 1 1/2" |
| Reinforced | No |
| Reinforcement Material | Not Available |
| Temp. | -450°C to +500°C |
| Thickness | 1/16" |
| Type | Full Face |
| X-ray Detectable | X Ray Non Detectable |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Thickness | Type | Temp. | Min. Operating Temp. | Max. Operating Temp. | Max. Operating Pressure | Binder Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZUSA-RES-53 | White | 1/4" | - | - | - | - | - | - | €54.17 | |
 |
ZUSA-RES-33 | White | 3/4" | - | - | - | - | - | - | €78.48 | |
 |
ZUSA-RES-157 | White | 3/4" | - | - | - | - | - | - | €77.45 | |
|
ZUSA-RES-15 | White | - | - | 1380°F | - | - | - | - | €78.28 | |
|
ZUSA-RES-65 | White | 3/8" | - | - | - | - | - | - | €318.26 | |
 |
ZUSA-RES-102 | White | 3/8" | - | - | - | - | - | - | €52.19 | |
|
ZUSA-RES-72 | White | 1/2" | - | - | - | - | - | - | €62.90 |
