USA SEALING BULK-FG-1012 Graphite with Stainless Steel Insert Flange Gasket, 8-1/4 Inch Outside Diameter
Get it by Friday, Aug 21
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€17.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Gasket |
| Binder Material | None |
| Bolt Circle Dia. | 6 5/8" |
| Bolt Hole Dia. | 7/8" |
| Bolt Holes | 8 |
| Color | Gray |
| Fda Approved | No |
| Features | Reinforced With A Stainless Steel Insert For Stability |
| For Flange Ansi Class | Class 300 |
| Gasket Material | Graphite |
| Gasket Type | Full Face Gasket |
| Hardness | Not Rated |
| Included Mounting Hardware | No |
| Insert Material | 316 Stainless Steel |
| Inside Dia. | 3 1/2" |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 975°F |
| Metal Detectable | No |
| Min. Operating Temp. | -400°F |
| Outside Dia. | 8 1/4" |
| Pipe Size | 3" |
| Reinforced | Yes |
| Resistance Properties | Chemical Resistant, Heat Resistant |
| Thickness | 1/16" |
| Type | Full Face |
| X-ray Detectable | X Ray Non Detectable |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Country of Origin | CN |
Product Variants
| Model | Type | Thickness | Max. Operating Pressure | For Flange Ansi Class | Gasket Type | Bolt Holes | Bolt Hole Dia. | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

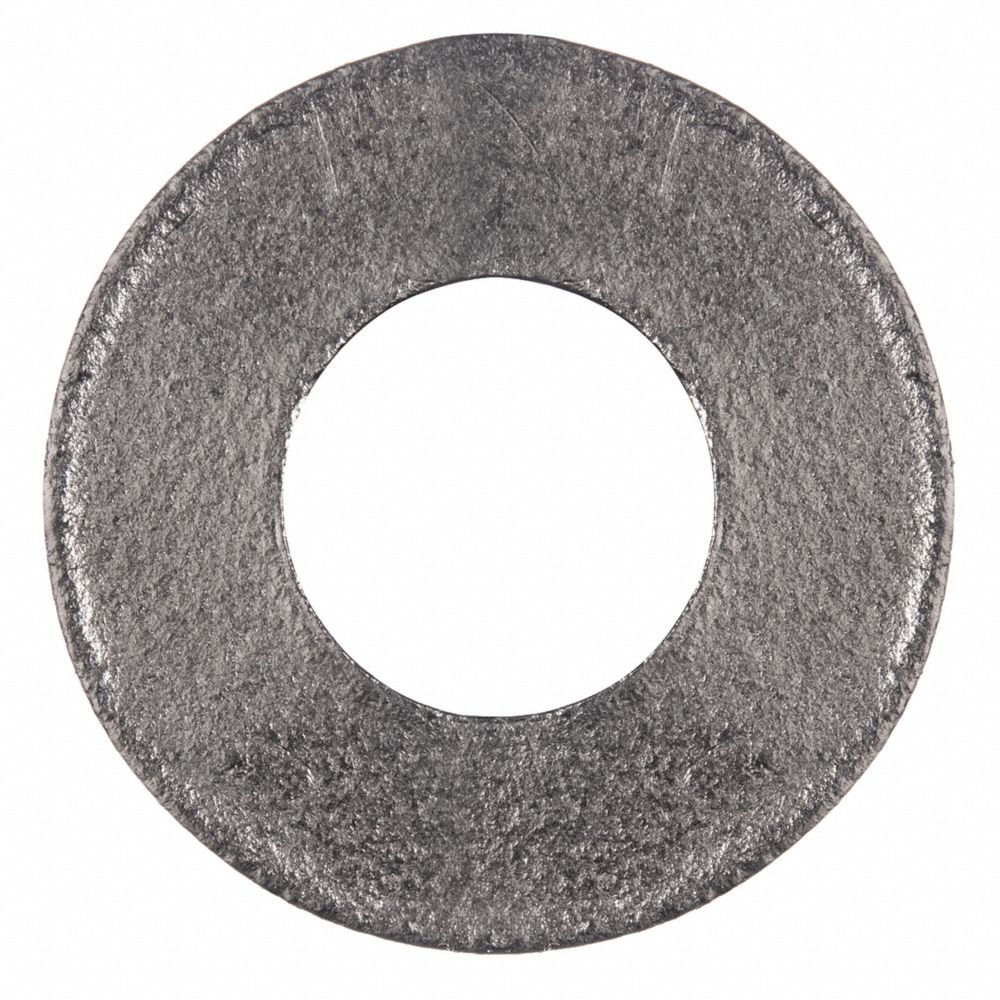

| BULK-FG-925 | Ring | 1/16" | 300 psi | Class 300 | Ring Gasket | - | - | - | €27.22 | |
| BULK-FG-948 | Ring | - | 300 psi | Class 300 | Ring Gasket | - | - | - | €39.00 | |

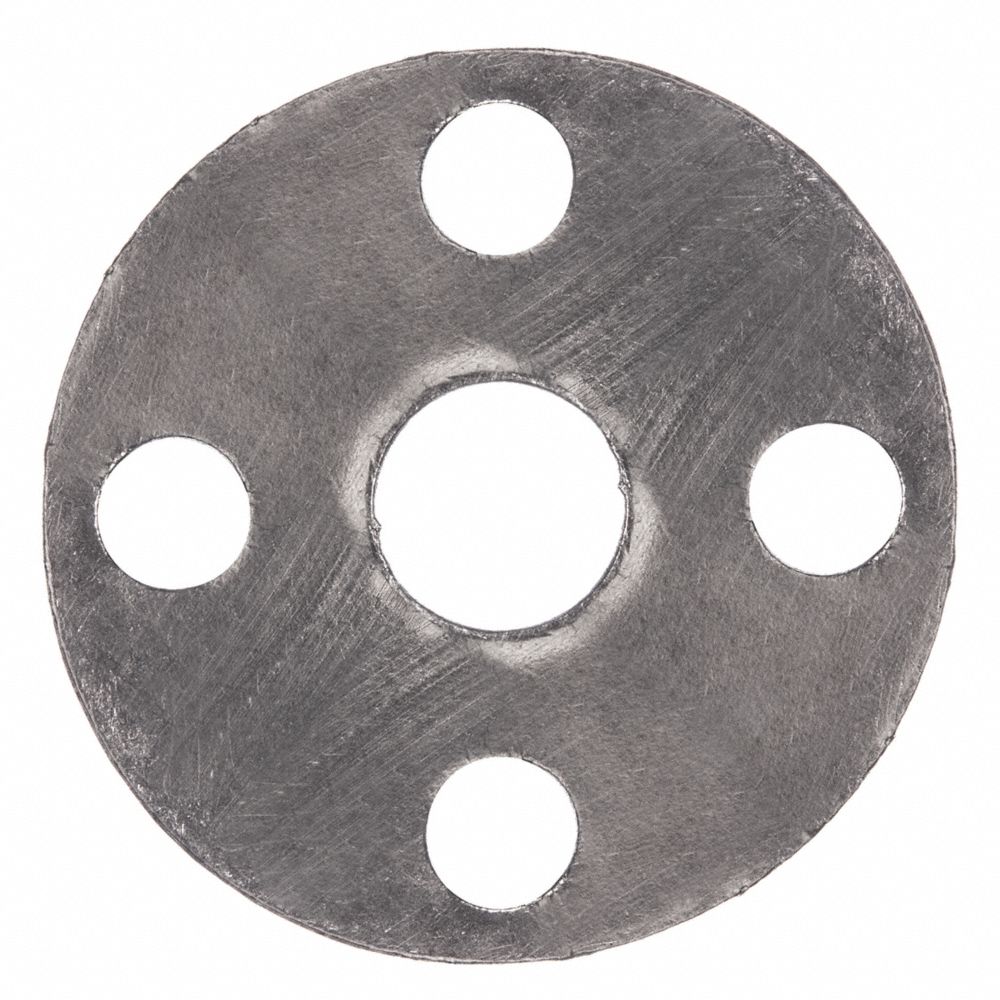

| BULK-FG-991 | Full Face | 1/8" | 150 psi | Class 150 | Full Face Gasket | 8 | 3/4" | 7 1/2" | €34.63 | |
| BULK-FG-1035 | Full Face | 1/8" | 300 psi | Class 300 | Full Face Gasket | 8 | 7/8" | 6 5/8" | €29.18 | |
| BULK-FG-922 | Ring | 1/16" | 300 psi | Class 300 | Ring Gasket | - | - | - | €14.50 | |
| BULK-FG-945 | Ring | 1/8" | 300 psi | Class 300 | Ring Gasket | - | - | - | €20.67 | |
| BULK-FG-989 | Full Face | 1/8" | - | - | - | 4 | - | - | €24.20 |
