U.S. MOTORS X2P1B Hazardous Location Motor, 1 D/2 F, G, 2 HP, 3500 Nameplate RPM, 230/460 VAC
Get it by Monday, Dec 22
10.00% off
€1,234.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Sealed |
| Conduit Box Location | Exterior |
| Efficiency | 85.5% |
| Frame | 145T |
| Frame Material | Cast Iron |
| Full Load Amps | 4.9/2.4A |
| Hazardous Location Class | 1 D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 2 hp |
| Hz | 60 Hz |
| Includes | Cast Iron End Brackets, Conduit Box |
| Insulation Class | Class F |
| Length Less Shaft | 10 5/8" |
| Manufacturers Warranty Length | 36 Months |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Sealed |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3500 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 12 7/8" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 75 lbs. |
Shipping Info:
| Ship weight (kg) | 33.75 |
Product Variants
| Product | Model | Voltage | Phase | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
286TTGCD16577 | - | - | - | - | - | - | - | - | €7,338.25 | |
 |
215TTFCD6527 | 230/460V AC | 3 | 1762 RPM | 10 hp | 25/12.5A | Rigid Base | 1.15 | Three Phase | €2,477.71 | |
 |
056T17G15612 | 230/460V AC | 3 | 1725 RPM | 1 hp | 3.2/1.6A | Face/Base | 1 | Three Phase | €1,148.28 | |
 |
215TTGCD6528 | 190/230/380/460V | 3 | 1765 RPM | 10 hp, 10 hp, 7 1/2 hp | 26.6/13.3A | Rigid Base | 1 | Three Phase | €2,909.41 | |
 |
182TTGCD6541 | 190/230/380/460V | 3 | 1765 RPM | 3 hp, 3 hp, 2 hp | 8/4A | Rigid Base | 1 | Three Phase | €1,781.17 | |
 |
184TTGCD6544 | 230/460V AC | 3 | 1755 RPM | 5 hp | 12.4/6.2A | Rigid Base | 1.15 | Three Phase | €1,832.29 | |
 |

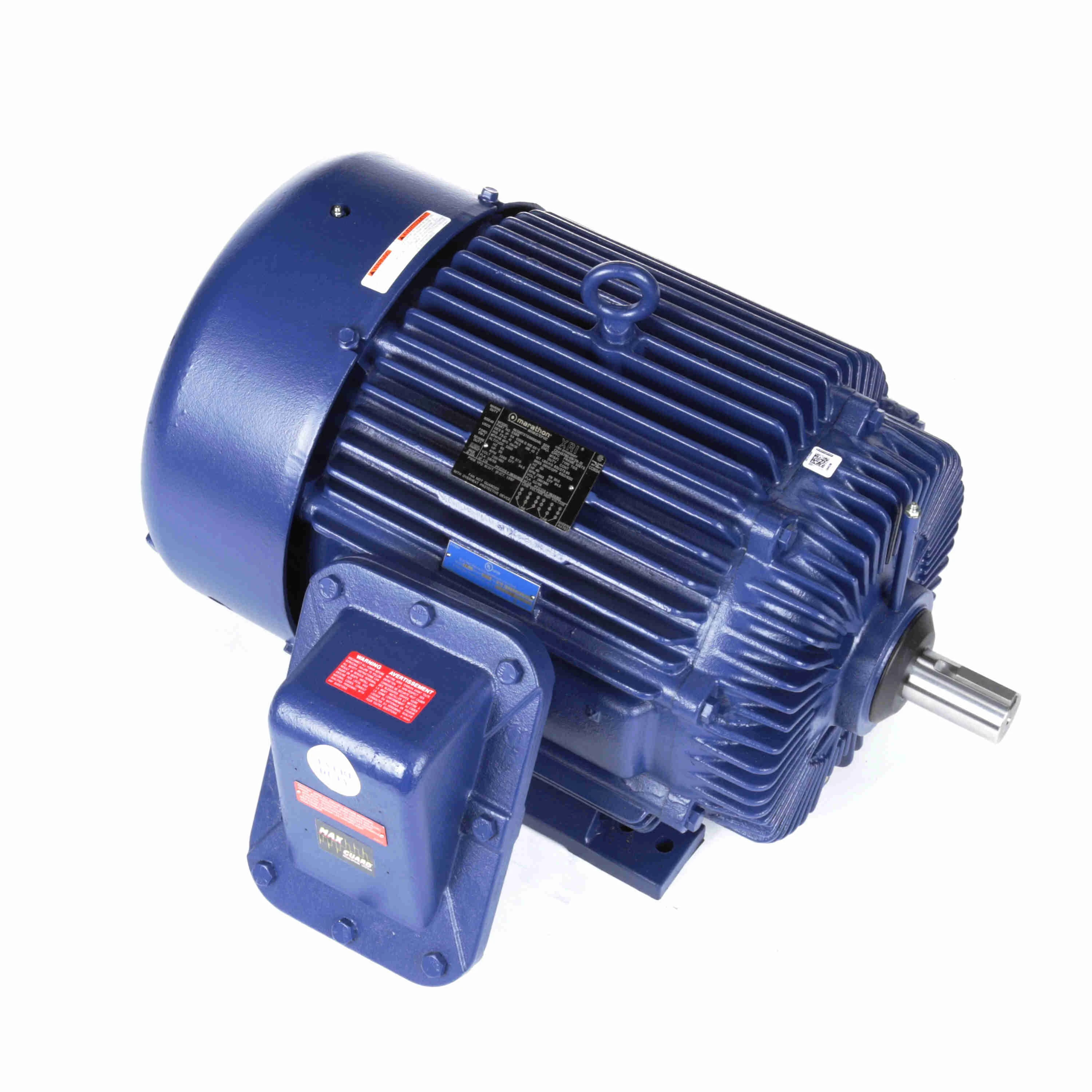

326TSTGS6501 | 230/460V AC | 3 | 3555 RPM | 50 hp | 118/59A | Rigid Base | 1.15 | Three Phase | €12,134.84 |
