U.S. MOTORS D13CPA2Z4 General Purpose Motor, Open Air-Over, Rigid Base Mount, 1/3 HP, 1725 Nameplate RPM
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€660.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC030A |
| Duty Cycle | Continuous |
| Efficiency | 74.7% |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.8/1.9A |
| Hp | 1/3 hp |
| Inverter Rated | No |
| Motor Application | General Application |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Overall Length | 9 1/8" |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 110/220/115/230V AC |
Shipping Info:
| Ship weight (kg) | 7.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Full Load Amps | Service Factor | Hp | Frequency | Mounting Type | Motor Enclosure Design | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D32C2J149 | 115/208-230V AC | 19.2/10-9.6A | 1.15 | 1 1/2 hp | 60 Hz | Cradle Base | Open Air Over | 145T | €741.50 | |
 |

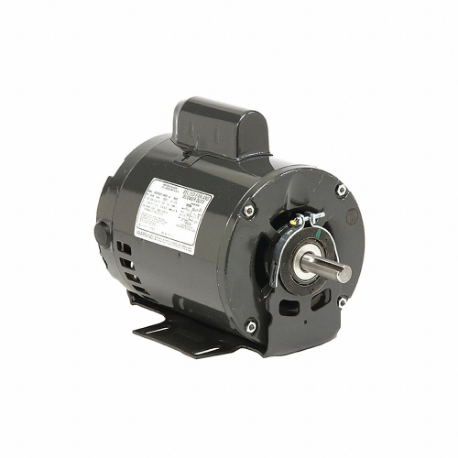

D13CPA2P9 | 115/230V AC | 3.8/1.9A | 1.35 | 1/3 hp | 60 Hz | Cradle Base | Open Air Over | 56 | €448.88 | |
 |
D1CPM2PH | 115/230V AC | 8.8/4.4A | 1.15 | 1 hp | 60 Hz | Rigid Base | Open Air Over | 56H | €962.70 | |
 |

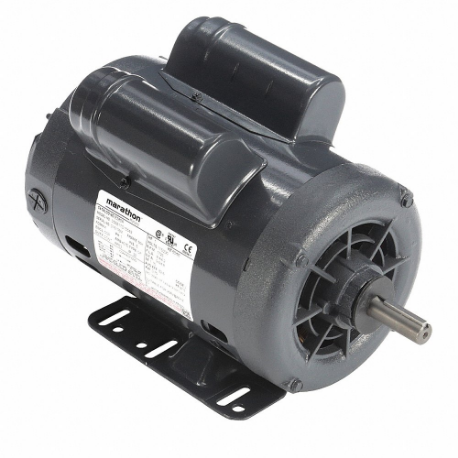

D1CP2PH | 115/230V AC | 8.8/4.4A | 1.15 | 1 hp | 60 Hz | Rigid Base | Open Dripproof | 56H | €808.73 | |
 |

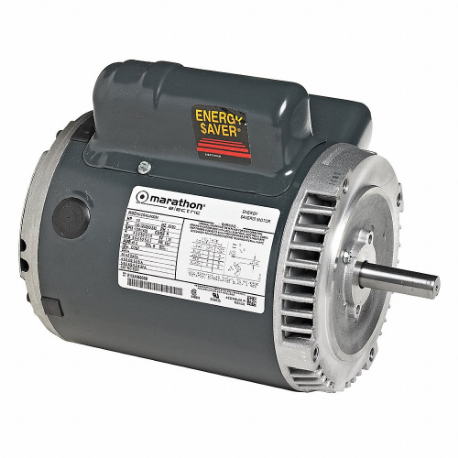

D1CP1PHC | 115/230V AC | 9.3/4.3A | 1.25 | 1 hp | 60 Hz | Rigid Base | Open Dripproof | 56 | €622.03 | |
|
D1CP1PH | 115/230V AC | 9.3/4.3A | 1.25 | 1 hp | 60 Hz | - | - | 56H | €773.35 | |
 |

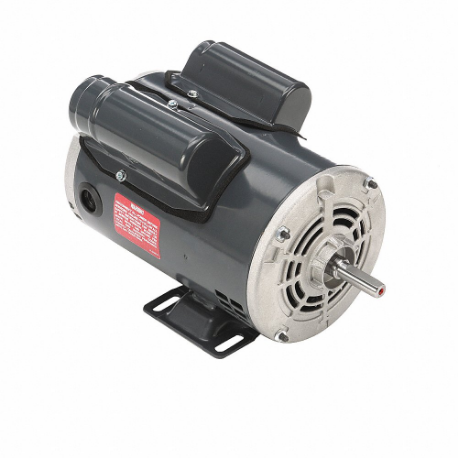

D12CP2P4 | 115/230V AC | 5/2.6A | 1.25 | 1/2 hp | 60 Hz | Rigid Base | Open Air Over | 48 | €686.57 |
