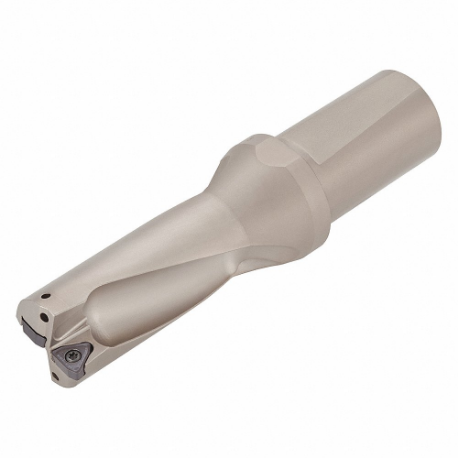

TUNGALOY 6985617 Indexable Insert Drill, 1-7/16 Inch Max. Drill Dia, 2Xd, 1-1/2 Inch Shank Dia
Item: CU7CYLModel: 6985617Cross Ref: 38UD44
7 In Stock
Ships within 2 days via
10.00% off
€1,009.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Insert Drill |
| Ansi Number | TDSU1437-02 |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Depth X Dia. Ratio | 2xd |
| Flanged Shank | Yes |
| Flute Length | 2.925" |
| Max. Drill Dia. | 1 7/16" |
| Max. Drilling Depth | 2.925" |
| Mounting Style | Screw |
| No. Of Inserts Required | 2 |
| Number Of Coolant Holes | 2 |
| Number Of Inserts | 2 |
| Overall Length | 7.288" |
| Shank Dia. | 1 1/2" |
| Shank Length | 2.688" |
| Shank Type | Whistle Notch |
| Spiral Direction | Right Hand |
| Toolholder Style | TDSU |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Ansi Number | Overall Length | Flute Length | Max. Drilling Depth | Iso Number | Mounting Style | Shank Dia. | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6985624 | TDSU1875-02 | 8.62" | 3.821" | 3.821" | TDSU1875-02 | Screw | 1 1/2" | 2.688" | €1,272.02 |
