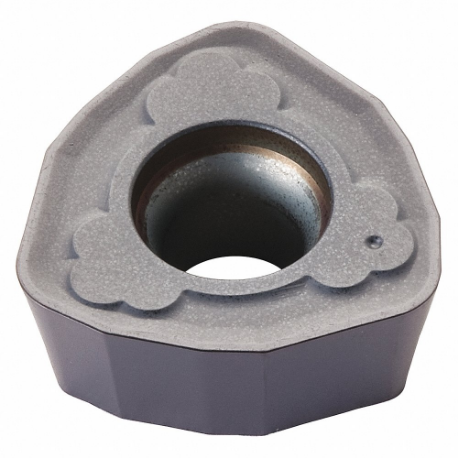

TUNGALOY 6821768 Trigon Milling Insert, 0.508 Inch Inscribed Circle, 1.50 mm Corner Radius
Item: CU7DANModel: 6821768Cross Ref: 38UE85
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Chip-breaker | Yes |
| Chip-breaker Code | ML |
| Chip-breaker Style | On One Side |
| Clearance Angle | 11° |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 1.5 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Medium Cutting |
| Cutting Depth | 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8 mm |
| Finish | TiAl |
| Finish - Machining | TiAl |
| For Toolholder | EXP05075RLU, EXP05075RSU, EXP09200RLU, EXP09200RU |
| For Use With | High-Feed Milling |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 80° |
| Inscribed Circle | 0.508" |
| Insert Holding Type | Screw On |
| Insert Size | 80615 |
| Insert Style | WPMT |
| Iso Number | WPMT080615ZPR-ML AH120 |
| Lead Angle | 10° |
| Manufacturer Grade | Grade AH120 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Hole Dia. | 0.217" |
| Mounting Style | Screw On |
| Number Of Cutting Edges | 3 |
| Primary Material Application | Cast Iron, Nickel, Steel, Titanium |
| Primary Material Application Iso Code | K, P, S |
| Rake | Positive |
| Shape | Trigon |
| Style | WPMT |
| System Of Measurement | Metric |
| Thickness | 1/4" |
| Width | 0.507" |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Corner Radius | Thickness | Iso Number | Chip-breaker | Coating | Insert Size | Cutting Edge Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

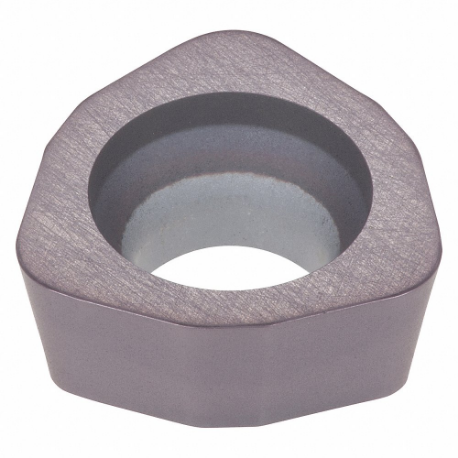

6817327 | 0.313" | 1.5 mm | 0.138" | - | No | PVD | 05H315 | 5 mm | €24.42 | |
 |

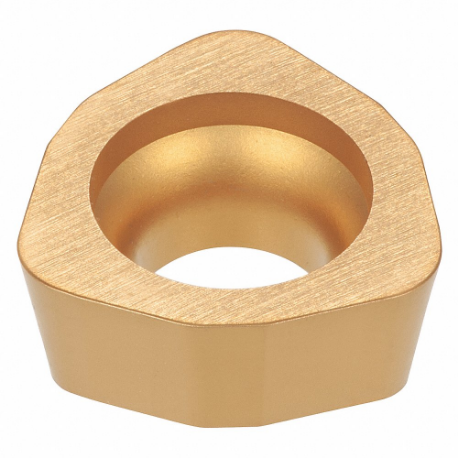

6853869 | 0.313" | 1.5 mm | 0.138" | WPMW05H315ZPR T3130 | No | Chemical vapor deposition | 05H315 | 5 mm | €24.42 | |
|
6820779 | 0.313" | 1.5 mm | 0.138" | WPMW05H315ZPR AH140 | No | PVD | 05H315 | 5 mm | €24.42 | |
|
6821765 | 0.374" | 1.5 mm | 0.165" | - | Yes | PVD | 06X415 | 6 mm | €24.42 | |
 |

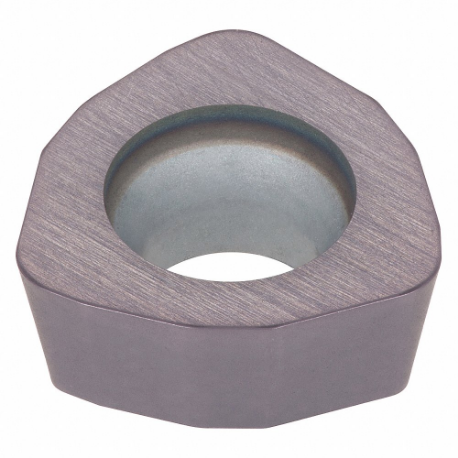

6820780 | 0.374" | 1.5 mm | 0.165" | WPMW06X415ZPR AH140 | No | PVD | 06X415 | 6 mm | €24.42 | |
 |

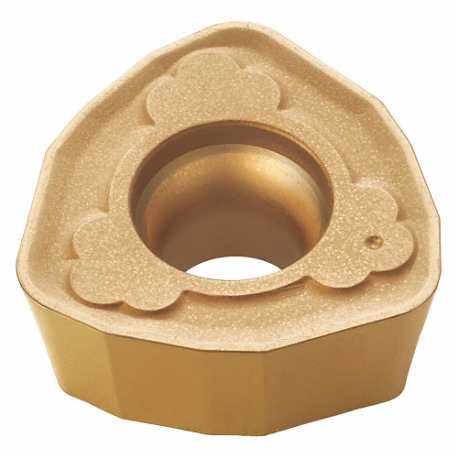

6853865 | 0.508" | 1.5 mm | 1/4" | - | Yes | Chemical vapor deposition | 80615 | 8 mm | €28.27 | |
|
6853867 | 0.591" | 2.5 mm | 0.276" | WPMT090725ZPR-ML T3130 | Yes | Chemical vapor deposition | 90725 | 9 mm | €31.13 |
