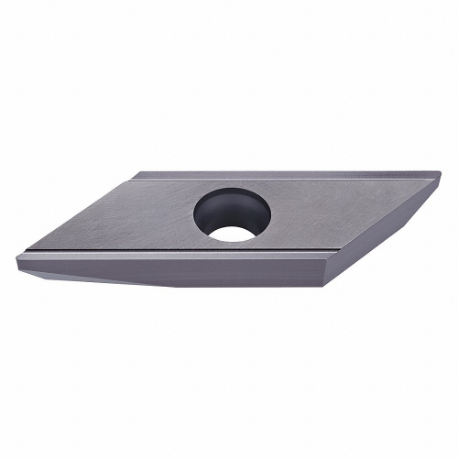

TUNGALOY 6811536 Parallelogram Milling Insert, 0.500 Inch Inscribed Circle, 1.50 mm Corner Radius
Item: CU7CZCModel: 6811536Cross Ref: 38UE89
7 In Stock
Ships within 2 days via
10.00% off
€136.19 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Style | Single Sided |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 1.5 mm |
| Cutting Application | Medium |
| Cutting Depth | 1.5 mm |
| Cutting Direction | Neutral |
| Features | High Fracture Resistance |
| Finish - Machining | TiAlN |
| For Toolholder | ECC31005R-30, ECC31005R-45, ECC31005R-60, ECC31005RU-30, ECC31005RU-41, ECC31005RU-45, ECC31005RU-60 |
| For Use With | Multi Function |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Inscribed Circle | 1/2" |
| Insert Application | Medium |
| Insert Size | 310404 |
| Insert Style | Xcet |
| Iso Number | XCET310404ER AH330 |
| Manufacturer Grade | Grade AH330 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Hole Dia. | 0.217" |
| Mounting Style | Screw On |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | No |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Rake | Positive |
| Secondary Material Application | Cast Iron, Steel |
| Secondary Material Application Iso Code | K, P |
| Shape | Parallelogram |
| Stainless Compatibility | Yes |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 0.177" |
| Width | 9.53 mm |
| Workpiece Compatibility | Stainless Steel, Steel |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inscribed Circle | Thickness | Iso Number | Corner Radius | Insert Size | Mounting Hole Dia. | Coating | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6866629 | 0.264" | 0.146" | ASMT11T308PDPR-MJ AH725 | 0.4 mm | 11T308 | 0.114" | PVD | MJ | €27.39 | |
|
6822079 | 0.264" | 0.146" | ASMT11T308PDPR-MJ NS740 | 0.8 mm | 11T308 | 0.114" | - | MJ | €19.33 | |
|
ASMT11T308PDPR-MJ AH140 | 0.264" | 0.146" | ASMT11T308PDPR-MJ AH140 | 0.8 mm | 11T308 | 0.114" | PVD | MJ | €23.76 | |
 |
6818308 | 0.264" | 0.146" | ASMT170508PDPR-MS AH140 | 0.8 mm | 170508 | 0.173" | PVD | MS | €31.05 | |
|
6822078 | 0.264" | 0.146" | ASMT11T308PDPR-MJ AH120 | 0.8 mm | 11T308 | 0.114" | PVD | MJ | €27.02 | |
|
6854550 | 0.264" | 0.146" | ASMT11T308PDPR-MJ AH130 | 0.8 mm | 11T308 | 0.114" | PVD | MJ | €26.47 | |
 |
6863782 | 0.264" | 0.146" | ASMT11T308PDPR-MJ T1115 | 0.8 mm | 11T308 | 0.114" | Chemical vapor deposition | MJ | €20.90 |
