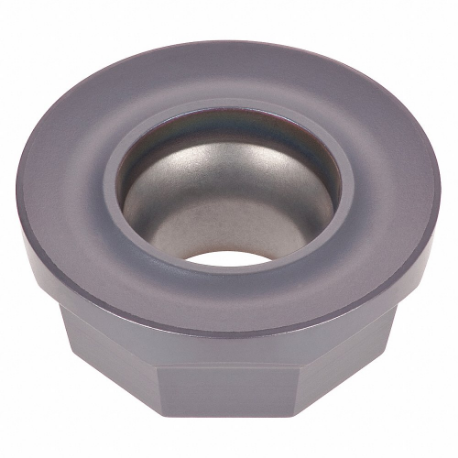

TUNGALOY 5812601 Round Milling Insert, 1/2 Inch Inscribed Circle, 0.189 Inch Thick, Chip-Breaker, Pvd
Item: CU7CZMModel: 5812601Cross Ref: 38UE71
7 In Stock
Ships within 2 days via
10.00% off
€29.31 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Style | On One Side |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Cutting Application | Milling |
| Cutting Depth | 6 mm |
| Cutting Direction | Neutral |
| Finish - Machining | TiAl |
| For Toolholder | ERC12R125U0125-03L, ERC12R125U0125-03LL, ERC12R125U0125-03LM, ERC12R125U0125W03, ERC12R125U150-03LL, ERC12R150U0125-04LM, ERC12R150U0125-04LX, ERC12R150U0125W04, ERC12R150U0150-04L, ERC12R150U0150-04LM, ERC12R150U0150-04LX, ERC12R150U0150W04, ERC12R150U150-04LL, ERC16R150U0125-02LL, ERC16R150U0125-02LM, ERC16R150U0125W02, ERC16R150U0150-02L, ERC16R150U0150-02LM, ERC16R150U0150-02LX, ERC16R150U0150W02, ERC16R150U150-02LL |
| For Use With | Roundsplit Cutter |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Inscribed Circle | 1/2" |
| Insert Application | Medium |
| Insert Size | 1204 |
| Insert Style | RCMT |
| Iso Number | RCMT1204EN-MJ AH120 |
| Manufacturer Grade | Grade AH120 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Hole Dia. | 0.181" |
| Mounting Style | Screw On |
| No. Of Edges | 4 |
| Non Ferrous (n) Compatibility | No |
| Primary Material Application | Cast Iron, Nickel, Titanium |
| Primary Material Application Iso Code | K, S |
| Rake | Positive |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shape | Round |
| Stainless Compatibility | No |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Metric |
| Thickness | 0.189" |
| Workpiece Compatibility | Steel |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Iso Number | Primary Material Application | Chip-breaker Code | Inscribed Circle | Thickness | No. Of Edges | Chip-breaker | Coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5812594 | RCMT1204EN-NMJ AH725 | Nickel, Steel, Titanium | NMJ | 1/2" | 0.189" | 4 | Yes | PVD | €32.12 | |
| 5812596 | RCMT1204EN-NMJ AH140 | Stainless Steel | - | 1/2" | 0.189" | 4 | Yes | PVD | €32.12 | |
| 5812595 | RCMT1204EN-NMJ AH120 | Cast Iron, Nickel, Titanium | - | 1/2" | 0.189" | 4 | Yes | PVD | €33.36 | |
| 5812600 | RCMT1204EN-MJ AH725 | Nickel, Steel, Titanium | MJ | 1/2" | 0.189" | 4 | Yes | PVD | €32.57 |
