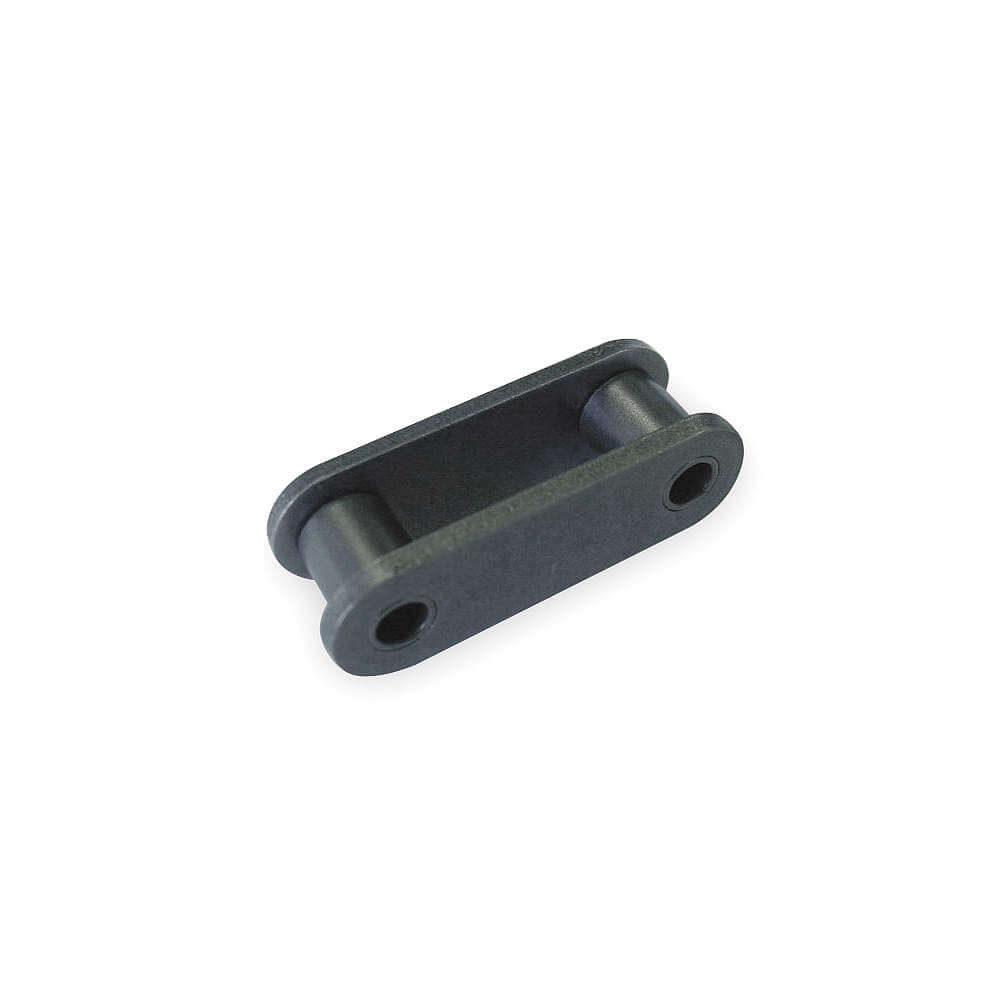

TSUBAKI C2120HRL Roller Link Double Pitch
Item: AB4JNJModel: C2120HRLCross Ref: 1YGL5
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2120H |
| Application | Baking, Bottling Equipment, Farming Implements, Material Handling Equipment, Packaging, Road Building Machinery, Textile Machinery |
| Chain Construction | Cottered Pin |
| Chain Link Overall Width | 2 6/25" |
| Chain Number | C2120 |
| Chain Overall Width | 2 17/64" |
| Chain Roller Dia. | 7/8" |
| Connecting End To Center Line | 1.21" |
| Display Qty | 1 |
| For Chain Material | Steel |
| For Chain Style (combined) | Yes |
| Heavy Series | Yes |
| Industry Chain Pitch | 3" |
| Inside Pin Dia. | 0.437" |
| Inside Width | 1" |
| Length | 2 1/2" |
| Link Type | Adding |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 5380 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Outside Pin Dia. | 0.437" |
| Overall Width | 2 6/25" |
| Pin Contruction | Cottered Pin |
| Pin Length | 2 6/25" |
| Pin Link Plate Thickness | 1.37" |
| Pin Outside Dia. | 7/16" |
| Pin Type | Cottered |
| Pitch | 3" |
| Pitch Type | Double Pitch |
| Plate Height | 1 23/64" |
| Plate Thickness | 7/32" |
| Rivet End To Center Line | 1.03" |
| Roller Chain Link Item | Roller Link |
| Roller Chain Link Type | Heavy Conveyor |
| Roller Chain Standard | ANSI |
| Roller Dia. | 7/8" |
| Roller Link Plate Height | 1.37" |
| Series | Conveyor Series |
| Tensile Strength | 34000 lbf. |
| Type | Double Pitch |
| Width Between Roller Link Plates | 1" |
| Working Load Limit | 5380 lbs. |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 5.69 |
| HS code | 7315190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Ansi Chain Size | Tensile Strength | Finish | Pitch | Roller Dia. | Temp. Range | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLK2RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €57.08 | |
 |
C2060HLSA1RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €41.52 | |
 |
C2060HLSA2RL | Steel | C2060HL | - | Black Oxide | 1 1/2" | 0.469" | - | 1.225" | €41.52 | |
 |
C2060HLSK1RL | Steel | C2060HL | 9040 lbs.-in. | Black Oxide | - | 0.469" | +14°F to +302°F | 1.225" | €57.08 | |
 |
C2060HSA1RL | Steel | C2060H | 9040 lbs.-in. | Plain | 1 1/2" | 0.469" | +15°F to +300°F | 1.225" | €22.77 | |
 |
C2060HSA2RL | Steel | C2060H | 9040 lbs.-in. | Plain | 1 1/2" | 0.469" | +15°F to +300°F | 1.225" | €22.77 | |
 |
C2060HSK1RL | Steel | C2060H | 9040 lbs.-in. | Plain | - | 0.469" | +15°F to +300°F | 1.225" | €30.07 |
