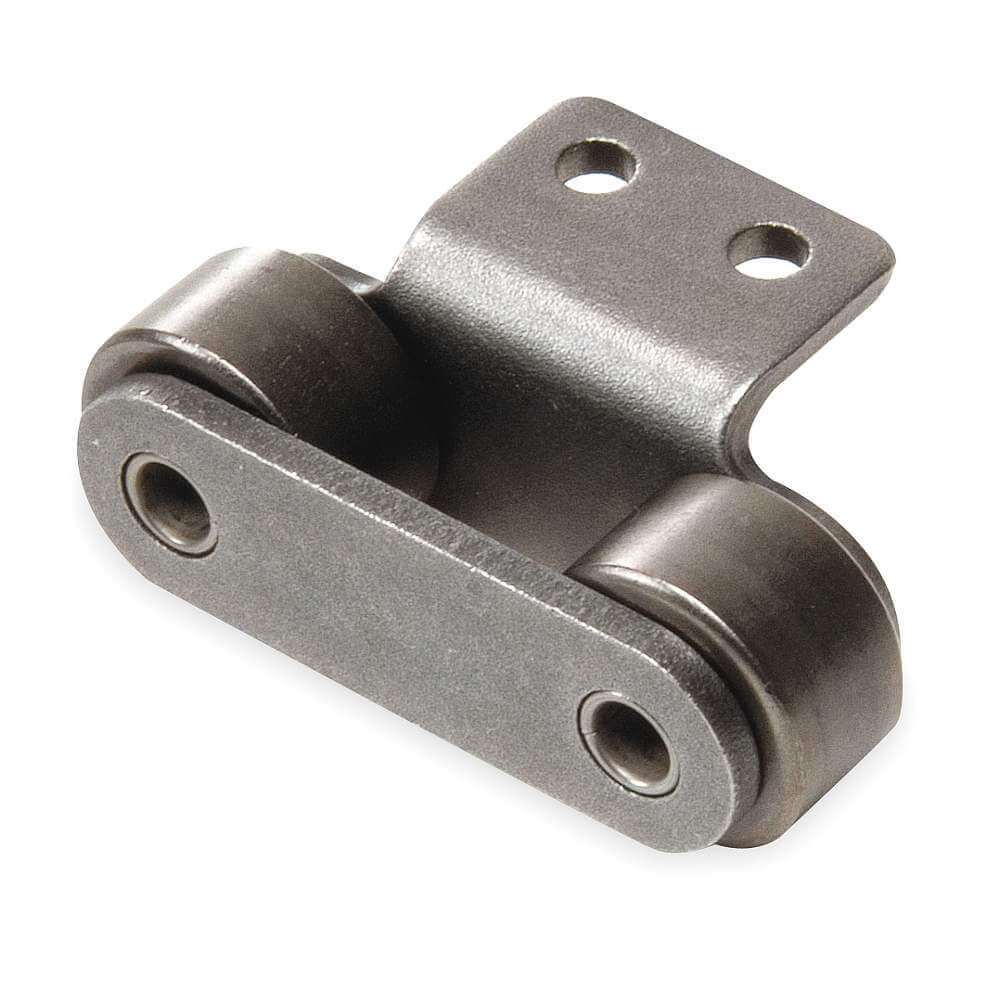

TSUBAKI C2082HA2RL Roller Link Double Pitch
Item: AB4JMJModel: C2082HA2RLCross Ref: 1YGH9
7 In Stock
Ships within 2 days via
13.00% off
€50.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2082H |
| Attachment Number | A-2 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.823" |
| Centerline To Hole Center | 18/25" |
| Chain Number | C2082H |
| Chain Overall Width | 1.543" |
| Connecting End To Center Line | 0.823" |
| Display Qty | 1 |
| Extended Pin Dia. | 0.312" |
| Finish | Plain |
| For Chain Style (combined) | Plain Steel |
| Inside Pin Dia. | 0.312" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 2400 lbs. |
| Max. Operating Temp. | 300°F |
| Min. Operating Temp. | 15°F |
| No. Of Tab Holes | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Width | 1.543" |
| Pin Contruction | Cottered Pin |
| Pin Length | 1.543" |
| Pin Link Plate Thickness | 0.906" |
| Pin Type | Cotter |
| Pitch | 2" |
| Plate Height | 0.906" |
| Plate Thickness | 0.625" |
| Rivet End To Center Line | 18/25" |
| Roller Dia. | 1 1/8" |
| Roller Link Plate Height | 0.906" |
| Temp. | +15°F to +300°F |
| Tensile Strength | 15400 lbs.-in. |
| Width Between Roller Link Plates | 5/8" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.92 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Roller Dia. | Overall Width | Plate Thickness | Plate Height | Chain Overall Width | Ansi Chain Size | Pin Link Plate Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLK2RL | Steel | 0.469" | 1.225" | 1/2" | 0.677" | 1.225" | C2060HL | 0.677" | €44.31 | |
 |
C2060HLSA1RL | Steel | 0.469" | 1.225" | 1/2" | 0.677" | 1.225" | C2060HL | 0.677" | €32.23 | |
 |
C2060HLSA2RL | Steel | 0.469" | 1.225" | 1/2" | 0.677" | 1.225" | C2060HL | 0.677" | €32.23 | |
 |
C2060HLSK1RL | Steel | 0.469" | 1.225" | 0.5" | 0.677" | 1.225" | C2060HL | 0.677" | €44.31 | |
 |
C2060HSA1RL | Steel | 0.469" | 1.225" | 0.5" | 0.677" | 1.225" | C2060H | 0.677" | €17.66 | |
 |
C2060HSA2RL | Steel | 0.469" | 1.225" | 0.5" | 0.677" | 1.225" | C2060H | 0.677" | €17.66 | |
 |
C2060HSK1RL | Steel | 0.469" | 1.225" | 0.5" | 0.677" | 1.225" | C2060H | 0.677" | €23.26 |
