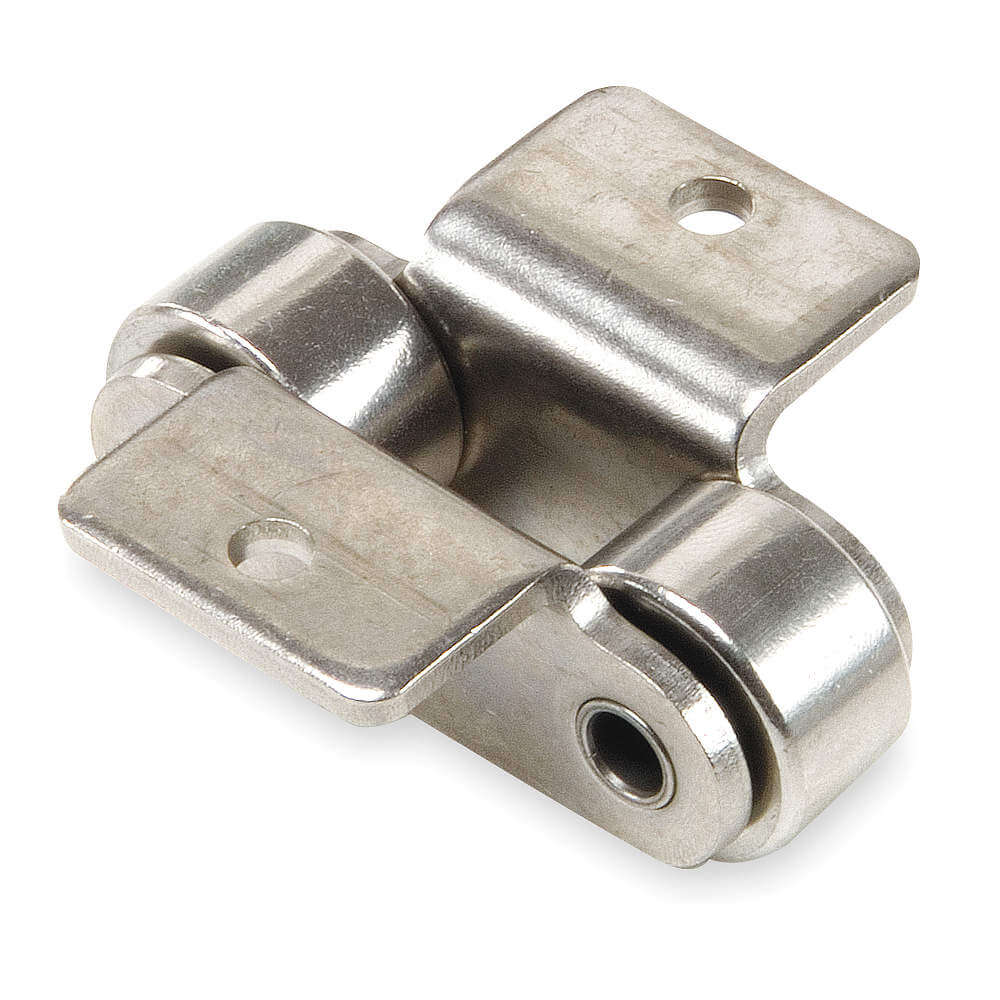

TSUBAKI C2052ASK1RL Roller Link K-1 Attachment
Item: AB4KYBModel: C2052ASK1RLCross Ref: 1YLV6
7 In Stock
Ships within 2 days via
10.00% off
€100.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2052AS |
| Attachment Location | Two Sides |
| Attachment Number | K-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.953" |
| Centerline To Hole Center | 0.626" |
| Chain Construction | Riveted Pin |
| Chain Number | C2052 |
| Chain Overall Width | 0.878" |
| Connecting End To Center Line | 0.469" |
| Display Qty | 1 |
| Finish | Plain |
| For Chain Material | Stainless Steel |
| For Chain Style (combined) | No |
| Heavy Series | No |
| Inside Pin Dia. | 1/5" |
| Inside Width | 3/8" |
| Length | 1 1/4" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Stainless Steel |
| Material Grade | Grade 600 |
| Max. Allowable Load | 231 lbs. |
| Maximum Operating Temperature | 750°F |
| Minimum Operating Temperature | -40°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 1/5" |
| Overall Width | 0.878" |
| Pin Contruction | Riveted Pin |
| Pin Length | 7/8" |
| Pin Link Plate Thickness | 2/25" |
| Pin Type | Riveted |
| Pitch Type | Double Pitch |
| Plate Height | 0.591" |
| Plate Thickness | 0.08" |
| Rivet End To Center Line | 0.406" |
| Roller Dia. | 3/4" |
| Roller Link Plate Height | 0.591" |
| Tab Hole Diameter | 0.205" |
| Tab Orientation | Horizontal Outward |
| Tab Width | 0.937" |
| Temp. Range | -40°F to +750°F |
| Width Between Roller Link Plates | 3/8" |
| Working Load Limit | 970 lbs. |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.23 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Tensile Strength | Pitch | Temp. Range | Inside Pin Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80K1RL | Steel | 80 | Plain | 5/8" | 15400 lbs. | 1" | - | 0.312" | €37.52 | |
 |
80LK1RL | Steel | 80L | Black Oxide | 5/8" | 17600 lbs.-in. | 1" | - | 0.312" | €78.40 | |
 |
80ASK1RL | Stainless Steel | 80AS | Plain | 5/8" | - | 1" | -40°F to +750°F | 0.312" | €128.10 | |
 |
80NPK1RL | Steel | 80NP | Nickel Plated | 5/8" | 15400 lbs.-in. | 1" | - | 0.312" | €60.25 | |
 |
C2040K1RL | Steel | C2040 | Plain | 0.312" | 3750 lbs.-in. | - | +15°F to +300°F | 0.156" | €16.64 | |
 |
C2040LK1RL | Steel | C2040L | Black Oxide | 0.312" | 3530 lbs.-in. | 1" | +14°F to +302°F | 0.156" | €30.26 | |
 |
C2040ASK1RL | Stainless Steel | C2040AS | Plain | 0.312" | - | - | -40°F to +750°F | 0.156" | €62.61 |
