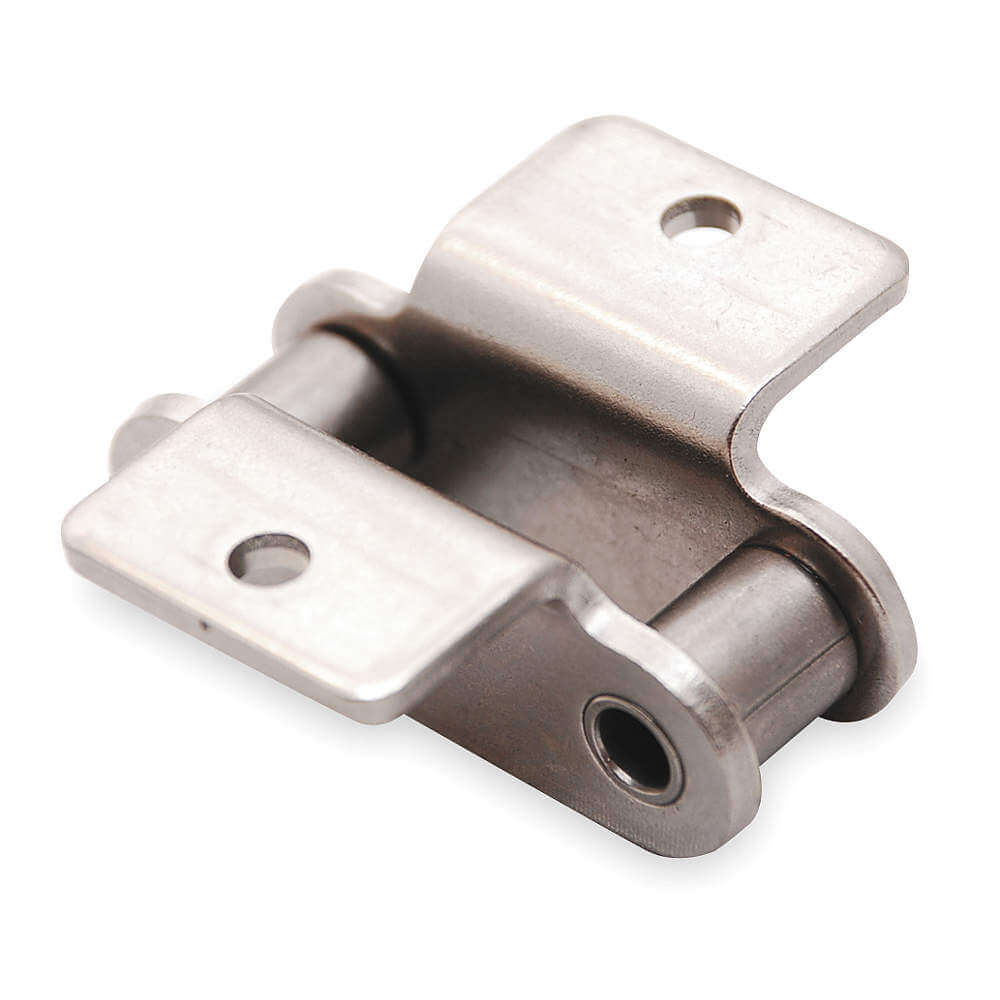

TSUBAKI C2040ASK1RL Roller Link K-1 Attachment
Item: AB4KTKModel: C2040ASK1RLCross Ref: 1YLE5
7 In Stock
Ships within 2 days via
10.00% off
€56.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2040AS |
| Attachment Location | Two Sides |
| Attachment Number | K-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.76" |
| Centerline To Hole Center | 1/2" |
| Chain Construction | Riveted Pin |
| Chain Number | C2040 |
| Chain Overall Width | 0.717" |
| Connecting End To Center Line | 0.38" |
| Display Qty | 1 |
| Finish | Plain |
| For Chain Material | Stainless Steel |
| For Chain Style (combined) | No |
| Heavy Series | No |
| Inside Pin Dia. | 0.156" |
| Inside Width | 19/64" |
| Length | 1" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Stainless Steel |
| Material Grade | Grade 600 |
| Max. Allowable Load | 150 lbs. |
| Maximum Operating Temperature | 750°F |
| Minimum Operating Temperature | -40°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.705" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch Type | Double Pitch |
| Plate Height | 0.472" |
| Plate Thickness | 0.06" |
| Rivet End To Center Line | 0.325" |
| Roller Dia. | 0.312" |
| Roller Diameter | 19/64" |
| Roller Link Plate Height | 0.472" |
| Tab Hole Diameter | 0.142" |
| Tab Orientation | Horizontal Outward |
| Tab Width | 0.752" |
| Temp. Range | -40°F to +750°F |
| Width Between Roller Link Plates | 0.312" |
| Working Load Limit | 595 lbs. |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Tensile Strength | Pitch | Temp. Range | Inside Pin Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80K1RL | Steel | 80 | Plain | 5/8" | 15400 lbs. | 1" | - | 0.312" | €37.52 | |
 |
80LK1RL | Steel | 80L | Black Oxide | 5/8" | 17600 lbs.-in. | 1" | - | 0.312" | €78.40 | |
 |
80ASK1RL | Stainless Steel | 80AS | Plain | 5/8" | - | 1" | -40°F to +750°F | 0.312" | €128.10 | |
 |
80NPK1RL | Steel | 80NP | Nickel Plated | 5/8" | 15400 lbs.-in. | 1" | - | 0.312" | €60.25 | |
 |

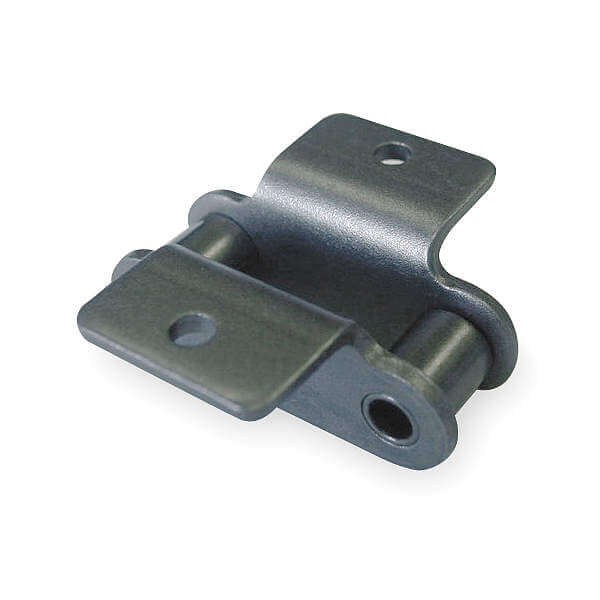

C2040K1RL | Steel | C2040 | Plain | 0.312" | 3750 lbs.-in. | - | +15°F to +300°F | 0.156" | €16.64 | |
 |
C2040LK1RL | Steel | C2040L | Black Oxide | 0.312" | 3530 lbs.-in. | 1" | +14°F to +302°F | 0.156" | €30.26 | |
 |

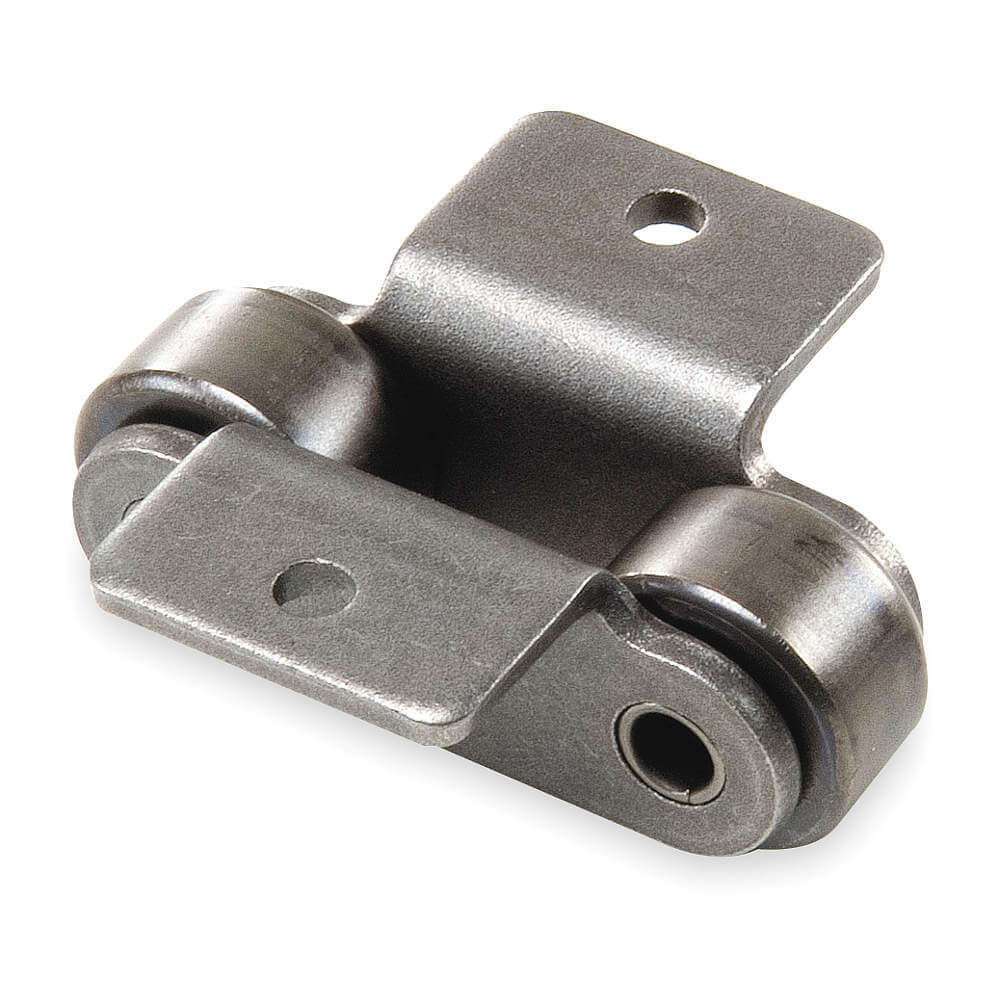

C2042K1RL | Steel | C2042 | Plain | - | 3750 lbs.-in. | 1" | +15°F to +300°F | 0.156" | €22.76 |
