TSUBAKI C2050LSA2RL Roller Link Sa-2 Attachment
Item: AB4KVXModel: C2050LSA2RLCross Ref: 1YLL9
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Link |
| Ansi Chain Size | C2050L |
| Attachment Number | SA-2 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.469" |
| Centerline To Hole Center | 0.406" |
| Chain Link Overall Width | 0.878" |
| Chain Number | C2050 |
| Chain Overall Width | 0.878" |
| Chain Roller Dia. | 2/5" |
| Connecting End To Center Line | 0.469" |
| Display Qty | 1 |
| Extended Pin Diameter | 1/5" |
| Finish | Black Oxide |
| For Chain Style (combined) | Black Oxide Steel |
| Industry Chain Pitch | 1 1/4" |
| Inside Pin Dia. | 1/5" |
| Length | 1 1/4" |
| Link Type | Roller Attachment Link |
| Lubrication | Self Lubricating |
| Material | Steel |
| Max. Allowable Load | 970 lbs. |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 14°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 1/5" |
| Overall Width | 0.878" |
| Pin Contruction | Riveted Pin |
| Pin Length | 7/8" |
| Pin Link Plate Thickness | 2/25" |
| Pin Type | Riveted |
| Pitch | 1 1/4" |
| Plate Height | 0.591" |
| Plate Thickness | 3/8" |
| Rivet End To Center Line | 0.406" |
| Roller Chain Link Item | Roller Attachment Link |
| Roller Dia. | 2/5" |
| Roller Diameter | 25/64" |
| Roller Link Plate Height | 0.591" |
| Tensile Strength | 5730 lbs.-in. |
| Width Between Roller Link Plates | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.23 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Finish | Pitch | Ansi Chain Size | Roller Dia. | Temp. Range | Tensile Strength | Inside Pin Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2040ASSA2RL | Stainless Steel | Plain | 1" | C2040AS | 0.312" | -40°F to +750°F | - | 0.156" | €55.93 | |
|
C2040LSA2RL | Steel | Black Oxide | 1" | C2040L | 0.312" | - | 3530 lbs.-in. | 0.156" | €23.47 | |
 |
C2040SA2RL | Steel | Plain | 1" | C2040 | 0.312" | +15°F to +300°F | 3750 lbs.-in. | 0.156" | €13.62 | |
|

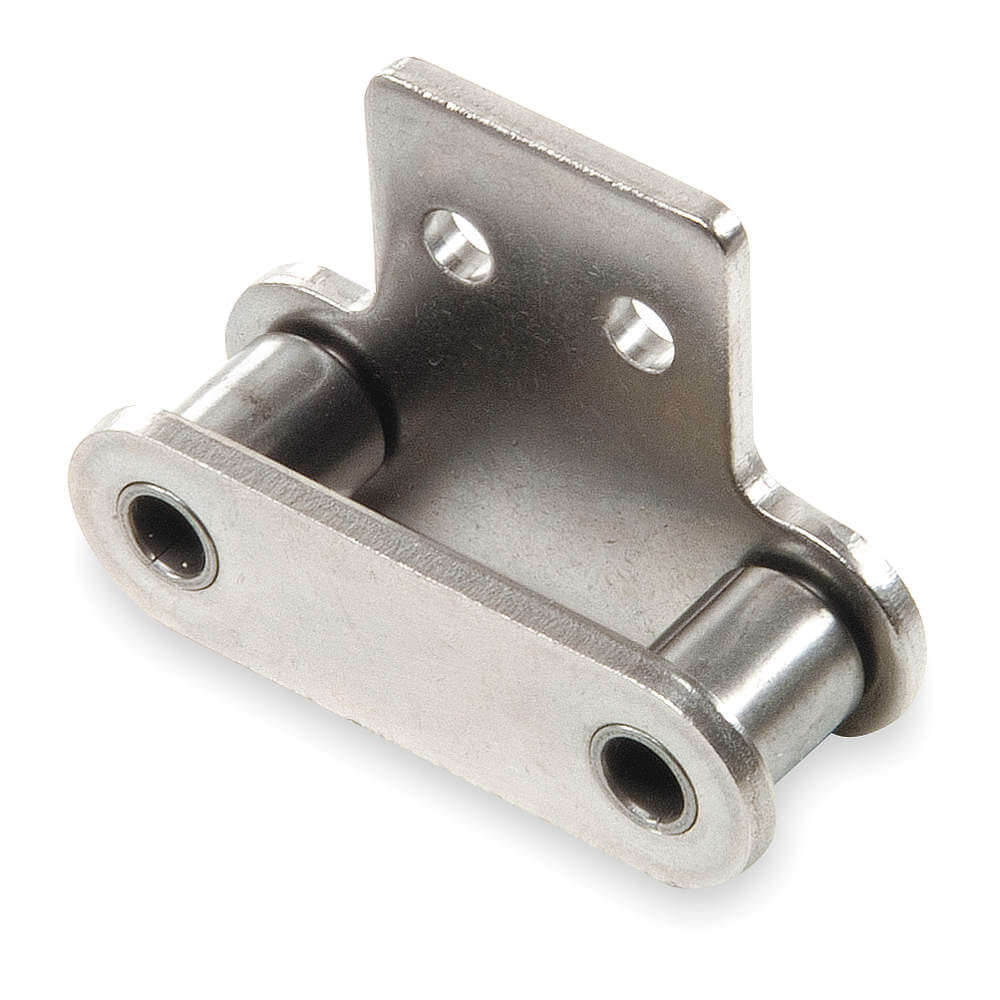

C2042ASSA2RL | Stainless Steel | Plain | 1" | C2042AS | - | -40°F to +750°F | - | 0.156" | €69.96 | |
 |
C2042SA2RL | Steel | Plain | 1" | C2042 | - | +15°F to +300°F | 3750 lbs.-in. | 0.156" | €19.41 | |
|
C2050SA2RL | Steel | Plain | 1 1/4" | C2050 | 2/5" | +15°F to +300°F | 6170 lbs.-in. | 1/5" | €16.27 | |
|
C2052ASSA2RL | Stainless Steel | Plain | 1 1/4" | - | 3/4" | -40°F to +750°F | - | 1/5" | €100.88 |
