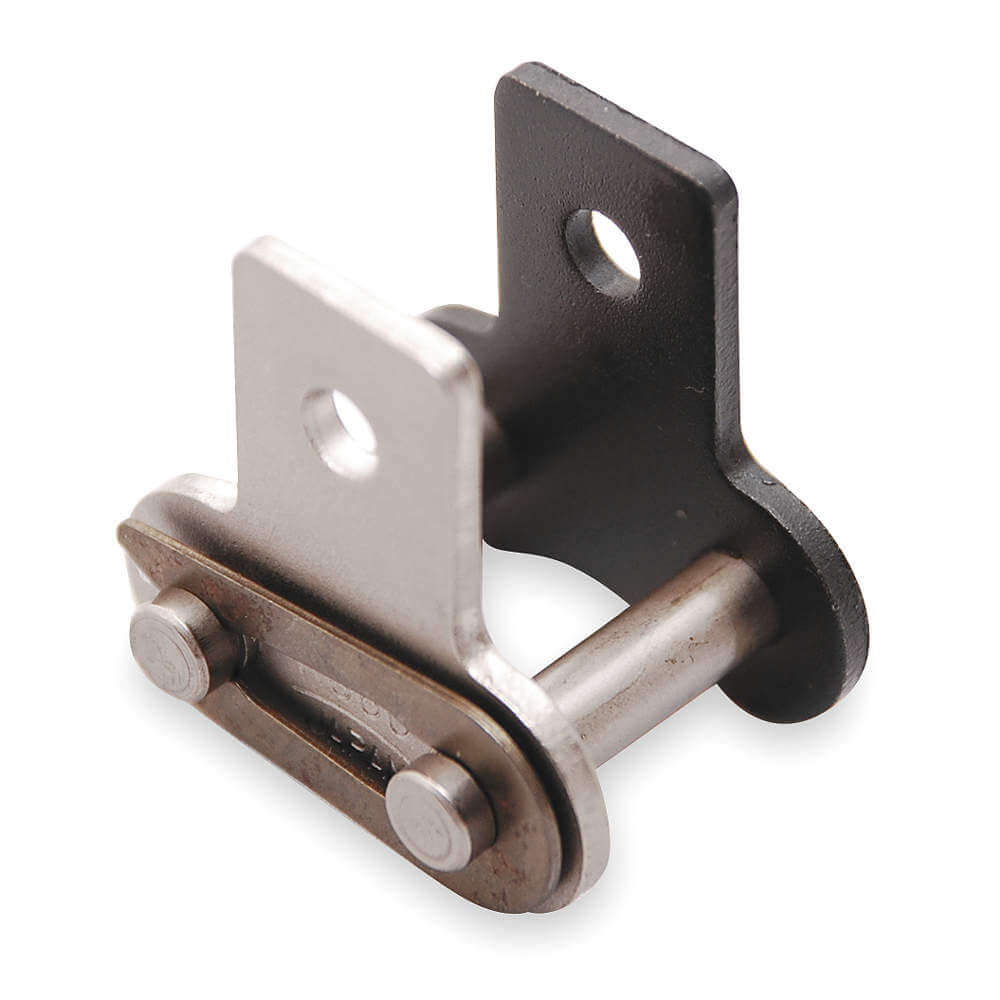

TSUBAKI 60LSK1CL Attachment Link, For Lube-Free Roller Chains, SK-1, 60, Single Strand, 3/4 in Pitch
Item: AB4KJXModel: 60LSK1CLCross Ref: 1YKF9
7 In Stock
Ships within 2 days via
10.00% off
€218.17 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | 60L |
| Attachment Number | SK-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.581" |
| Centerline To Hole Center | 0.506" |
| Chain Link Overall Width | 1.087" |
| Chain No. | 60 |
| Chain Number | 60 |
| Chain Overall Width | 1.087" |
| Chain Roller Dia. | 0.469" |
| Connecting End To Center Line | 0.581" |
| Extended Pin Diameter | 0.234" |
| Finish | Black Oxide |
| Industry Chain Pitch | 3/4" |
| Inside Pin Dia. | 0.234" |
| Length | 3/4" |
| Link Type | Attachment Link |
| Lubrication | Self Lubricating |
| Material | Steel |
| Max. Allowable Load | 1980 lbs. |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 14°F |
| Number Of Strands | 1 |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.234" |
| Overall Width | 1.087" |
| Pin Contruction | Riveted Pin |
| Pin Length | 1.087" |
| Pin Link Plate Thickness | 0.094" |
| Pin Type | Riveted |
| Pitch | 3/4" |
| Plate Height | 0.713" |
| Plate Thickness | 1/2" |
| Rivet End To Center Line | 0.506" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 0.469" |
| Roller Diameter | 15/32" |
| Roller Link Plate Height | 0.713" |
| Tensile Strength | 9920 lbs.-in. |
| Width Between Roller Link Plates | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 2.76 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Pitch | Tensile Strength | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLSA1CL | Steel | C2060HL | Black Oxide | 0.469" | 1 1/2" | 9040 lbs.-in. | - | 0.234" | 1 | €43.65 | |
 |
C2060HLSA2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €43.65 | |
 |
C2060HLSK1CL | Steel | C2060HL | Black Oxide | 0.469" | - | - | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HLSK2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HNEPCL | Steel | C2060H | Coated | 0.469" | - | 9040 lbf. | +14°F to +302°F | 0.234" | 1 | €28.27 | |
 |
C2080HPCL | Steel | C2080H | - | - | 2" | 10800 lbf. | +15°F to +300°F | 0.448" | 1 | €58.50 | |
 |
C2080HLA1CL | Steel | C2080HL | Black Oxide | 5/8" | 2" | 15400 lbs.-in. | - | 0.312" | 1 | €76.00 |
