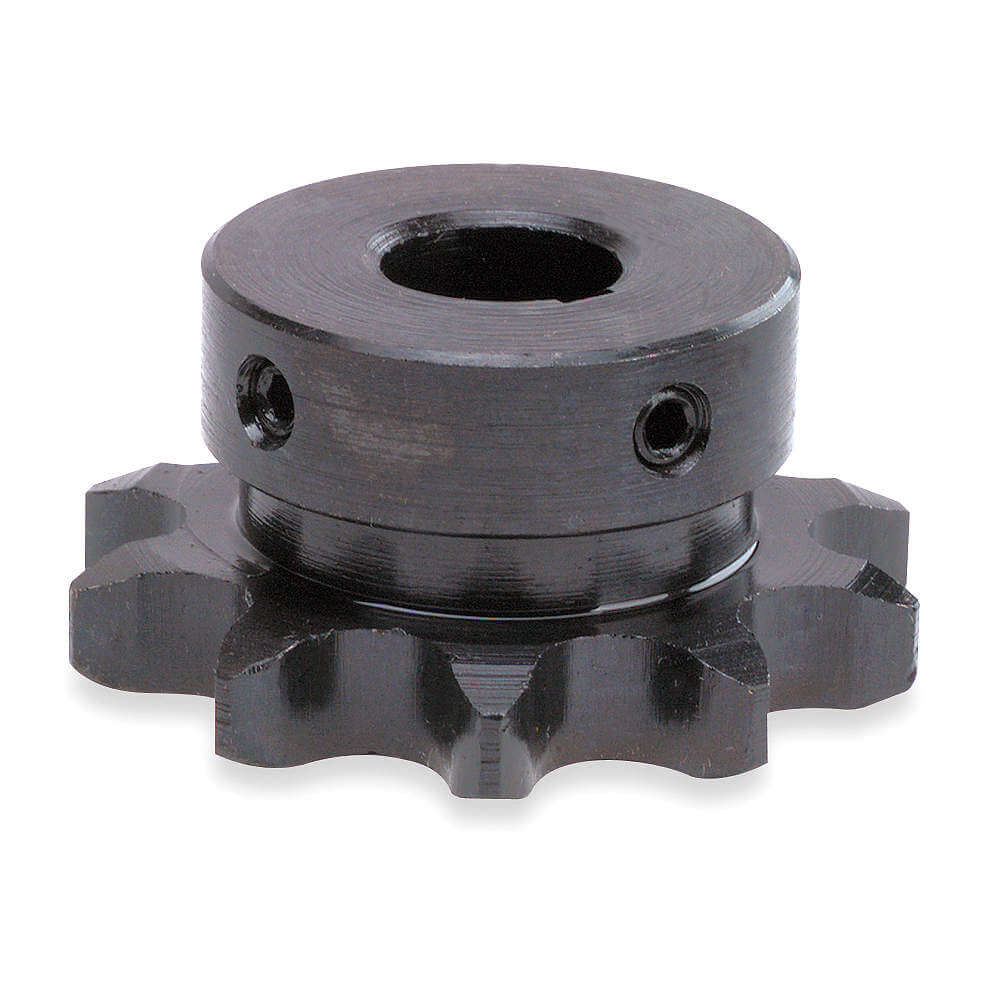

TSUBAKI 41B10F-3/4 Sprocket 1.840 Outer Diameter #41
Item: AE9PCLModel: 41B10F-3/4Cross Ref: 6L893
7 In Stock
Ships within 2 days via
10.00% off
€31.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Strand Sprocket |
| Ansi Sprocket Number | 41 |
| Bore Dia. | 3/4" |
| Bore Type | Fixed |
| Chain Number | 41 |
| Finish | Black Oxide |
| For Chain Pitch | 1/2" |
| For No. Of Strands | 1 |
| For Pitch Type | Single Pitch |
| Hub Diameter | 1 1/4" |
| Hub Projection | 0.648" |
| Hub Type | One Side |
| Includes | Set Screws |
| Industry Chain Pitch | 1/2" |
| Industry Chain Size | 41 |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyseat Size (in.) | 3/16" x 3/32" |
| Keyseat Size (in.) | 3/16 x 3/32 |
| Keyway | Yes |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Length Through Bore | 7/8" |
| Material | Steel |
| Material - Sprockets | Steel |
| Material Grade | Grade 1045 |
| Maximum Bore Dia. | 5/8" |
| Number Of Set Screws | 2 |
| Number Of Teeth | 10 |
| Outside Dia. | 1 21/25" |
| Outside Diameter | 1.84" |
| Pitch Dia. | 1.618" |
| Resistance Properties | Corrosion Resistant |
| Set Screw Dia. | 0.25" |
| Set Screw Dia. (in.) | 1/4 |
| Set Screw Hole Dia. | 1/4" |
| Set Screw Location | 90° From Keyway, Directly Over Keyway |
| Set Screw Size | 1/4" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.227" |
| Type | Fixed Bore |
| Width Across Tooth Sets | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 4.67 |
| Ship width (cm) | 4.67 |
| HS code | 8483901050 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Tooth Width | Maximum Bore Dia. | Hub Projection | Set Screw Size | Keyway | Keyseat Size (in.) | Set Screw Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40B10F-1/2 | 1/2" | 0.284" | 1/2" | 0.591" | 5/64" | No | 1/8" x 1/16" | - | €36.04 | |
| 40B10F-5/8 | 5/8" | 0.284" | 5/8" | 0.591" | 1/4" | Yes | 3/16" x 3/32" | 0.25" | €40.25 | |
| 40B10F-3/4 | 3/4" | 0.284" | 3/4" | 0.591" | 1/4" | Yes | 3/16" x 3/32" | 0.25" | €36.19 | |
| 41B10F-1/2 | 1/2" | 0.227" | 1/2" | 0.648" | 5/64" | No | 3/8" x 3/16" | 3/8" | €34.28 | |
| 41B10F-5/8 | 5/8" | 0.227" | 5/8" | 0.648" | 1/4" | Yes | 3/16" x 3/32" | 0.25" | €34.45 |
