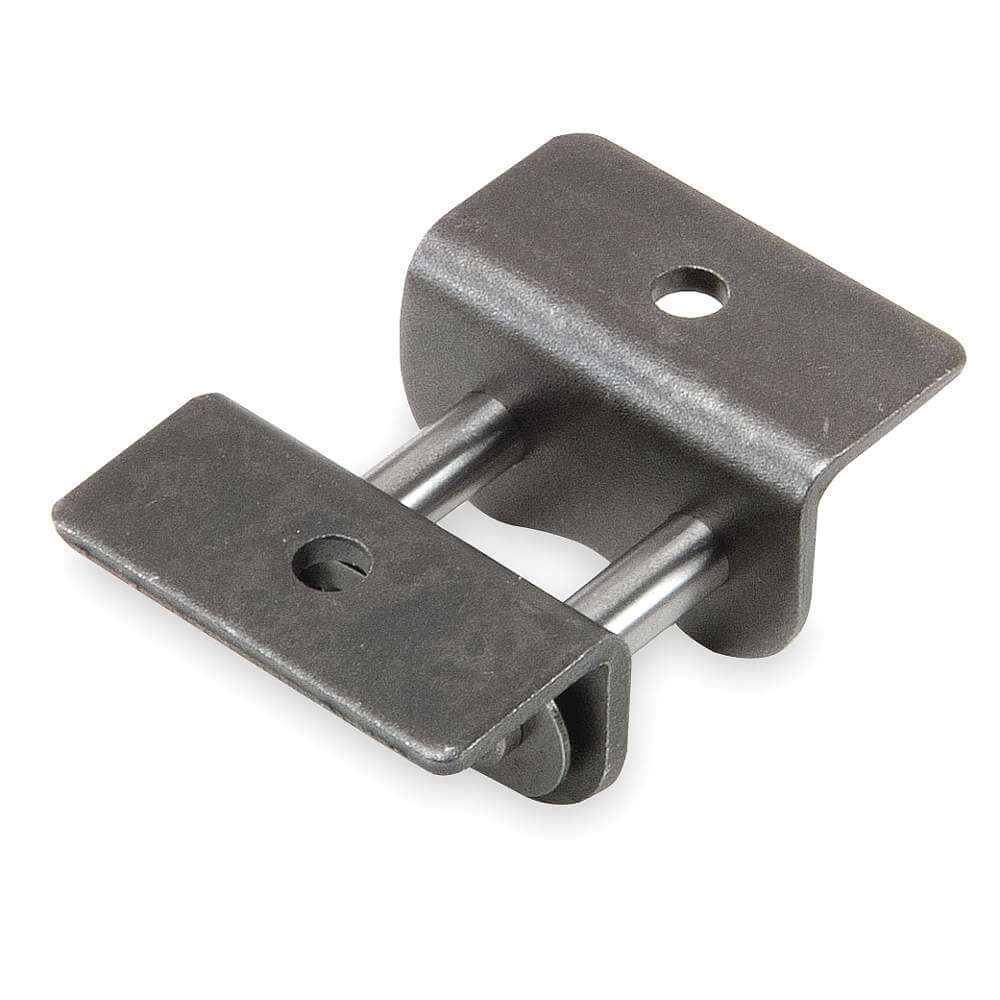

TSUBAKI 40WK1CL Attachment Link, For Std Roller Chains, 40, Single Strand, 1/2 in Pitch, Steel, Plain
Item: AB4KDMModel: 40WK1CLCross Ref: 1YJR2
7 In Stock
Ships within 2 days via
10.00% off
€83.28 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | 40 |
| Attachment Type | Wide Contour Tab |
| Centerline To Attachment End | 0.392" |
| Centerline To Hole Center | 0.325" |
| Chain Link Overall Width | 0.717" |
| Chain Number | 40 |
| Chain Overall Width | 0.717" |
| Chain Roller Dia. | 0.312" |
| Connecting End To Center Line | 0.392" |
| Extended Pin Diameter | 0.156" |
| Finish | Plain |
| Industry Chain Pitch | 1/2" |
| Inside Pin Dia. | 0.156" |
| Length | 1/2" |
| Link Type | Attachment Link |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.717" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1/2" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 0.312" |
| Roller Diameter | 19/64" |
| Roller Link Plate Height | 0.472" |
| Tensile Strength | 3750 lbs.-in. |
| Width Between Roller Link Plates | 0.312" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Ansi Chain Size | Pitch | Tensile Strength | Roller Dia. | Temp. Range | Inside Pin Dia. | Chain Overall Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60 AS C/L | Stainless Steel | 60AS | - | - | 0.469" | -40°F to +750°F | 0.234" | 1 3/32" | 5 | €199.42 | |
|
50 AS C/L | Stainless Steel | 50AS | - | - | 2/5" | -40°F to +750°F | 1/5" | 7/8" | 5 | €145.83 | |
|
40 AS C/L | Stainless Steel | 40AS | 1/2" | - | 0.312" | -40°F to +750°F | 0.156" | 23/32" | 5 | €121.17 | |
 |
100D1CL | Steel | 100 | 1 1/4" | 26460 lbs.-in. | 3/4" | - | 3/8" | 1.678" | 1 | €49.26 | |
|
35D1CL | Steel | 35 | 3/8" | 2120 lbs.-in. | - | - | 0.141" | 1/2" | 5 | €85.76 | |
 |
35D3CL | Steel | 35 | 3/8" | 2120 lbs.-in. | - | - | 0.141" | 1/2" | 5 | €95.74 | |
 |
35WA1CL | Steel | 35 | 3/8" | 2120 lbs.-in. | - | - | 0.141" | 1/2" | 5 | €94.24 |
