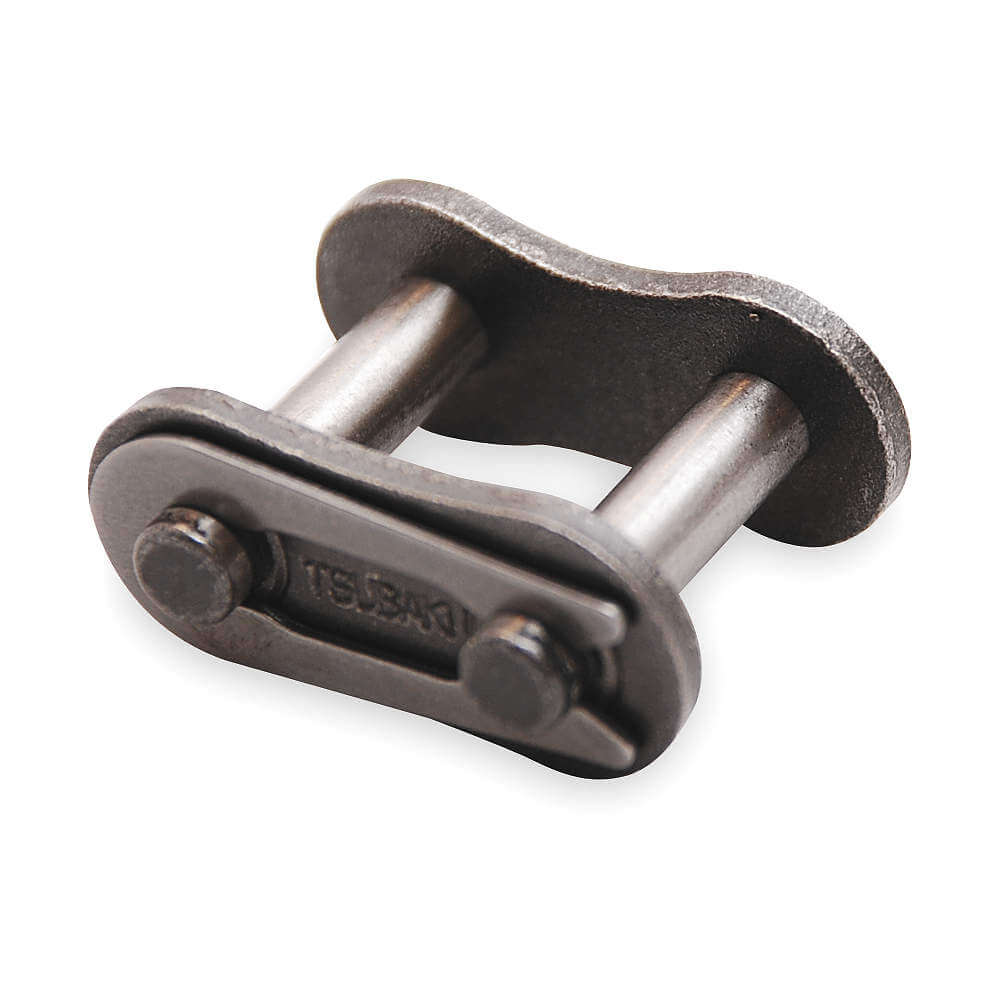

TSUBAKI 40LAMCL Connecting Roller Link
Item: AB4KCEModel: 40LAMCLCross Ref: 1YJK8
7 In Stock
Ships within 2 days via
10.00% off
€69.81 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Roller Chain Link |
| Ansi Chain Size | 40 |
| Chain Construction | Riveted Pin |
| Chain Link Overall Width | 0.717" |
| Chain Number | 40 |
| Chain Overall Width | 3/4" |
| Chain Roller Dia. | 0.312" |
| Connecting End To Center Line | 0.392" |
| Finish | Black Oxide |
| Heavy Series | No |
| Industry Chain Pitch | 1/2" |
| Inside Pin Dia. | 0.156" |
| Inside Width | 19/64" |
| Length | 1/2" |
| Link Type | Connecting Link |
| Lubrication | Maintenance Free With Self-Lubricating Bushings |
| Material | Steel |
| Max. Allowable Load | 816 lbs. |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 14°F |
| Number Of Strands | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.717" |
| Pin Link Plate Thickness | 0.06" |
| Pin Outside Dia. | 5/32" |
| Pin Type | Riveted |
| Pitch | 1/2" |
| Pitch Type | Single Pitch |
| Plate Height | 13/32", 15/32" |
| Plate Thickness | 1/16", 5/64" |
| Rivet End To Center Line | 0.325" |
| Roller Chain Link Item | Connecting Link |
| Roller Chain Link Type | Lube Free Riveted |
| Roller Chain Standard | ANSI |
| Roller Dia. | 0.312" |
| Roller Diameter | 19/64" |
| Roller Link Plate Height | 0.472" |
| Series | LAMBDA Series |
| Tensile Strength | 3970 lbf. |
| Type | Lambda |
| Width Between Roller Link Plates | 0.312" |
| Working Load Limit | 816 lbs. |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Roller Dia. | Finish | Tensile Strength | Pitch | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HSA1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | €23.72 | |
 |
C2060HSA2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | €23.72 | |
 |
C2060HSK1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | €30.92 | |
 |
C2060HSK2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | €30.92 | |
 |
C2060HASSA1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | -40°F to +750°F | 0.234" | 1 | €92.92 | |
 |
C2060HASA2CL | Stainless Steel | C2060HAS | - | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | €92.92 | |
 |
C2060HASD1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | €85.21 |
