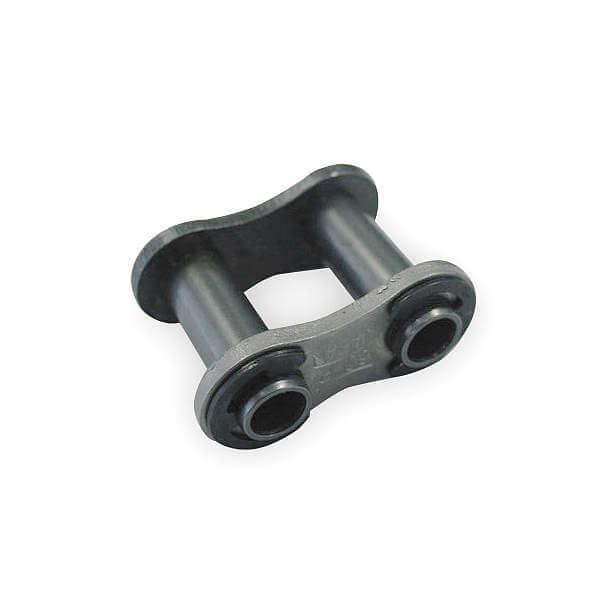

TSUBAKI 40HPCL Connecting Link, For Stainless Steel Roller Chains, 40, Single Strand, 1/2 in Pitch
Item: AB4KCGModel: 40HPCLCross Ref: 1YJL1
7 In Stock
Ships within 2 days via
10.00% off
€67.86 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Connecting Chain Link |
| Ansi Chain Size | 40 |
| Bushing Dia. | 0.312" |
| Bushing Dia. (in.) | 0.312" |
| Bushing Dia. (in.) | 0.312 |
| Chain Construction | Riveted Pin |
| Chain Link Overall Width | 0.717" |
| Chain Number | 40 |
| Chain Overall Width | 11/16" |
| Chain Roller Dia. | 0.312" |
| Connecting End To Center Line | 0.374" |
| Features | Cross Rod Use Without Disconnecting Chain |
| Finish | Plain |
| Heavy Series | No |
| Industry Chain Pitch | 1/2" |
| Inside Pin Dia. | 0.224" |
| Inside Width | 5/16" |
| Length | 1/2" |
| Link Type | Connecting Link |
| Lubrication | SAE 10 To SAE 50 |
| Material | Stainless Steel |
| Max. Allowable Load | 397 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Outside Pin Dia. | 0.224" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.689" |
| Pin Link Plate Thickness | 0.06" |
| Pin Outside Dia. | 7/32" |
| Pin Type | Riveted |
| Pitch | 1/2" |
| Pitch Type | Single Pitch |
| Plate Height | 15/32" |
| Plate Thickness | 1/16" |
| Rivet End To Center Line | 0.315" |
| Roller Chain Link Item | Connecting Link |
| Roller Chain Link Type | Hollow Pin |
| Roller Chain Standard | ANSI |
| Roller Dia. | 0.312" |
| Roller Diameter | 19/64" |
| Roller Link Plate Height | 0.472" |
| Series | RS Series |
| Tensile Strength | 2430 lbf. |
| Type | Hollow Pin |
| Width Between Roller Link Plates | 0.312" |
| Working Load Limit | 397 lbs. |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.82 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Pitch | Tensile Strength | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C2060HLSA1CL | Steel | C2060HL | Black Oxide | 0.469" | 1 1/2" | 9040 lbs.-in. | - | 0.234" | 1 | €43.65 | |
 |
C2060HLSA2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €43.65 | |
 |
C2060HLSK1CL | Steel | C2060HL | Black Oxide | 0.469" | - | - | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HLSK2CL | Steel | C2060HL | Black Oxide | 0.469" | - | 9040 lbs.-in. | +14°F to +302°F | 0.234" | 1 | €60.20 | |
 |
C2060HNEPCL | Steel | C2060H | Coated | 0.469" | - | 9040 lbf. | +14°F to +302°F | 0.234" | 1 | €28.27 | |
 |
C2080HPCL | Steel | C2080H | - | - | 2" | 10800 lbf. | +15°F to +300°F | 0.448" | 1 | €58.50 | |
 |
C2080HLA1CL | Steel | C2080HL | Black Oxide | 5/8" | 2" | 15400 lbs.-in. | - | 0.312" | 1 | €76.00 |
