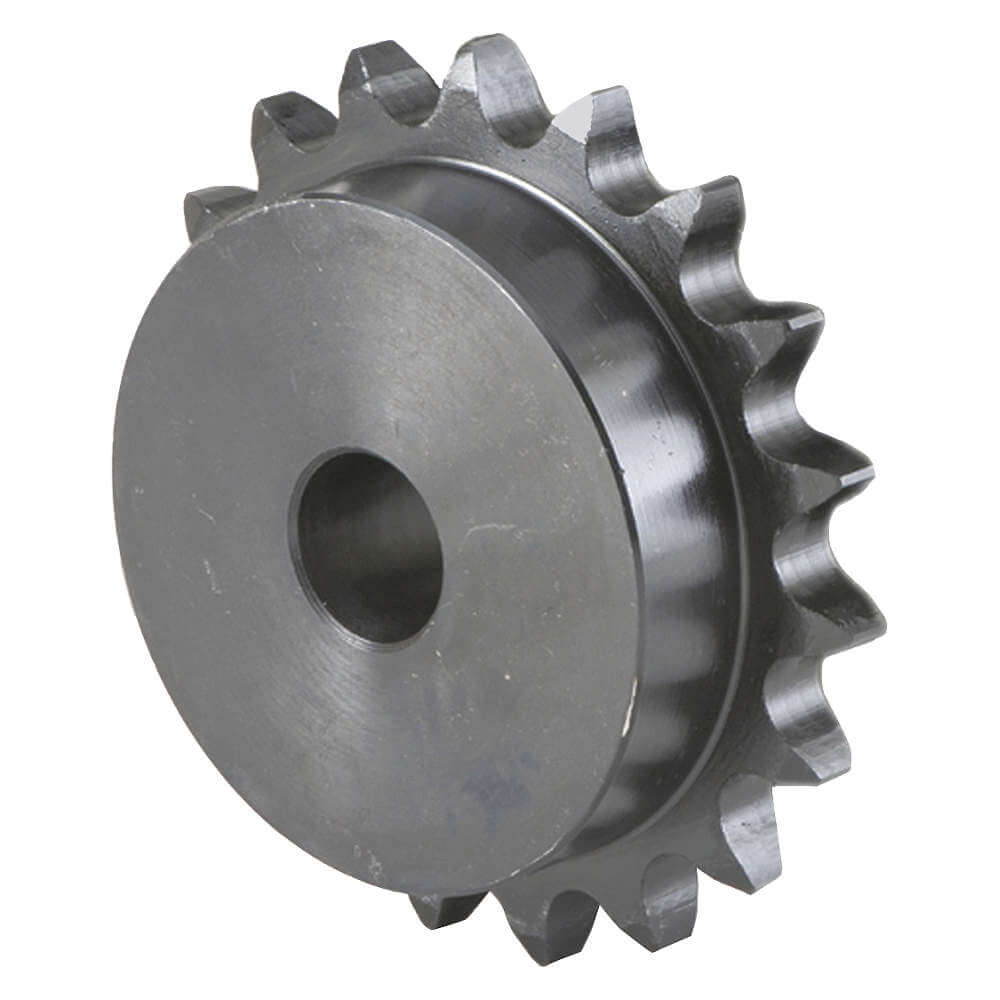

TSUBAKI 40B9F-1/2 Sprocket 1.674 Outer Diameter #40
Item: AE9PAXModel: 40B9F-1/2Cross Ref: 6L835
7 In Stock
Ships within 2 days via
10.00% off
€34.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Strand Sprocket |
| Ansi Sprocket Number | 40 |
| Bore Dia. | 1/2" |
| Bore Type | Fixed |
| Chain Number | 40 |
| Finish | Black Oxide |
| For Chain Pitch | 1/2" |
| For No. Of Strands | 1 |
| For Pitch Type | Single Pitch |
| Hub Diameter | 1 1/16" |
| Hub Projection | 0.591" |
| Hub Type | One Side |
| Includes | Set Screws |
| Industry Chain Pitch | 1/2" |
| Industry Chain Size | 40 |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyseat Size (in.) | 1/8" x 1/16" |
| Keyseat Size (in.) | 1/8 x 1/16 |
| Keyway | No |
| Keyway Depth | Not Applicable |
| Keyway Width | Not Applicable |
| Length Through Bore | 7/8" |
| Material | Steel |
| Material - Sprockets | Steel |
| Material Grade | Grade 1045 |
| Maximum Bore Dia. | 1/2" |
| Number Of Set Screws | 2 |
| Number Of Teeth | 9 |
| Outside Dia. | 1.674" |
| Outside Diameter | 1.67" |
| Pitch Dia. | 1.462" |
| Resistance Properties | Corrosion Resistant |
| Set Screw Location | 90° From Keyway, Directly Over Keyway |
| Set Screw Size | 5/64" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.284" |
| Type | Fixed Bore |
| Width Across Tooth Sets | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 4.24 |
| Ship width (cm) | 4.24 |
| HS code | 8483901050 |
| Country of Origin | CN |
Product Variants
| Product | Model | Bore Dia. | Maximum Bore Dia. | Set Screw Size | Keyway | Keyseat Size (in.) | For Chain Pitch | Number Of Teeth | Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40B9F-5/8 | 5/8" | 5/8" | 1/4" | Yes | 3/16" x 3/32" | 1/2" | 9 | 1.462" | €34.69 |
