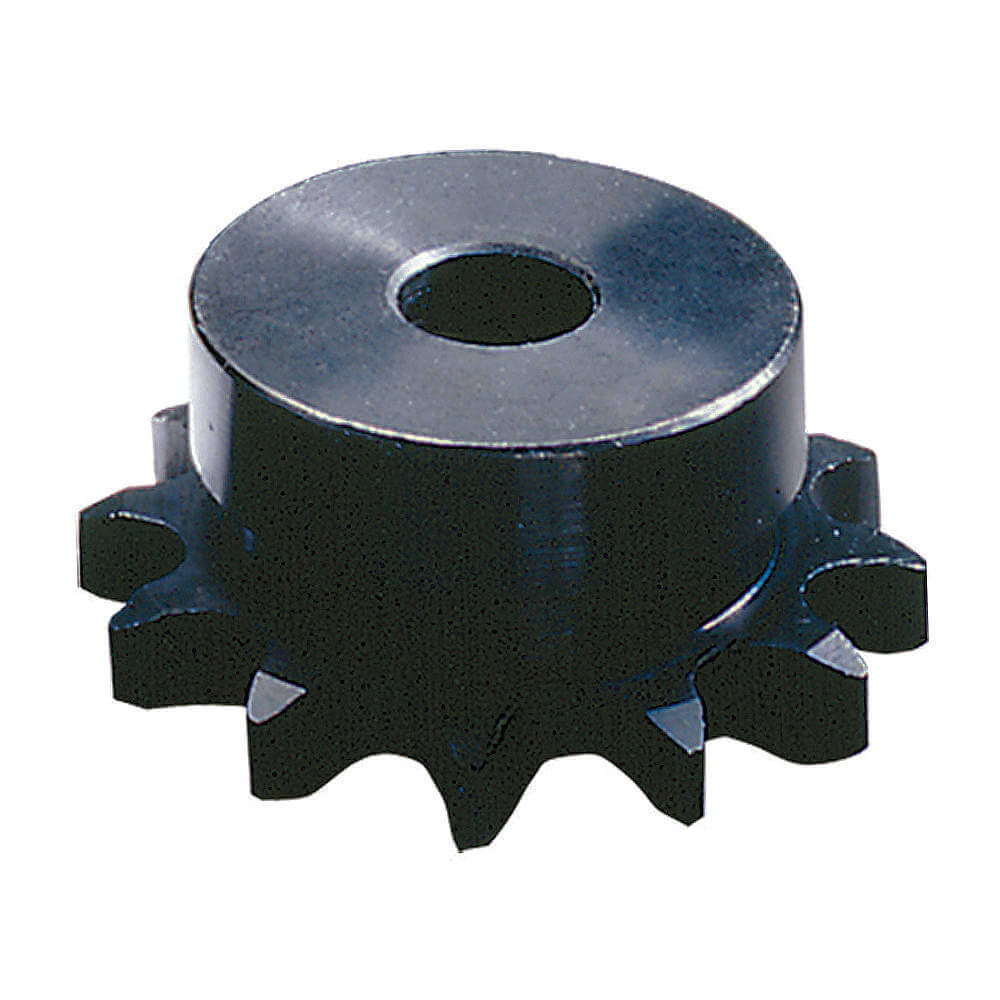

TSUBAKI 35B60 Single Strand Sprocket 7.380 Inch Outside Diameter #35
Item: AF7BRXModel: 35B60Cross Ref: 20UE61
7 In Stock
Ships within 2 days via
10.00% off
€102.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Single Strand Sprocket |
| Ansi Sprocket Number | 35 |
| Bore Dia. | 3/4" |
| Bore Type | Plain |
| Bushing Required | None |
| Finish | Black Oxide |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| For No. Of Strands | 1 |
| For Pitch Type | Single Pitch |
| Hub Dia. | 2 1/4" |
| Hub Diameter | 2 1/4" |
| Hub Projection | 0.832" |
| Hub Type | One Side |
| Includes | Set Screws |
| Length Through Bore | 1" |
| Material | Steel |
| Material Grade | Grade 1045 |
| Max. Bore | 1 1/2" |
| Number Of Set Screws | 2 |
| Number Of Teeth | 60 |
| Outside Dia. | 7.38" |
| Pitch Dia. | 7.165" |
| Resistance Properties | Corrosion Resistant |
| Set Screw Location | 90° From Keyway, Directly Over Keyway |
| Set Screw Size | 1/4" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.168" |
| Type | Plain Bore |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 18.75 |
| Ship width (cm) | 18.75 |
| HS code | 8483901000 |
| Country of Origin | CN |
Product Variants
| Model | Pitch Dia. | Outside Dia. | Number Of Teeth | For Chain Pitch | For Chain Number | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

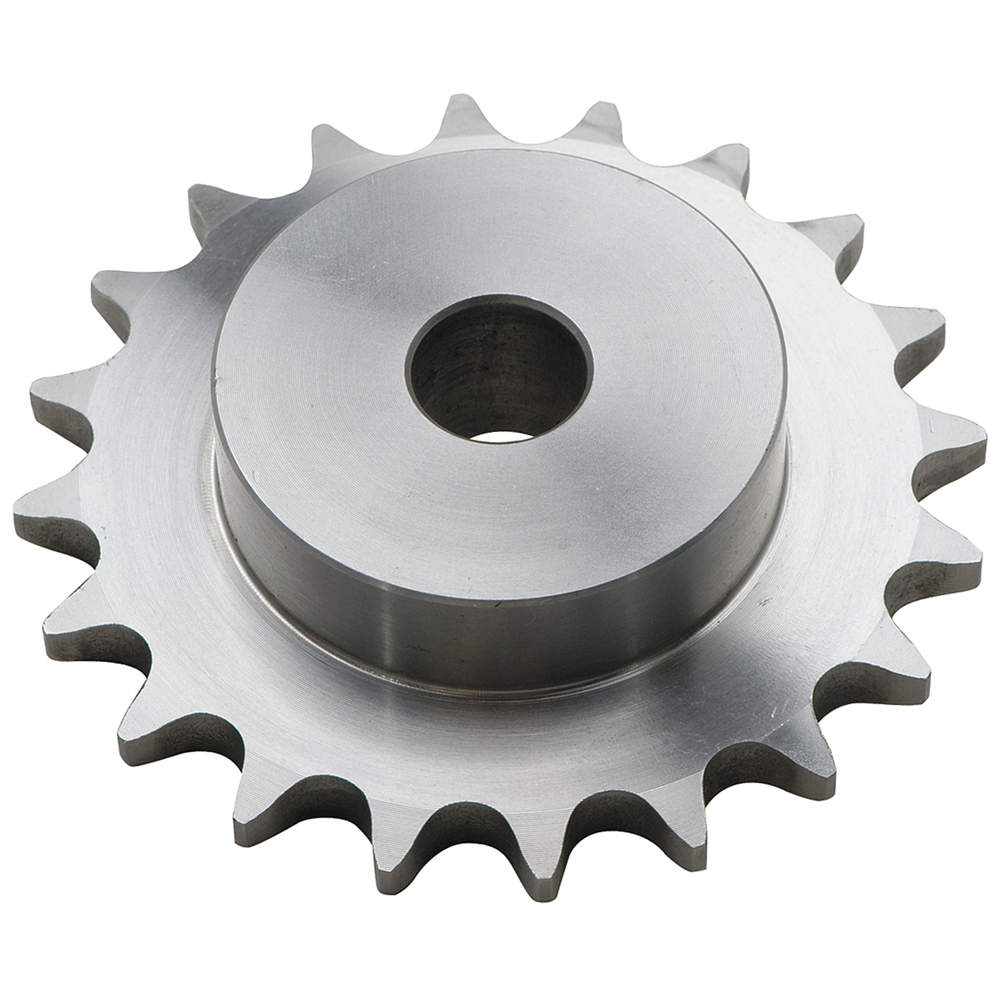

| 25B22SS | 1.757" | 1.889" | 22 | 1/4" | 25 | 1/4" | Plain Bore | 0.515" | €334.69 | |
| 25B40SS | 3.187" | 3.327" | 40 | 1/4" | 25 | 3/8" | Plain Bore | 0.64" | €735.26 | |
| 35B40SS | 4.78" | 4.99" | 40 | 3/8" | 35 | 1/2" | Plain Bore | 0.832" | €807.01 | |
| 40B40SS | 6.373" | 6.66" | 40 | 1/2" | 40 | 5/8" | Plain Bore | 0.716" | €1,231.29 | |
| 40B60SS | 9.554" | 9 21/25" | 60 | 1/2" | 40 | 5/8" | Plain Bore | 0.716" | €1,528.89 | |
| 80B11SS | 3.55" | 4.01" | 11 | 1" | - | 1" | Plain Bore | 1.05" | €689.44 | |

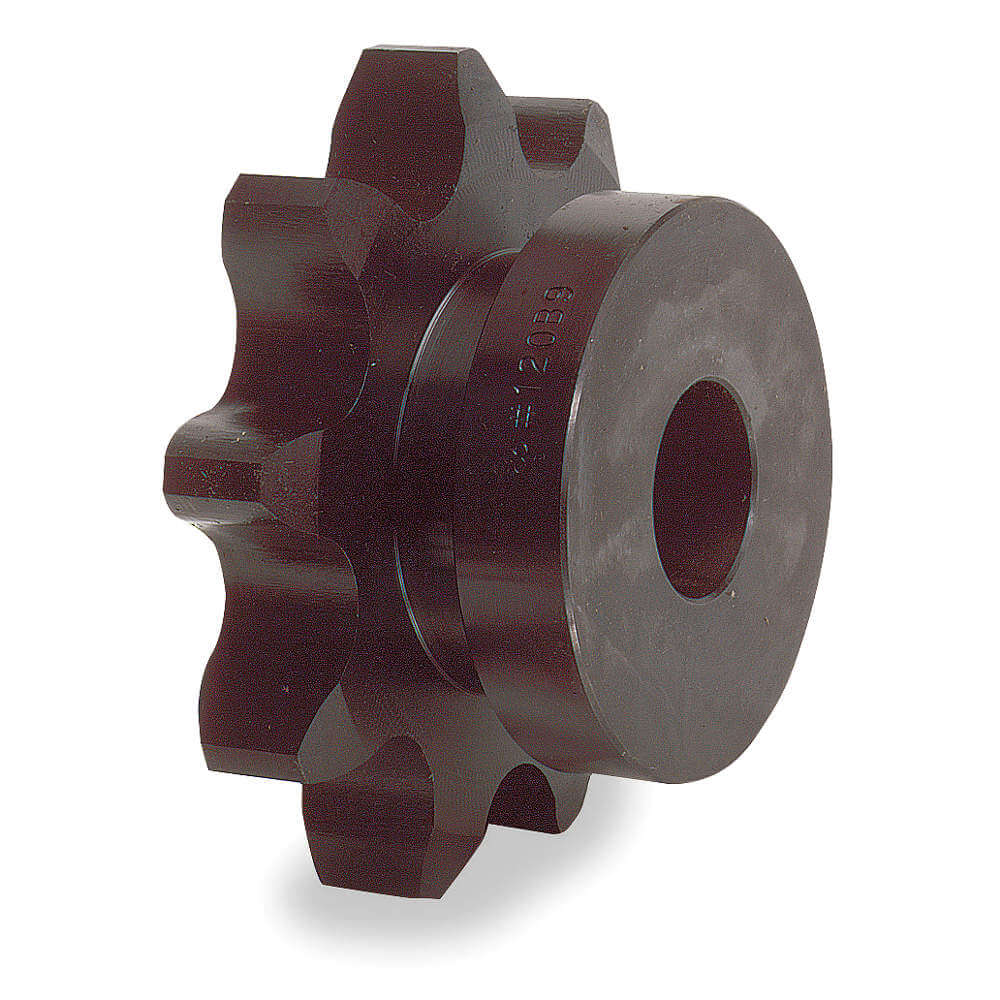

| 160B8 | 5.226" | 6.028" | 8 | 2" | - | 1 3/8" | Stock Bore | 1.094" | €492.20 |
