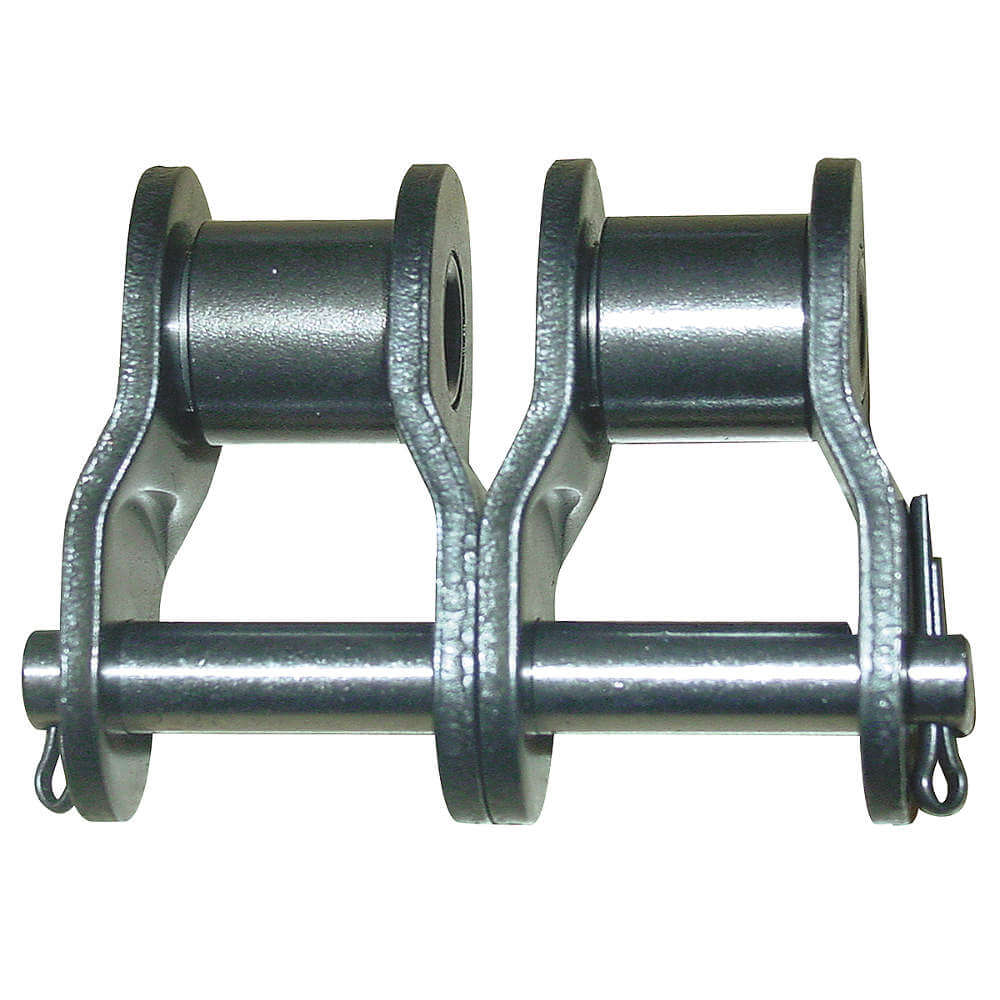

TSUBAKI 35-2 OFFSET LINK Chain Link Double Strand #35-2
Item: AE9NVYModel: 35-2 OFFSET LINKCross Ref: 6L505
7 In Stock
Ships within 2 days via
10.00% off
€86.10 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Offset Roller Chain Link |
| Ansi Chain Size | 35-2 |
| Application | Automobile Engines, Container Straddle Carriers, Crawler Drills, Draw Benches, Marine Diesel Engines, Oil-Well Drilling Equipment, Pump Drives, Roller Tables, Tilting Tables |
| Chain Construction | Riveted Pin |
| Chain Number | 35 |
| Chain Overall Width | 57/64" |
| Features | Heat Treatment, Prelubrication |
| Heavy Series | No |
| Industry Chain Pitch | 3/8" |
| Inside Pin Dia. | 0.141" |
| Inside Width | 3/16" |
| Link Type | Offset |
| Lubrication | Maintenance Free |
| Material | Steel |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 2 |
| Pin Contruction | Riveted Pin |
| Pin Outside Dia. | 9/64" |
| Pitch | 3/8" |
| Plate Height | 5/16", 23/64" |
| Plate Thickness | 3/64" |
| Roller Chain Link Item | Offset Link |
| Roller Chain Link Type | Standard Riveted |
| Roller Chain Standard | ANSI |
| Roller Diameter | 3/16" |
| Series | RS Series |
| Standards | Ansi, Asme |
| Tensile Strength | 5060 lbf. |
| Transverse Pitch | 13/32" |
| Type | Double Strand |
| Working Load Limit | 810 lbs. |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
| HS code | 7315110045 |
| Country of Origin | JP |
Product Variants
| Product | Model | Pitch | Ansi Chain Size | Tensile Strength | Inside Pin Dia. | Chain Overall Width | Link Type | Plate Thickness | Chain Construction | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

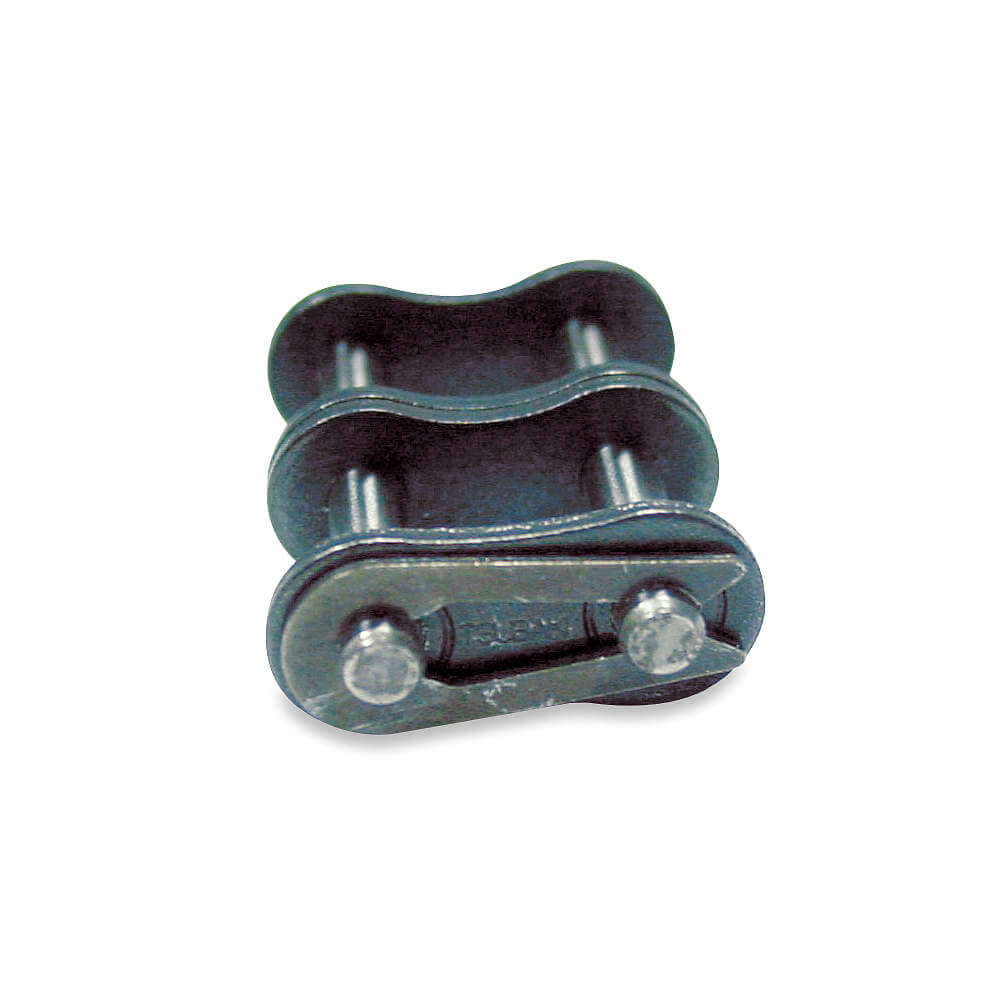

35-2 CONNECTING LINK | 3/8" | 35-2 | 5060 lbf. | 0.141" | 57/64" | Connecting Link | 3/64" | Riveted Pin | 5 | €51.05 | |
|
40-2 CONNECTING LINK | 1/2" | 40-2 | 8580 lbf. | 0.156" | 1 9/32" | Connecting Link | 1/16" | Riveted Pin | 5 | €53.12 | |
|
50-2 CONNECTING LINK | 5/8" | 50-2 | 14100 lbf. | 1/5" | 1 19/32" | Connecting Link | 5/64" | Riveted Pin | 5 | €70.70 | |
|
60-2 CONNECTING LINK | 3/4" | 60-2 | 19840 lbf. | 0.234" | 1 63/64" | Connecting Link | 3/32" | Riveted Pin | 5 | €93.43 | |
 |

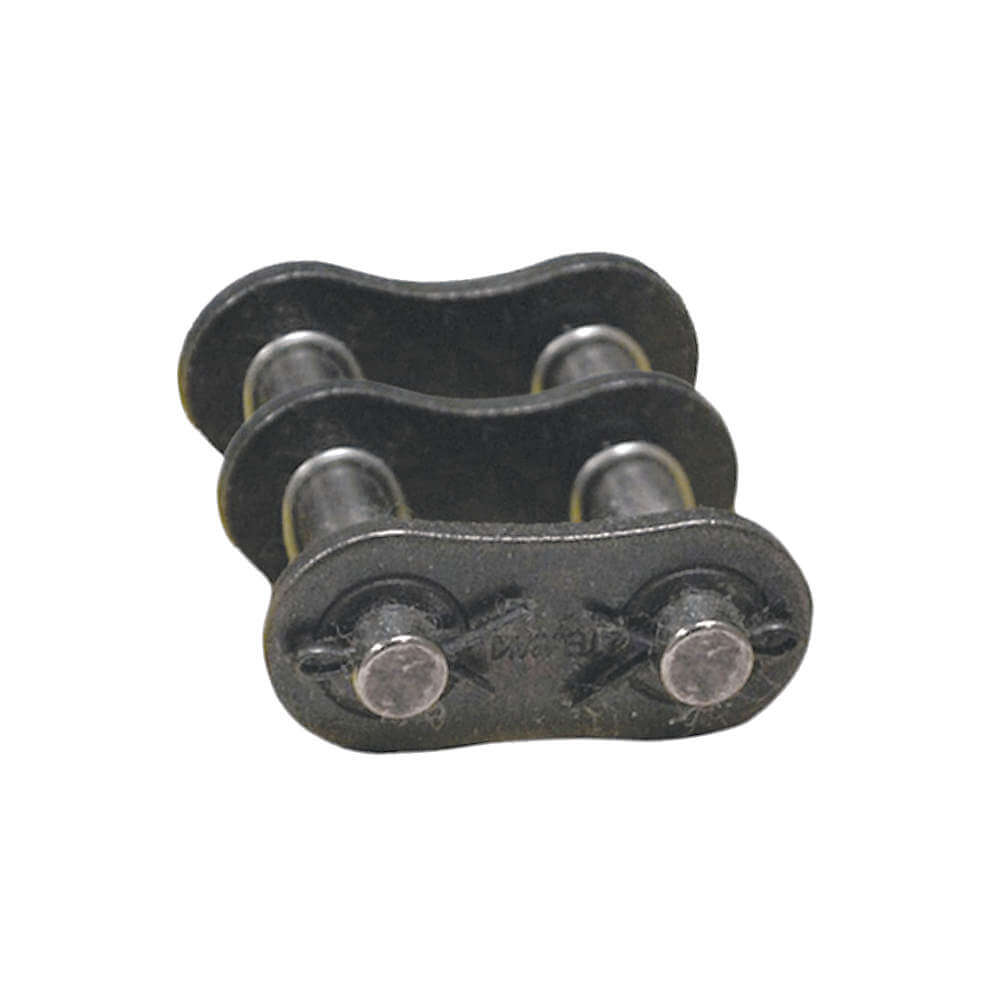

80-2 CONNECTING LINK | 1" | 80-2 | 35280 lbf. | 0.312" | 2 35/64" | Connecting Link | 1/8" | Riveted Pin | 1 | €26.54 | |
|
100-2 CONNECTING LINK | 1 1/4" | 100-2 | 52920 lbf. | 3/8" | 3 3/32" | Connecting Link | 5/32" | Cottered Pin | 1 | €21.58 | |
|
40-2 OFFSET LINK | 1/2" | 40-2 | 8580 lbf. | 0.156" | 1 9/32" | Offset | 1/16" | Riveted Pin | 5 | €99.82 |
