TSUBAKI 140 OFFSET LINK Chain Link Single Strand #140
Item: AE9NVLModel: 140 OFFSET LINKCross Ref: 6L494
7 In Stock
Ships within 2 days via
10.00% off
€85.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Offset Roller Chain Link |
| Ansi Chain Size | 140 |
| Application | Automobile Engines, Container Straddle Carriers, Crawler Drills, Draw Benches, Marine Diesel Engines, Oil-Well Drilling Equipment, Pump Drives, Roller Tables, Tilting Tables |
| Chain Construction | Cottered Pin |
| Chain Number | 140 |
| Chain Overall Width | 2 5/16" |
| Features | Heat Treatment, Prelubrication |
| Heavy Series | No |
| Industry Chain Pitch | 1 3/4" |
| Inside Pin Dia. | 1/2" |
| Inside Width | 1" |
| Link Type | Offset |
| Lubrication | Maintenance Free |
| Material | Steel |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Pin Contruction | Riveted Pin |
| Pin Outside Dia. | 1/2" |
| Pitch | 1 3/4" |
| Plate Height | 1 7/16", 1 21/32" |
| Plate Thickness | 7/32" |
| Roller Chain Link Item | Offset Link |
| Roller Chain Link Type | Standard Riveted |
| Roller Chain Standard | ANSI |
| Roller Diameter | 1" |
| Series | RS Series |
| Standards | Ansi, Asme |
| Tensile Strength | 48510 lbf. |
| Type | Single Strand |
| Working Load Limit | 9040 lbs. |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.6 |
| HS code | 7315190000 |
| Country of Origin | JP |
Product Variants
| Product | Model | Pitch | Ansi Chain Size | Tensile Strength | Inside Pin Dia. | Chain Overall Width | Link Type | Plate Thickness | Pin Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

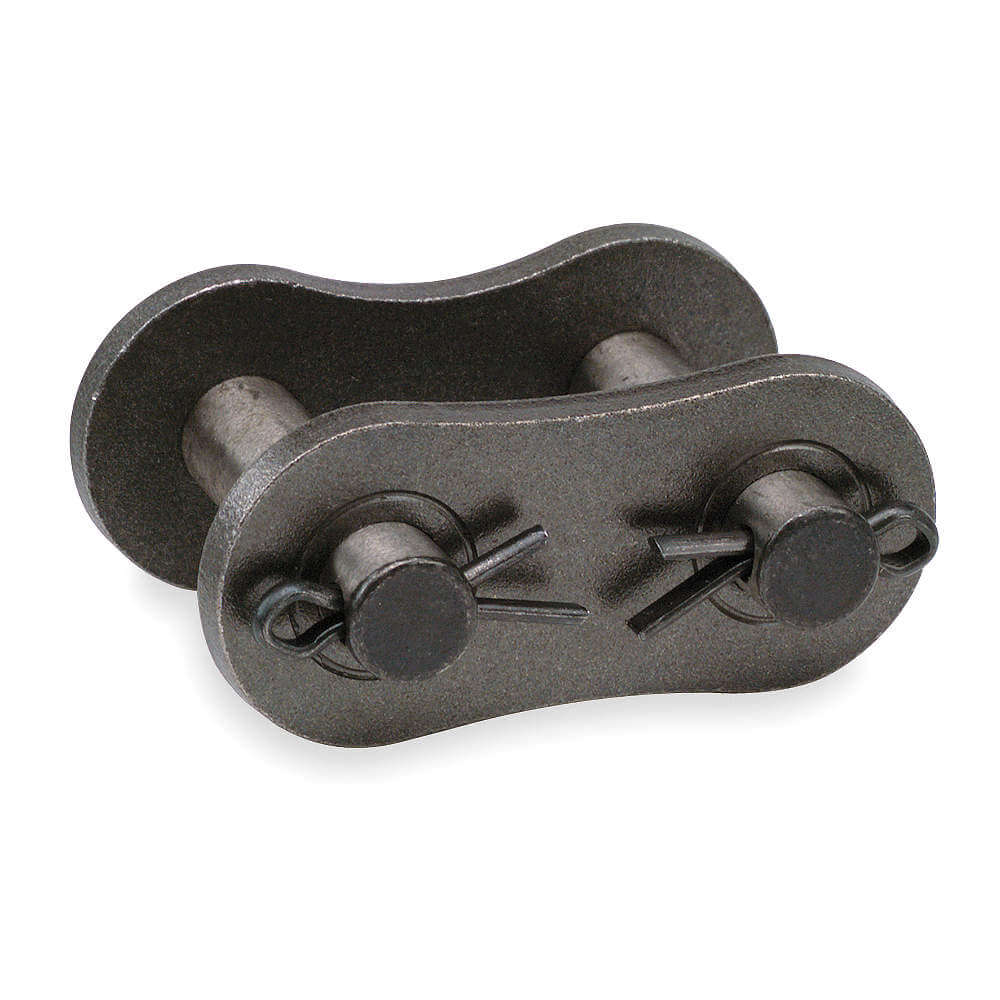

120 CONNECTING LINK | 1 1/2" | 120 | 37480 lbf. | 0.437" | 2 1/8" | Connecting Link | 3/16" | 7/16" | €28.27 | |
|
140 CONNECTING LINK | 1 3/4" | 140 | - | 1/2" | 2 5/16" | Connecting Link | 7/32" | 1/2" | €41.27 | |
|
160 CONNECTING LINK | 2" | 160 | 60630 lbf. | 0.562" | 2 45/64" | Connecting Link | 1/4" | 9/16" | €62.80 | |
|
120 OFFSET LINK | 1 1/2" | 120 | 37480 lbf. | 0.437" | 2 1/8" | Offset | 3/16" | 7/16" | €65.80 | |
|
160 OFFSET LINK | 2" | 160 | 60630 lbf. | 0.562" | 2 45/64" | Offset | 1/4" | 9/16" | €159.82 | |
 |

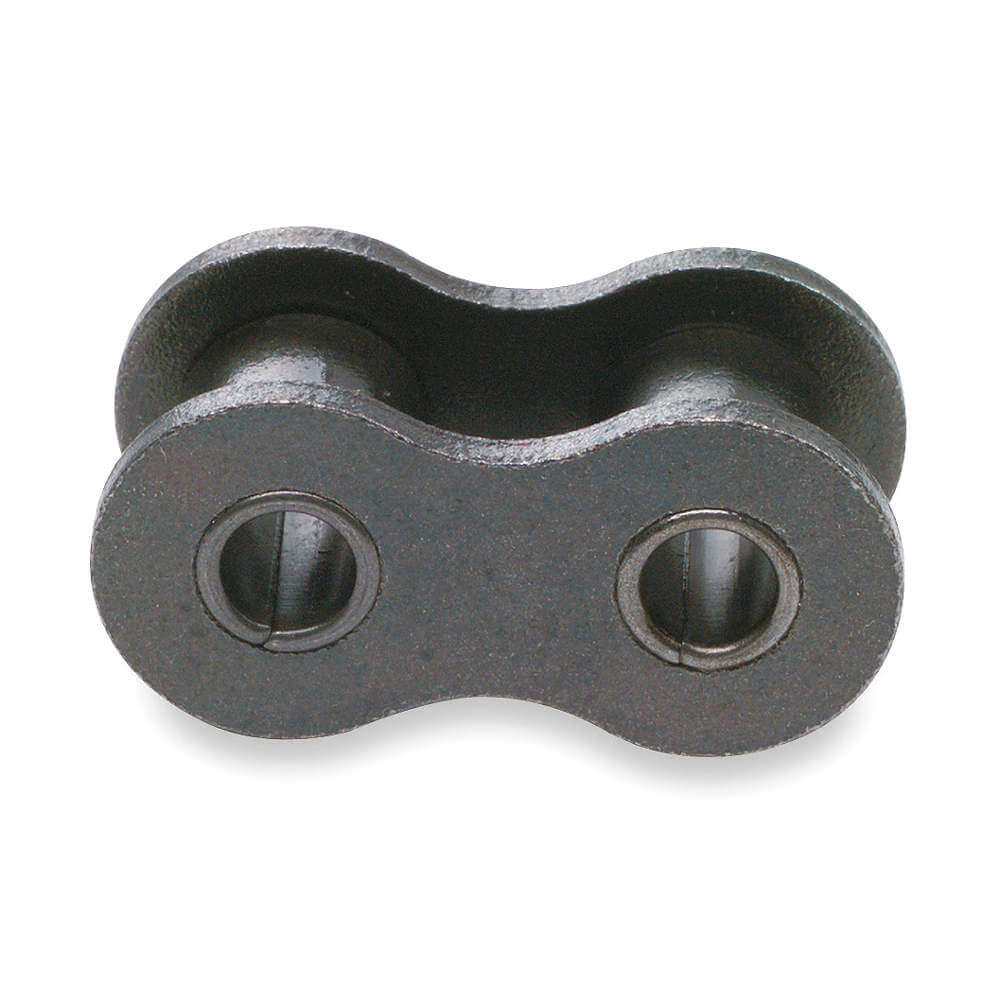

120 ROLLER LINK | 1 1/2" | 120 | 37480 lbf. | Pinless | 2 1/8" | Adding | 3/16" | 7/16" | €33.17 | |
|
140 ROLLER LINK | 1 3/4" | 140 | 48510 lbf. | Pinless | 2 5/16" | Adding | 7/32" | 1/2" | €47.43 |
