TRITAN UCFL201-8 Flange Bearing 2-Bolt Ball 1/2 Bore
Item: AH7JYJModel: UCFL201-8Cross Ref: 36UY60
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 2-Bolt Flange Bearing |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 3/8" |
| Bore Diameter | 1/2" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 2877 lbf. |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device, Cast-Iron Housing, Dual Heavy-Duty Slinger Type Contact Seals, Standard Duty Square Flange Unit, Set Screw Locking, Triple Lip Seals (R3 Suffix) Optional, Wide Inner Ring Bearing |
| Finish | Painted |
| Flange Thickness | 7/16" |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC201-8 |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 3 35/64" |
| Mount Hole Size | 15/32" |
| Mounting Bolt Size | 3/8" |
| Mounting Hole Center To Center | 76.5 mm |
| Number Of Mount Holes | 2 |
| Overall Height | 1 5/16" |
| Overall Length | 4 7/16" |
| Overall Width | 2 3/8" |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 1495 lbs. |
| Static Radial Load Capacity | 1494 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 11.27 |
| Ship width (cm) | 6.03 |
| Country of Origin | CN |
Product Variants
| Product | Model | Housing Type | Shaft Locking Type | Housing Material | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Flange Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

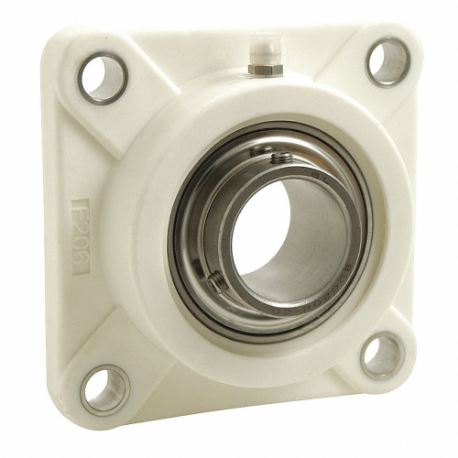

UCFPL206-18SS | Square | Set Screws | Polymer | Stainless Steel | 4 7/32" | 1 1/2" | 4 7/32" | 1 3/16" | €254.29 | |
 |

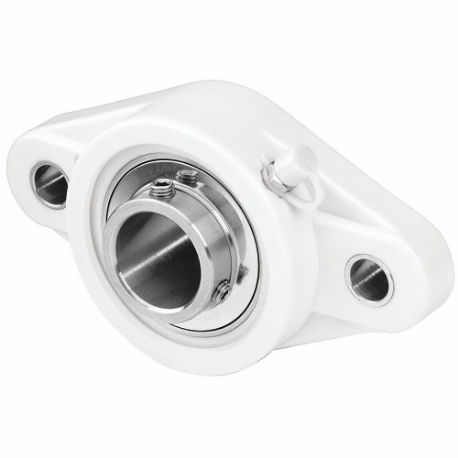

UCFLPL205-16SS | Rhombus | Set Screws | Polymer | Stainless Steel | 5 5/32" | 1 11/32" | 2 47/64" | 1 1/8" | €178.07 | |
 |

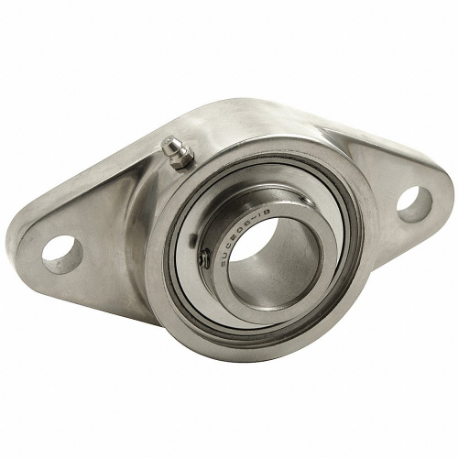

UCFLSS205-16SS | Rhombus | Set Screws | Stainless Steel | Stainless Steel | 5 1/8" | 1 13/32" | 2 11/16" | 1/2" | €263.33 | |
|
UCFLSS204-12SS | Rhombus | Set Screws | Stainless Steel | Stainless Steel | 4 7/16" | 1 19/64" | 2 3/8" | 7/16" | €264.27 | |
|
UCFLPL206-20SS | Rhombus | Set Screws | Polymer | Stainless Steel | 5 53/64" | 1 1/2" | 3 5/32" | 1 3/16" | €230.97 |
