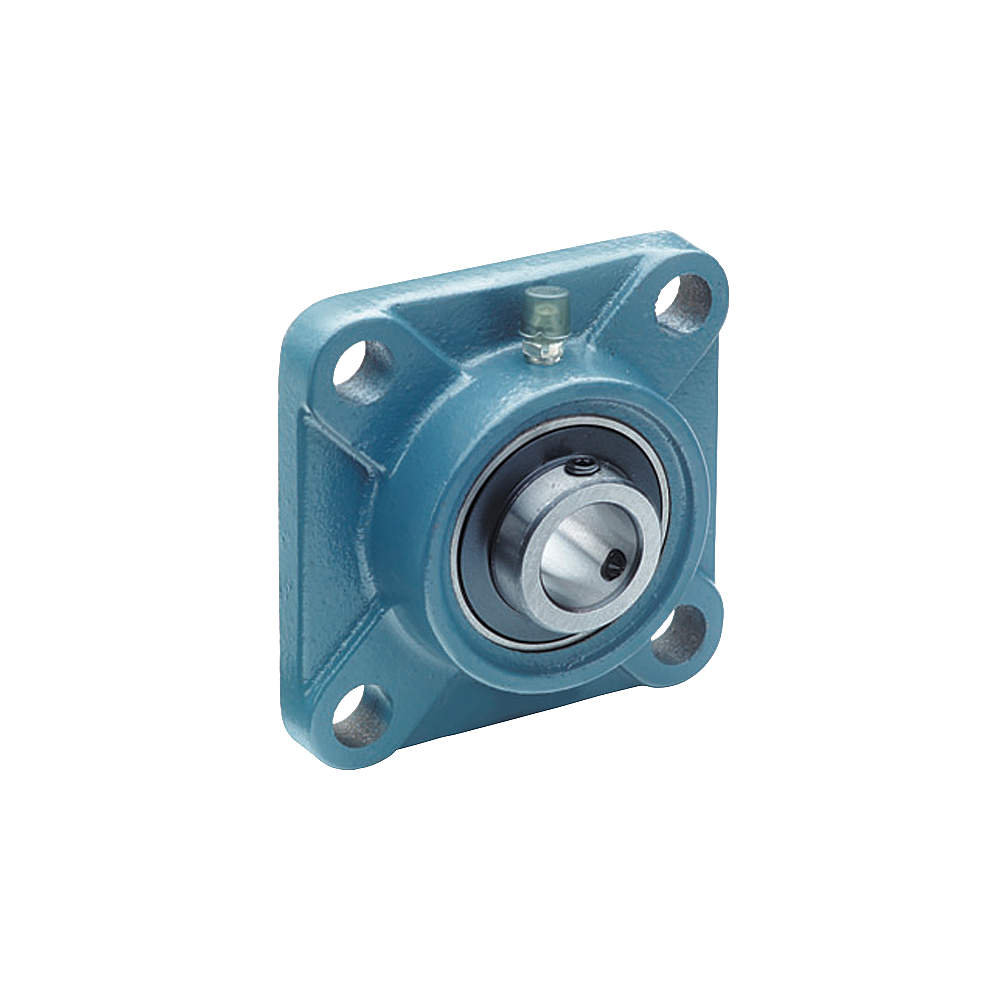

TRITAN UCF207-23 Flange Bearing 4-Bolt Ball 1-7/16 Bore
Item: AH7JWYModel: UCF207-23Cross Ref: 36UY24
7 In Stock
Ships within 2 days via
10.00% off
€96.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 4-Bolt Flange Bearing |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 7/16" |
| Bore Dia. | 1 7/16" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 5777 lbf. |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device, Cast-Iron Housing, Dual Heavy-Duty Slinger Type Contact Seals, Standard Duty Square Flange Unit, Set Screw Locking, Triple Lip Seals (R3 Suffix) Optional, Wide Inner Ring Bearing |
| Finish | Painted |
| Flange Thickness | 5/8" |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Square |
| Included Bearing | UC207-23 |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication | Shell Alvania RL2 Or Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Height | 3 5/8" |
| Mount Hole Center-to-center Length | 3 5/8" |
| Mount Hole Size | 35/64" |
| Mounting Bolt Size | 7/16" |
| Mounting Hole Center To Center | 92 mm |
| Number Of Mount Holes | 4 |
| Overall Height | 4 39/64" |
| Overall Length | 4 39/64" |
| Overall Width | 1 3/4" |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 3439 lbs. |
| Static Radial Load Capacity | 3439 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
Shipping Info:
| Ship weight (kg) | 1.3 |
| Ship height (cm) | 11.71 |
| Ship length (cm) | 11.71 |
| Ship width (cm) | 4.45 |
| Country of Origin | CN |
Product Variants
| Model | Shaft Locking Type | Overall Width | Overall Height | Overall Length | Flange Thickness | Mount Hole Center-to-center Length | Mount Hole Center-to-center Height | Mounting Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UCF201-8 | Set Screw | 1 5/16" | 3 3/8" | 3 3/8" | 15/32" | 2 17/32" | 2 17/32" | 3/8" | €55.60 | |
| UCF202-10 (47MM) | Set Screw | 1 5/16" | 3 3/8" | 3 3/8" | 15/32" | 2 17/32" | 2 17/32" | 3/8" | €57.82 | |
| UCF202-10S (40MM) | Set Screw | 1 7/32" | 3" | 3" | 7/16" | 2 1/8" | 2 1/8" | 3/8" | €57.48 | |
| UCF204-12 | Set Screw | 1 5/16" | 3 3/8" | 3 3/8" | 15/32" | 2 17/32" | 2 17/32" | 3/8" | €50.25 | |
| UCF204-20MM | Set Screw | 33.3 mm | 85.7 mm | 85.7 mm | 11.9 mm | 64.2 mm | 64.2 mm | M10 | €64.94 | |
| UCF205-14 | Set Screw | 1 13/32" | 3 3/4" | 3 3/4" | 35/64" | 2 3/4" | 2 3/4" | 3/8" | €57.36 | |
| UCF205-16 | Set Screw | 1 13/32" | 3 3/4" | 3 3/4" | 35/64" | 2 3/4" | 2 3/4" | 3/8" | €65.77 |
