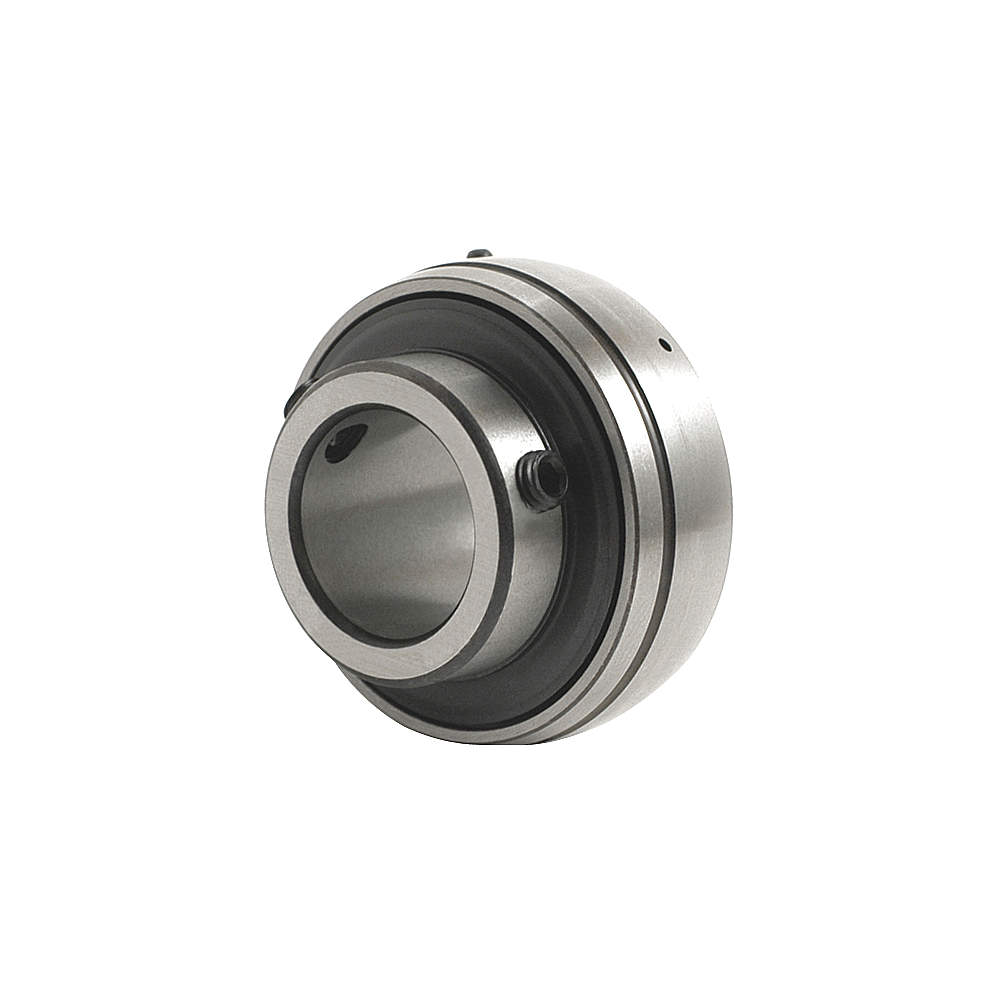

TRITAN UC211-35 Insert Ball Bearing UC 2-3/16 Diameter 9779.19lb
Item: AH7KJJModel: UC211-35Cross Ref: 36VA96
7 In Stock
Ships within 2 days via
10.00% off
€60.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Ball Bearing |
| Application | Commercial, Industrial |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | UC211-35 |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 2.187" |
| Bore Diameter | 2 3/16" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 9779.19 lbf. |
| Dynamic Radial Load Capacity | 9779.19 lbf. |
| Element Material | Alloy Steel |
| Features | Additional Oil Hole On Opposite Side, Anti-Rotation Device, Wide Inner Ring Bearing |
| Finish | Black Oxide |
| For Environment | Chemical, Food And Beverage |
| Includes | Set Screws |
| Insert Shape | Spherical |
| Inside Dia. | 2 3/16" |
| Load Direction | Radial |
| Lock Type | Setscrew |
| Lubrication Openings | Groove With Oil Hole |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Outer Ring Width | 0.984" |
| Outside Dia. | 3 15/16" , 3 59/64" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 6564.42 lbf. |
| System Of Measurement | Inch |
| Width | 63/64" |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 9.96 |
| Ship length (cm) | 9.96 |
| Ship width (cm) | 2.5 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Outside Dia. | Outer Ring Width | Inside Dia. | Dynamic Load Capacity | Dynamic Radial Load Capacity | Static Radial Load Capacity | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UC201-8 | 1/2" | 1 27/32" | 0.669" | 1/2" | 2877.55 lbf. | 2877.55 lbf. | 1495 lbf. | Set Screws | €25.25 | |
| UC202-10 | 5/8" | 1 27/32" | 0.629" | 5/8" | 2877.55 lbf. | 2877.55 lbf. | 1495 lbf. | Set Screws | €37.39 | |
| UC204-12 | 3/4" | 1 27/32" | 0.629" | 3/4" | 2877.55 lbf. | 2877.55 lbf. | 1495 lbf. | Set Screws | €18.31 | |
| UC204-20MM | 0.781" | 1 3/16" | 17 mm | 25/32" | 2877.55 lbf. | 12800N | 6650N | Set Screws | €26.82 | |
| UC205-14 | 7/8" | 2 3/64" | 0.669" | 7/8" | 3147.33 lbf. | 3147.33 lbf. | 1764.75 lbf. | Set Screws | €22.78 | |
| UC205-15 | 0.938" | 2 3/64" | 0.669" | 15/16" | 3147.33 lbf. | 3147.33 lbf. | 1764.75 lbf. | Set Screws | €38.78 | |
| UC205-16 | 1" | 2 3/64" | 0.669" | 1" | 3147.33 lbf. | 3147.33 lbf. | 1764.75 lbf. | Set Screws | €23.99 |
