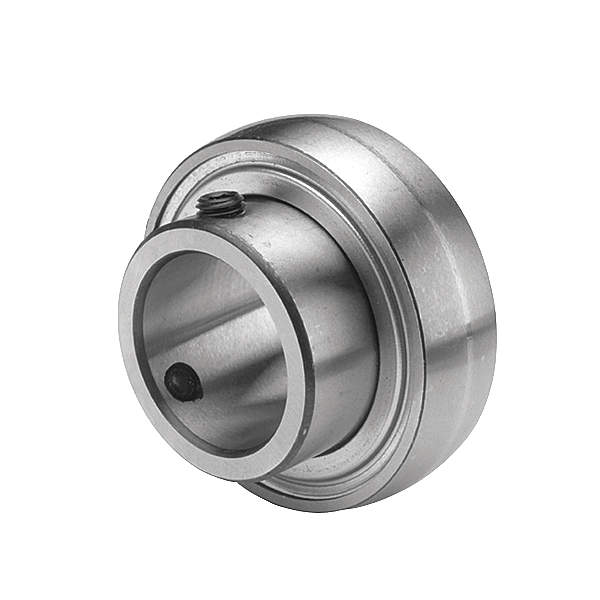

TRITAN SB206-19 Insert Ball Bearing SB 1-3/16 Diameter Setscrew
Item: AH7KGRModel: SB206-19Cross Ref: 36VA57
7 In Stock
Ships within 2 days via
10.00% off
€21.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insert Ball Bearing |
| Application | Commercial, Industrial |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | SB206-19 |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 1.187" |
| Bore Diameter | 1 3/16" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 4383.77 lbf. |
| Dynamic Radial Load Capacity | 4383.77 lbf. |
| Element Material | Alloy Steel |
| Features | Compact In Design, High Quality Gray Cast Iron, Long-Lasting Performance |
| For Environment | Chemical, Food And Beverage |
| Includes | Set Screws |
| Insert Shape | Spherical |
| Inside Dia. | 1 3/16" |
| Load Direction | Radial |
| Lock Type | Setscrew |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Outer Ring Width | 5/8" |
| Outside Dia. | 2 7/16" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 2540 lbf. |
| System Of Measurement | Inch |
| Width | 5/8" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.19 |
| Ship length (cm) | 6.19 |
| Ship width (cm) | 1.59 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Outside Dia. | Outer Ring Width | Inside Dia. | Dynamic Load Capacity | Dynamic Radial Load Capacity | Static Radial Load Capacity | Shaft Locking Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SB201-8 | 1/2" | 1 9/16" | 0.468" | 1/2" | 2158.17 lbf. | 2158.17 lbf. | 1034 lbf. | Set Screws | €19.49 | |
| SB201-8G | 1/2" | 40 mm | 0.472" | 1/2" | 2158.17 lbf. | 2158 lbf. | 1034 lbf. | Set Screws | €22.28 | |
| SB202-10 | 5/8" | 1 9/16" | 0.468" | 5/8" | 2158.17 lbf. | 2158.17 lbf. | 1034 lbf. | Set Screws | €19.61 | |
| SB202-10G | 5/8" | 1 9/16" | 0.472" | 5/8" | 2158.17 lbf. | 2158 lbf. | 1034 lbf. | Set Screws | €19.49 | |
| SB204-12 | 3/4" | 1 27/32" | 0.546" | 3/4" | 2877.55 lbf. | 2877.55 lbf. | 1494 lbf. | Set Screws | €16.89 | |
| SB204-12G | 3/4" | 1 27/32" | 0.551" | 3/4" | 2877.55 lbf. | 2877 lbf. | 1494 lbf. | Set Screws | €16.62 | |
| SB205-14 | 7/8" | 2 3/64" | 0.593" | 7/8" | 3147.33 lbf. | 3147.33 lbf. | 1764 lbf. | Set Screws | €21.29 |
