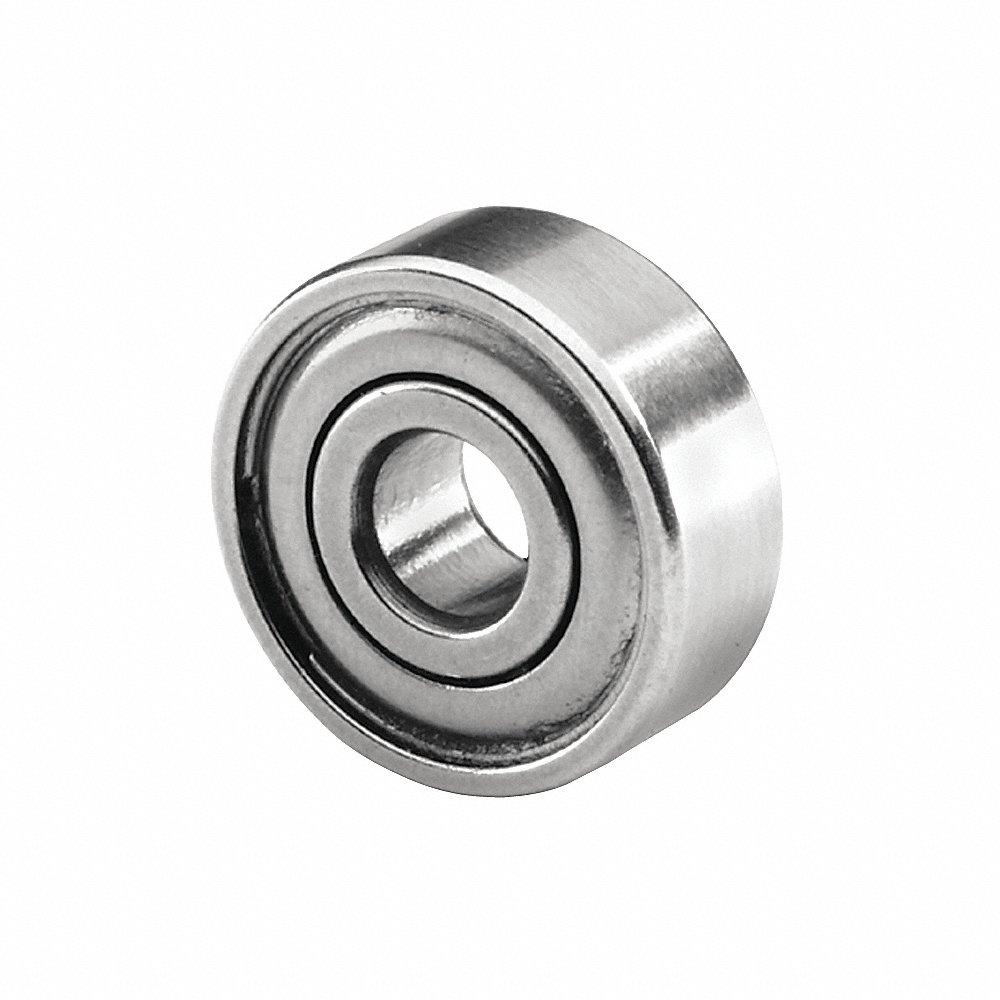

TRITAN R1980 ZZ SRL Miniature Ball Bearing, 698, Dbl Shield, 8 mm Bore, 19 mm OD, 6 mm Width, Alloy Steel Ring
Get it by Thursday, Feb 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€10.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Miniature Ball Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Bearing Industry No. | 698 |
| Bore Dia. | 8 mm |
| Cage Material | Stainless Steel |
| Cage Type | Shielded |
| Closure | Double Shielded |
| Closure & Seal Type | Double Shielded |
| Dynamic Load Capacity | 472 lbf. |
| Dynamic Radial Load Capacity | 472 lbf. |
| Flange Dia. | Not Applicable |
| Flange Thickness | Not Applicable |
| Flange Type | Non Flanged |
| For Environment | Caustic, Chemical, Food And Beverage, Pharmaceutical, Poultry |
| Includes Retaining Ring | No |
| Lubricant Material | Multitemp Grease |
| Max. Speed | 35000 RPM |
| Max. Temp. | 302°F |
| Min. Temp. | -40°F |
| Number Of Rows | 1 |
| Outer Ring Width | 6 mm |
| Outside Dia. | 19 mm |
| Resistance Properties | Corrosion Resistant |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Shield Material | Stainless Steel |
| Static Radial Load Capacity | 192 lbf. |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.9 |
| Ship length (cm) | 1.9 |
| Ship width (cm) | 0.6 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Closure | Outside Dia. | Ring Material | Outer Ring Width | Cage Material | Industry Number | Retaining Ring Groove | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1657 ZZ PRX | 1 1/4" | Double Shielded | 2.562" | Alloy Steel | 0.687" | Steel | 1657ZZ | No | €21.42 | |
| SSRI1038 ZZ SRL | 3/8" | Double Shielded | 5/8" | Stainless Steel | 0.156" | Stainless Steel | - | No | €20.58 | |
| SSRI1212 ZZ SRL | 1/2" | Double Shielded | 3/4" | Stainless Steel | 0.156" | - | - | No | €20.58 | |
| SSRI614 ZZ SRL | 1/4" | Double Shielded | 3/8" | Stainless Steel | 1/8" | - | - | No | €11.09 | |
| SSRI8516 ZZ SRL | 0.312" | Double Shielded | 1/2" | Stainless Steel | 0.156" | - | - | No | €12.12 | |
| RI814 ZZ PRX | 1/4" | Double Shielded | 1/2" | Alloy Steel | 0.187" | Stainless Steel | - | No | €10.14 | |
| SSRI814 ZZ SRL | 1/4" | Double Shielded | 1/2" | Stainless Steel | 0.187" | - | - | No | €11.57 |
