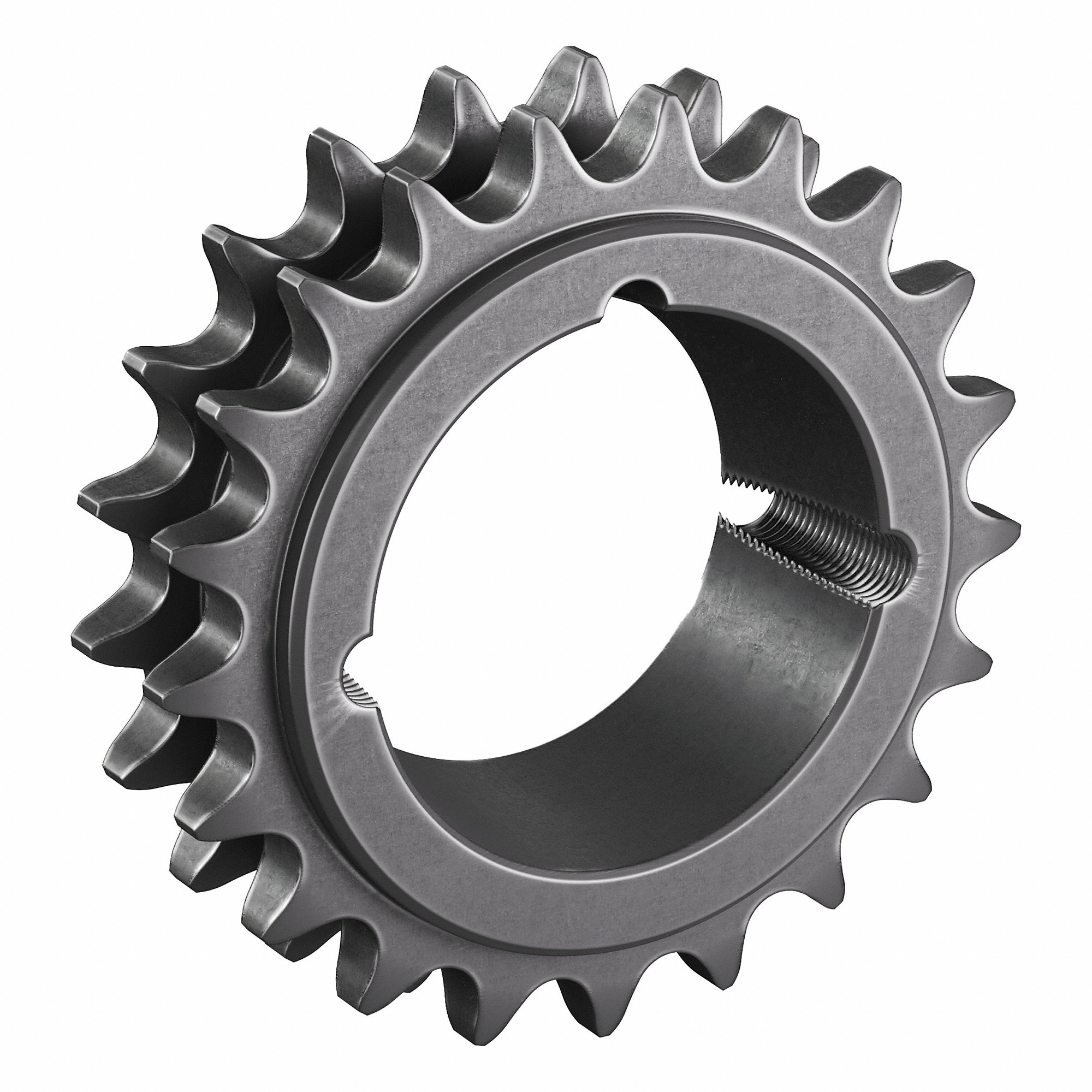

TRITAN D80BTL21H Bushed Roller Chain Sprocket
Item: CU7AMGModel: D80BTL21HCross Ref: 55WE99
7 In Stock
Ships within 2 days via
€477.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Bushing Code | 3020 |
| Chain Number | 80 |
| Finish | Black Oxide |
| For Bushing Type | Split Taper |
| For Chain Number | 80-2 |
| For Chain Pitch | 1" |
| For No. Of Strands | 2 |
| Hub Dia. | 5 9/16" , 5.562" |
| Hub Projection | 0.29" |
| Hub Type | One Side |
| Length Through Bore | 2" |
| Material | Steel |
| Material-sprockets | Steel |
| Max. Bore Dia. | 3" |
| No. Of Teeth | 21 |
| Outside Dia. | 7.235" |
| Pitch Dia. | 6.71" |
| Required Bushing Series | 3020 Series |
| Roller Chain Sprockets | Roller Chain Sprocket |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.557" |
| Width Across Tooth Sets | 1.71" |
Shipping Info:
| Ship weight (kg) | 3.96 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.38 |
| Ship width (cm) | 18.38 |
| Country of Origin | CN |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | For Chain Pitch | For Chain Number | Max. Bore Dia. | Tooth Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 100BTL19H | 7.594" | 19 | 1 3/4" | 4 1/2" | 1 1/4" | 100.0 | 2 1/2" | 0.692" | €347.00 | |
| 100BTL15H | 6.012" | 15 | 1 3/4" | 4 1/4" | 1 1/4" | 100.0 | 2 1/2" | 0.692" | €272.72 | |
| 100BTL30H | 11.958" | 30 | 2" | 5 1/4" | 1 1/4" | 100.0 | 3" | 0.692" | €587.83 | |
| 120BTL14H | 6.741" | 14 | 1 3/4" | 4 1/4" | 1 1/2" | 120.0 | 2 1/2" | 0.924" | €430.03 | |
| 40BTL14H | 2.247" | 14 | 7/8" | 1 13/16" | 1/2" | 40.0 | 1" | 0.284" | €49.03 | |
| 80BTL11H | 3.549" | 11 | 1 1/2" | 2 15/32" | 1" | 80.0 | 1 1/4" | 0.575" | €106.64 | |
| 60BTL13H | 3.134" | 13 | 1" | 2.469" | 3/4" | 60.0 | 1" | 0.459" | €70.96 |
