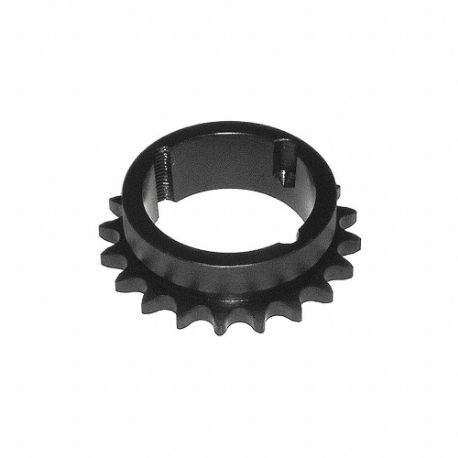

TRITAN 40BTL54 Bushed Roller Chain Sprocket
Item: CU7ANRModel: 40BTL54Cross Ref: 55VZ36
7 In Stock
Ships within 2 days via
10.00% off
€201.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Bushing Code | 1610 |
| Chain Number | 40 |
| Finish | Black Oxide |
| For Bushing Type | Split Taper |
| For Chain Number | 40.0 |
| For Chain Pitch | 1/2" |
| For Number Of Strands | 1 |
| Hub Dia. | 3" |
| Hub Diameter | 3" |
| Hub Projection | 0.716" |
| Hub Type | One Side |
| Industry Chain Size | 40 |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Length Through Bore | 1" |
| Material | Steel |
| Material - Sprockets | Steel |
| Maximum Bore Dia. | 1 5/8" |
| Number Of Teeth | 54 |
| Outside Dia. | 8.89" |
| Pitch Dia. | 8.599" |
| Required Bushing Series | 1610 Series |
| Teeth Heat Treatment | Not Hardened |
| Tooth Width | 0.284" |
| Width Across Tooth Sets | Not Applicable |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.58 |
| Ship width (cm) | 22.58 |
| Country of Origin | CN |
Product Variants
| Model | For Chain Number | For Chain Pitch | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Number Of Strands | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 100BTL19H | 100.0 | 1 1/4" | 19 | 7.594" | 8.241" | 1 3/4" | 1 | One Side | €418.28 | |
| 100BTL15H | 100.0 | 1 1/4" | 15 | 6.012" | 6.631" | 1 3/4" | 1 | One Side | €328.71 | |
| 100BTL30H | 100.0 | 1 1/4" | 30 | 11.958" | 12.643" | 2" | 1 | One Side | €759.21 | |
| 120BTL14H | 120.0 | 1 1/2" | 14 | 6.741" | 7.472" | 1 3/4" | 1 | One Side | €562.82 | |
| 40BTL14H | 40.0 | 1/2" | 14 | 2.247" | 2.49" | 7/8" | 1 | One Side | €61.48 | |
| 80BTL11H | 80.0 | 1" | 11 | 3.549" | 4.006" | 1 1/2" | 1 | One Side | €119.80 | |
| 60BTL13H | 60.0 | 3/4" | 13 | 3.134" | 3.493" | 1" | 1 | One Side | €83.84 |
