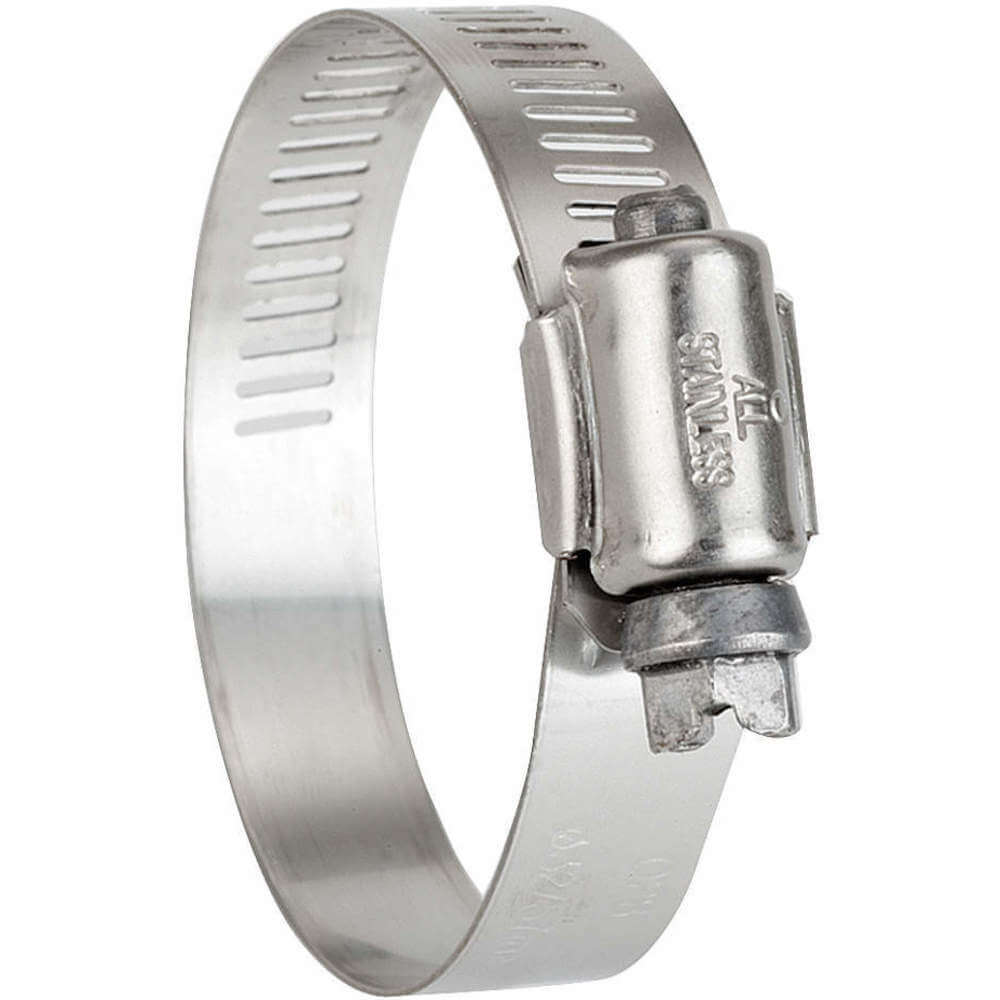

TRIDON 6756170 Hose Clamp 3 Min Diameter Sae 56
Item: AA7UHVModel: 6756170Cross Ref: 16P307
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Worm Gear Hose Clamp |
| Band Length | 0.5" |
| Band Material | Stainless Steel |
| Band Material Grade | Grade 201 |
| Band Thickness | 0.022" |
| Band Type | Perforated |
| Band Width | 1/2" |
| Clamp Maximum Inside Diameter | 4" |
| Clamp Minimum Inside Diameter | 2" |
| Clamp Type | Worm Gear Clamp |
| Drive Type | Slotted Hex |
| Fastener Housing Material | 201 Stainless Steel |
| For Environment | Automotive, Household, Industrial |
| For Maximum Outside Diameter | 4" |
| Hex Size | 5/16" |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 201/301 |
| Install Torque | 35 lbs.-in. |
| Maximum Operating Temperature | 500°F |
| Metric Dia. Max. | 101 mm |
| Metric Dia. Min. | 76 mm |
| Min. Clamp Dia. | 3" |
| Sae Number | 56 |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 410 |
| Screw Size | 5/16" |
| Series | HY-GEAR Series |
| Standards | Iatf16949, Iso 14001, Iso 9001 |
| System Of Measurement | Imperial |
| Thickness | 0.022" |
| Torque | 60 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 11.68 |
| HS code | 7326908588 |
| Country of Origin | US |
Product Details:
- Band Slots (Rectangular)
- Sub-Brand : Ideal
Product Variants
| Model | Sae Number | Band Width | Housing Material | Band Thickness | Torque | Screw Size | Metric Dia. Max. | Metric Dia. Min. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4117570 | 175 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 45 mm | 25 mm | 10 | €122.03 | |
| 4120070 | 212 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 54 mm | 32 mm | 10 | €122.16 | |
| 4125070 | 262 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 67 mm | 45 mm | 10 | €122.59 | |
| 4130070 | 312 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 79 mm | 57 mm | 10 | €125.24 | |
| 4135070 | 362 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 92 mm | 70 mm | 10 | €126.14 | |
| 4140070 | 412 | 5/8" | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 105 mm | 83 mm | 10 | €128.20 | |
| 4145070 | 462 | - | Stainless Steel | 0.028" | 125 lbs.-in. | 3/8" | 117 mm | 95 mm | 10 | €129.25 |
