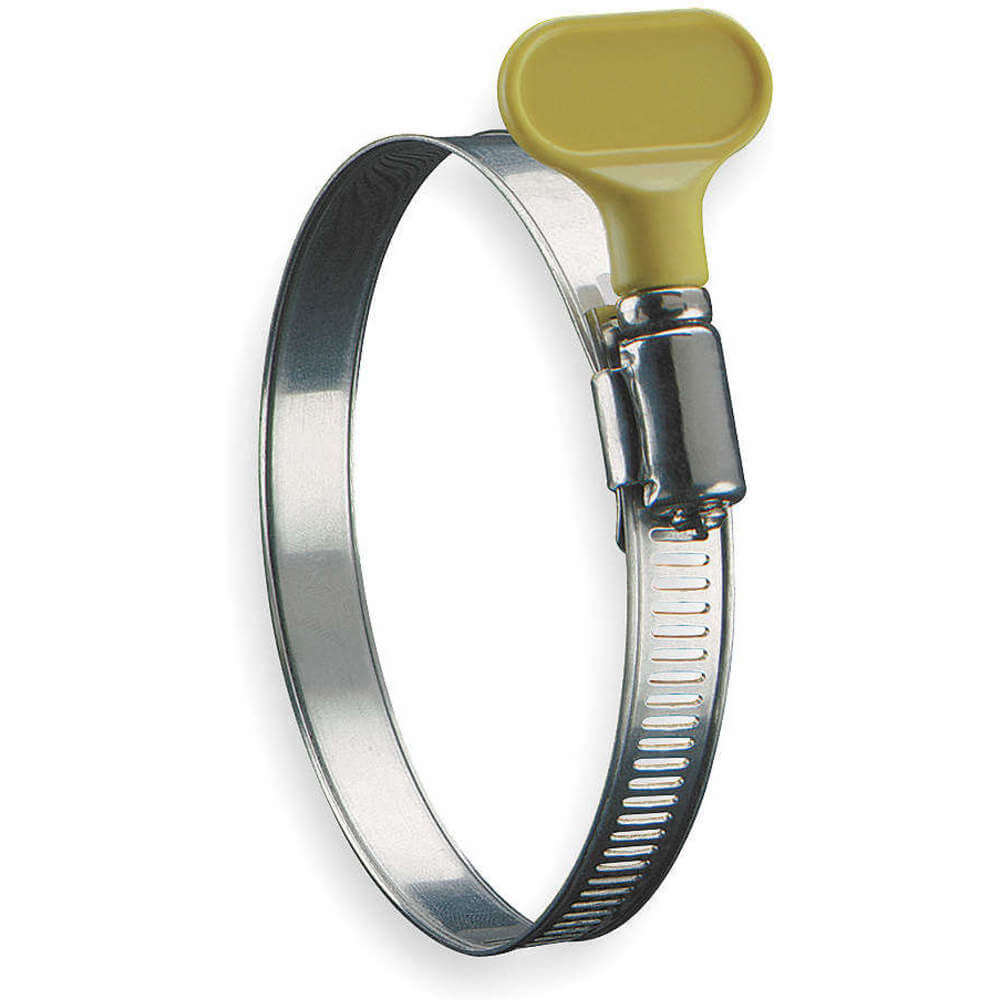

TRIDON 5Y012 Hose Clamp Stainless Steel Minimum Diameter 1/2 Sae 12
Item: AB4EPEModel: 5Y012Cross Ref: 1XHE2
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Worm Gear Hose Clamp |
| Band Length | 0.5" |
| Band Material | Stainless Steel |
| Band Material Grade | Grade 201 |
| Band Thickness | 0.023" |
| Band Type | Perforated |
| Band Width | 1/2" |
| Clamp Maximum Inside Diameter | 1 1/4" |
| Clamp Minimum Inside Diameter | 1/2" |
| Clamp Type | Worm Gear Clamp |
| Drive Type | Turn Key |
| Fastener Housing Material | 301 Stainless Steel |
| For Maximum Outside Diameter | 1 1/4" |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 201/301 |
| Install Torque | 35 lbs.-in. |
| Max. Clamp Dia. | 1 1/4" |
| Maximum Operating Temperature | 500°F |
| Metric Dia. Max. | 31.75 mm |
| Metric Dia. Min. | 13 mm |
| Min. Clamp Dia. | 1/2" |
| Resistance Properties | Tamper Resistant |
| Sae Number | 12 |
| Screw Material | Steel |
| Screw Material Finish | Zinc Plated |
| Screw Size | 5/16" |
| Series | TURN-KEY Series |
| Standards | Iatf16949, Iso 14001, Iso 9001 |
| System Of Measurement | Imperial |
| Thickness | 0.023" |
| Torque | 35 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.86 |
| HS code | 7326908588 |
| Country of Origin | MX |
Product Details:
- Band Slots (Rectangular)
- Sub-Brand : Ideal
Product Variants
| Model | Sae Number | Band Thickness | Torque | Metric Dia. Max. | Metric Dia. Min. | Housing Material Grade | Band Width | Band Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6Y004 | 4 | 0.023" | 30 lbs.-in. to 35 lbs.-in. | 15.87 mm | 6.35 mm | Grade 201/301 | 1/2" | Stainless Steel | 10 | €21.12 | |
| 5Y020 | 20 | 0.023" | 35 lbs.-in. | 38.1 mm | 17.46 mm | Grade 201/301 | 1/2" | Stainless Steel | 10 | €28.27 | |
| 5Y028 | 28 | 0.023" | 35 lbs.-in. | 57.15 mm | 31.75 mm | Grade 201/301 | 1/2" | Stainless Steel | 10 | €31.89 | |
| 5Y036 | 36 | 0.023" | 35 lbs.-in. | 69.85 mm | 44.45 mm | Grade 201/301 | 1/2" | Stainless Steel | 10 | €37.73 | |
| 5Y048 | 48 | 0.023" | 35 lbs.-in. | 88.9 mm | 63.5 mm | Grade 201/301 | 1/2" | Stainless Steel | 10 | €35.77 | |
| 5Y064V | 64 | 0.022" | 30 lbs.-in. | 114 mm | 64 mm | Grade 201 | 1/2" | Stainless Steel | 2 | €11.68 |
