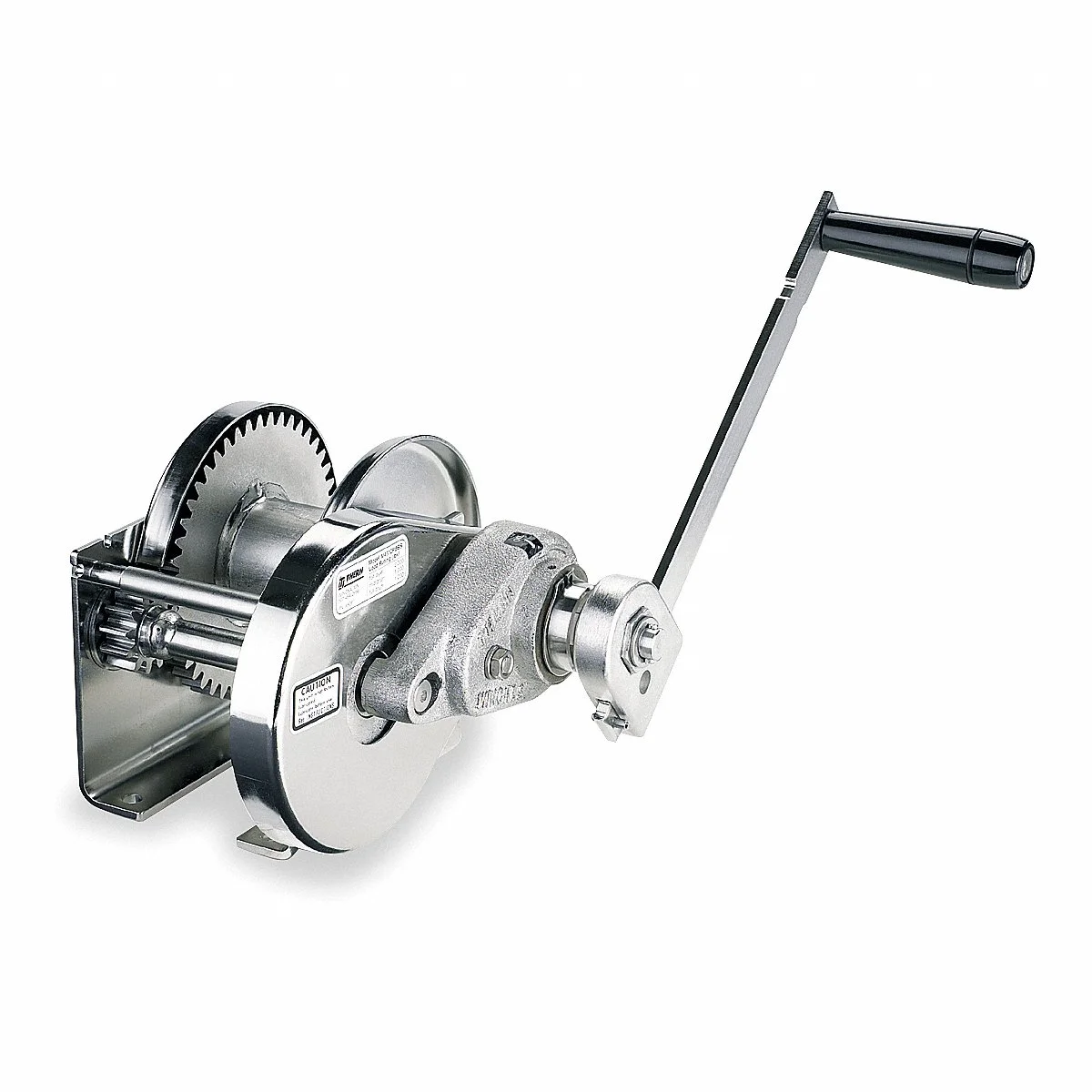

THERN M4042PBSS Spur Gear Hand Winch With Brake, Single Gear, 1000 Lbs., Stainless Steel
Get it by Friday, Dec 19
10.00% off
€1,903.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Winch |
| 1st Layer Load Capacity | 1000 lbs. |
| 1st Layer Load Capacity | 1000 lb. |
| Application | For Lifting |
| Body Finish | Electropolished |
| Body Material | Stainless Steel |
| Body Type | Enclosed Gears |
| Brake | Brake Included |
| Clutch | No Clutch |
| Clutch Type | No Clutch |
| Color | Silver |
| Compatible Line | Synthetic Rope, Wire Rope |
| Control Type | Manual Handle |
| Drum Capacity For 1/4 In. Cable | 59 ft. |
| Drum Capacity For 3/16 In. Cable | 110 ft. |
| Drum Capacity Per Line Diameter | 110 ft. per 3/6", 240 ft. per 1/8", 59 ft. per 1/4 in |
| Drum Capacity Per Strap Width | Not Applicable |
| Frame Color | Natural |
| Frame Finish | Electropolished |
| Frame Material | Stainless Steel |
| Fully Wound Load Capacity | 600 lbs. |
| Gear Ratio | 3.83:1 |
| Gear Type | Spur |
| Handle Attachment Type | Removable |
| Handle Length | 11" |
| Handle Mount Location | Side |
| Included Components | Mechanical Brake |
| Max. Strap Length | Not Applicable |
| Max. Strap Width | Not Applicable |
| Maximum Cable Diameter | 3/10" |
| Maximum Cable Length | 110 ft. |
| Maximum Line Diameter | 0.3" |
| Maximum Pulling Capacity | 1000 lbs. |
| Number Of Gear Settings | 1 |
| Operation | Lifting, Pulling |
| Overall Height | 13 1/2" |
| Overall Length | 8 1/4" |
| Overall Width | 13 25/32" |
| Product Datasheet | thern-m4312.pdf |
| Recommended Line Dia. | 0.3" |
| Recommended Line Diameter | 3/10" |
| Winch Type | Lifting, Pulling |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 35.03 |
| HS code | 8425390100 |
| Country of Origin | US |
Product Details:
- Brake Included (Yes)
- Drum Capacity for 1/8 In. Cable (240 ft.)
Documentation:
Product Variants
| Product | Model | Operation | Gear Ratio | Brake | Color | Fully Wound Load Capacity | Overall Height | Overall Length | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M4022 | Lifting & Pulling, Pulling | 2.85:1 | Brake Not Included | Bronze | - | 13 9/16" | 7 5/16" | 9" | €638.14 | |
 |
M4022PB | Lifting, Pulling | 2.85:1 | Brake Included | Bronze | 500 lbs. | 13 1/8" | 7 5/16" | 12 1/8" | €893.39 | |
 |
M401 | - | - | - | - | - | - | - | - | €209.64 | RFQ
|
 |
M4032 | - | - | - | - | - | - | - | - | €369.60 | RFQ
|
 |
M4032PB | - | - | - | - | - | - | - | - | €477.99 | RFQ
|
