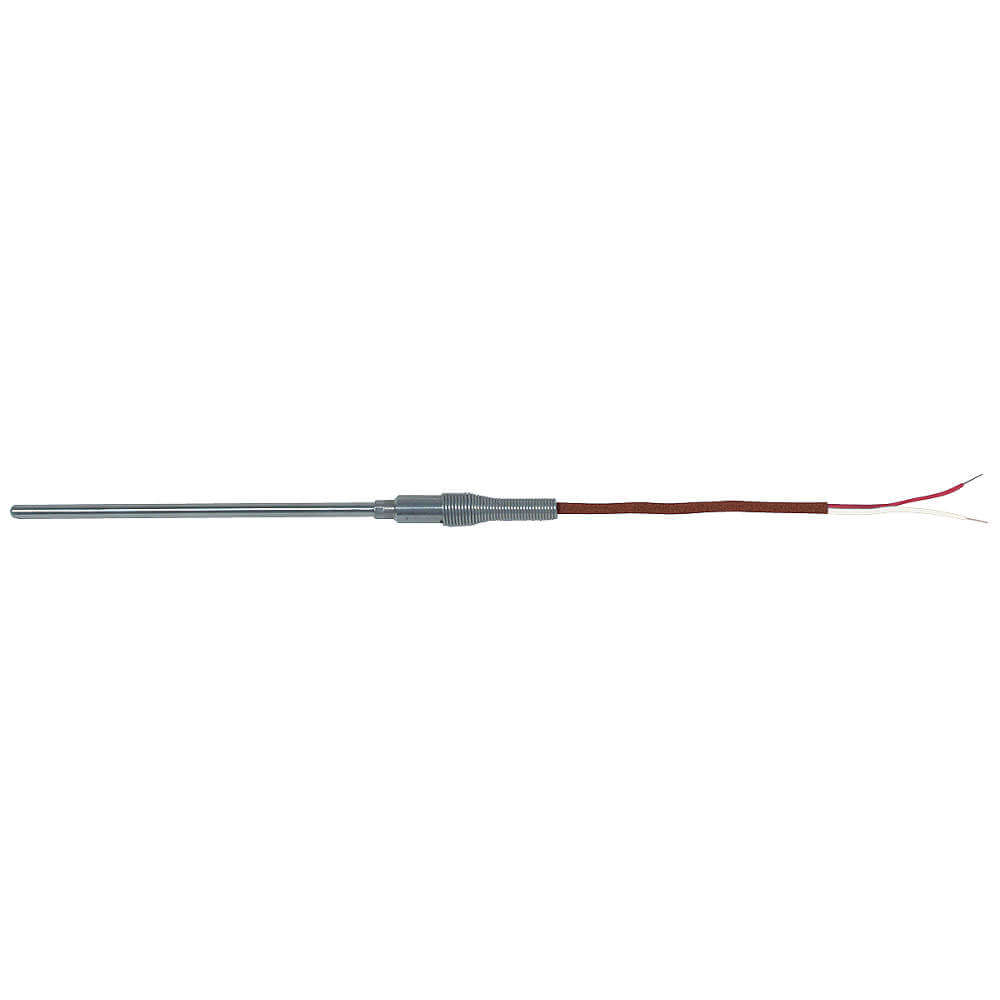

TEMPCO MTA01331 Thermocouple Probe, Type J, 1/16 x 12 Inch Probe, Ungrounded, Split Leads
Item: AF7EQJModel: MTA01331Cross Ref: 20XJ93
7 In Stock
Type J
1/16" x 12"
Ungrounded
Ships within 2 days via
10.00% off
€46.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermocouple Probe |
| Accuracy | ±2.2°C Or ±0.75% |
| Cable Length | 48" |
| Cable Material | Fep Teflon Insulated Lead |
| Connector Type | Split Leads |
| Error Accuracy (%) | (Over 293 Degrees C) +/-0.75 |
| Error Accuracy (deg. C) | +/-2.2 Below 293 |
| For Air | Yes |
| For Application | Appliances, Duct, Food And Beverage, Hvac, Ovens, Packaging, Pharmaceutical |
| For Gases | Yes |
| For Liquids And Gels | Yes |
| For Solids | Yes |
| For Surfaces | No |
| Grade | Grade 316 |
| Grounded / Ungrounded | Ungrounded |
| Includes Thermowell | No |
| Insulation Material | Magnesium Oxide |
| Junction Type | Ungrounded |
| Lead Length | 4 ft. |
| Material | Magnesium Oxide, PTFE |
| Max. Pressure | 1000 psi |
| Maximum Temperature °c | 760°C |
| Maximum Temperature °f | 1400°F |
| Maximum Wire Gauge | 0.25 mm |
| Minimum Temperature °c | 0°C |
| Minimum Temperature °f | 32°F |
| Plug Or Connector Type | Bare Wire |
| Probe Bend | Straight |
| Probe Dia. | 0.063" |
| Probe Length | 12" |
| Probe Sheath Material | Grade 316 Stainless Steel |
| Probe Size | 1/16" x 12" |
| Probe Tip Dia. | 0.063" |
| Sensor Type | Thermocouple |
| Sheath Size | 0.062" |
| Sheath Size (in.) | 0.062 |
| Sheath Size (in.) | 0.062" |
| Temp. Limit | 1400°F |
| Temp. Limit (deg. F) | 1400 |
| Temperature Range | 32°F to 1400°F |
| Thermocouple Element | 24 AWG |
| Thermocouple Type | Type J |
| Thermocouple Type | J |
| Tip Style | Rounded |
| Type | J |
| Wire Size | 24 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 4.32 |
| HS code | 9032900000 |
| Country of Origin | US |
Product Variants
| Model | Thermocouple Type | Junction Type | Probe Size | Cable Length | Type | Probe Length | Probe Dia. | Head Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TTW00179 | Type J | Grounded | 3/16" x 12" | 6 ft. | J | 12" | 0.188" | - | €42.57 | |
| TTW00180 | Type K | Grounded | 3/16" x 3" | 3 ft. | K | 3" | 0.188" | - | €32.64 | |
| TTW00181 | Type K | Grounded | 3/16" x 6" | 6 ft. | K | 6" | 0.188" | - | €48.58 | |
| TTW00182 | Type K | Grounded | 3/16" x 12" | 6 ft. | K | 12" | 0.188" | - | €58.07 | |
| TCP60089 | Type J | Grounded | 3/16" x 4" | 6 ft. | J | 4" | 0.188" | - | €70.70 | |
| TCP60090 | Type J | Grounded | 3/16" x 4" | 8 ft. | J | 4" | 0.188" | Brass | €85.04 | |
| TCP60091 | Type J | Grounded | 3/16" x 4" | 10 ft. | J | 4" | 0.188" | Brass | €100.23 |
