TELEMECANIQUE SENSORS XSAV11801 Ac/Dc Proximity Motion Detector, 24 to 240 VAC/24 to 210 VDC
Item: CU6EMWModel: XSAV11801Cross Ref: 48T787
7 In Stock
Ships within 2 days via
10.00% off
€341.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Detector |
| Ac Supply Voltage Rating | 24-240V AC |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Cable Length | 2m |
| Case Material | Nickel Plated Brass |
| Dc Supply Voltage Rating | 24-210V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 81 mm |
| Load Current - Maximum | 350 mA |
| Max. Detecting Distance | 81 mm |
| Max. Load Current | 1.5 mA |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Wires | 2 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | NC |
| Output Circuit Type | Ac, DC-Type |
| Output Mode | NC |
| Overall Height | 81 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 30 mm |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Operating Frequency | 100 Hz |
| Proximity Sensor Output Circuit Type | Two Wire |
| Sensing Distance - Maximum | 15 mm |
| Sensing Distance - Minimum | 8 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 30 mm |
| Series | XSA Series |
| Shielded / Unshielded | Unshielded |
| Supply Voltage | 24-240V AC/24-210V DC |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 4.1 |
| Ship length (cm) | 13.2 |
| Ship width (cm) | 9.5 |
| Country of Origin | FR |
Product Variants
| Product | Model | Number Of Wires | Ip Rating | Max. Detecting Distance | Sensing Method | Number Of Pins | Output Mode | Shielded / Unshielded | Max. Load Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS1N05NA310 | 3 | IP67 | - | Inductive | - | - | - | - | €241.67 | |
 |
XS1L04PA310 | 3 | IP67 | - | Inductive | - | - | - | - | - | RFQ
|
 |
XS612B4PAM12 | 3 | IP67, IP69K | - | Inductive | 4 | - | - | - | €139.96 | |
 |
XS1N18PB349TF | 3 | IP68, IP69K | - | Inductive | - | - | - | - | €260.96 | |
 |
XS4P30MA230 | 2 | IP68 | - | Inductive | - | - | - | - | €250.07 | |
 |
XS4P18AB120 | 2 | IP67 | 8 mm | Inductive | - | NC | Unshielded | 4 mA | €422.03 | |
 |

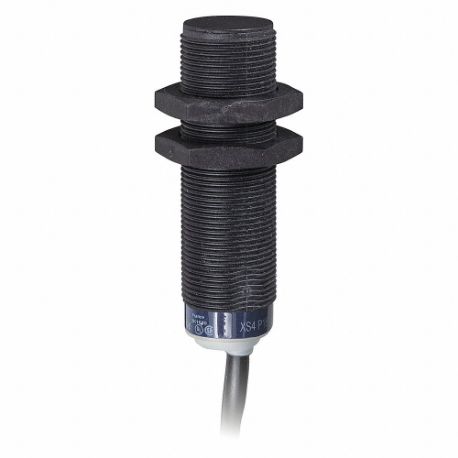

XS4P18MA230 | 2 | IP68 | - | Inductive | - | - | - | - | €290.50 |
