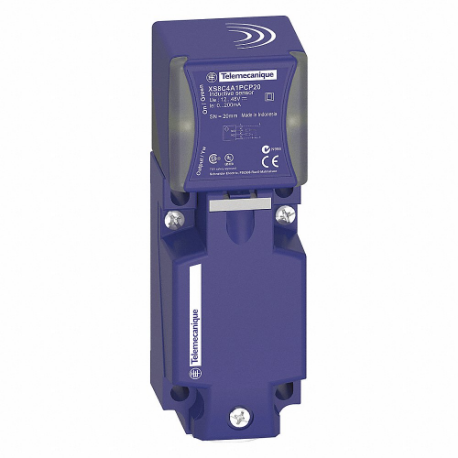

TELEMECANIQUE SENSORS XS8C4A1PCN12 Rectangular Proximity Sensor, 12 To 48V DC, 300 Hz, 4 Wire Pnp, Plastic
Item: CU6FBBModel: XS8C4A1PCN12Cross Ref: 32J314
7 In Stock
Ships within 2 days via
5.00% off
€263.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rectangular Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Body Material | PBT |
| Case Material | Plastic |
| Dc Supply Voltage Rating | 12-48V |
| Depth | 117 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Screw Clamp Terminal |
| Included Indicator Lights | Indicator Lights Included |
| Length | 40 mm |
| Max. Detecting Distance | 20 mm |
| Max. Load Amps | 200 mA |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| No. Of Wires | 4 |
| Operating Temp. | -13°F to +158°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NO/NC |
| Output Circuit Type | PNP |
| Output Mode | NC/No |
| Overall Depth | 40 mm |
| Overall Height | 117 mm |
| Overall Width | 40 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Proximity Sensor Operating Frequency | 300 Hz |
| Proximity Sensor Output Circuit Type | Four Wire PNP |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Rectangular |
| Series | XS8 Series |
| Shielded/unshielded | Shielded |
| Supply Voltage | 12-48V DC |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 4.8 |
| Ship length (cm) | 14 |
| Ship width (cm) | 5 |
| Country of Origin | FR |
Product Variants
| Product | Model | Ip Rating | Circuit Type | Max. Detecting Distance | Depth | Operating Frequency | Power Required | Output Mode | Proximity Sensor Operating Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS8C1A1MAL2 | IP68 | 2 Wire | - | 15 mm | 1000 Hz | 24-240V | No | - | €278.94 | |
 |
XS8D1A1MAL2 | IP68 | 2 Wire | 60 mm | 26 mm | 150 Hz | 24-240V | No | 150 Hz | €412.86 | |
 |
XS8C4A1NCG13 | IP65, IP67, IP69K | NPN | - | 117 mm | 300 Hz | 12-48V DC | - | - | €274.89 | |
|
XS8C4A1PCG13 | IP65, IP67, IP69K | PNP | - | 117 mm | 300 Hz | 12-48V DC | - | - | €267.74 | |
|
XS8C4A1DPG13 | IP65, IP67, IP69K | 2 Wire | - | 117 mm | 300 Hz | 12-48V DC | - | - | €327.70 | |
|
XS8C4A1MPG13 | IP65, IP67, IP69K | 2 Wire | - | 117 mm | 300 Hz | 24-240V | - | - | €354.85 | |
|
XS8C4A4NCG13 | IP65, IP67, IP69K | NPN | - | 117 mm | 200 Hz | 12-48V DC | - | - | €290.23 |
