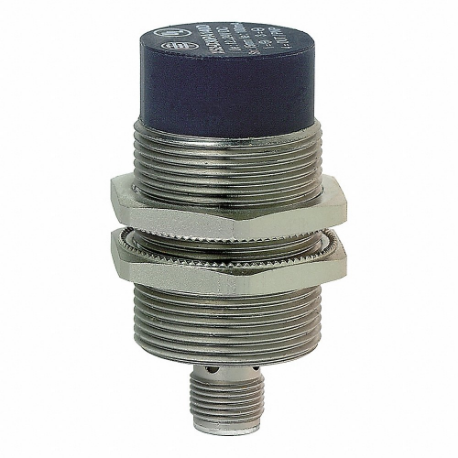

TELEMECANIQUE SENSORS XS630B4PAM12 Inductive Sensor 58Vdc 200Ma Xs
Item: CU6EUFModel: XS630B4PAM12Cross Ref: 48T751
7 In Stock
Ships within 2 days via
5.00% off
€183.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inductive Sensor |
| Ac Supply Voltage | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 12-48V |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 40 mm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 15 mm |
| No. Of Pins | 4 |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M30 Threaded |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Type | PNP |
| Overall Height | 74 mm |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 36 mm |
| Series | XS6 Series |
| Supply Voltage | 12-48V DC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 6.5 |
| Country of Origin | FR |
Product Variants
| Product | Model | No. Of Wires | Ip Rating | Sensor Dia. | Supply Voltage | Electrical Connection | Dc Supply Voltage Rating | Ac Supply Voltage | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS608B1NAL2 | 3 | IP67 | 8 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 51 mm | €184.11 | |
 |
XS608B1NAM12 | 3 | IP67 | 8 mm | 12-48V DC | M12 | 12-48V | Not Rated | 62 mm | €176.15 | |
|
XS608B1NBL2 | 3 | IP67 | 8 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 51 mm | €178.50 | |
 |
XS612B1MAL2 | 2 | IP68, IP69K | 12 mm | 24-240V AC/24-240V DC | Bare Wire | 24-240V DC | 24-240V AC | 54 mm | €155.24 | |
 |
XS612B1MAU20 | 2 | IP67, IP69K | 12 mm | 24-240V AC/24-240V DC | 1/2" Connector | 24-240V DC | 24-240V AC | 61 mm | €177.71 | |
|
XS612B1MBL2 | 2 | IP68, IP69K | 12 mm | 24-240V AC/24-240V DC | Bare Wire | 24-240V DC | 24-240V AC | 54 mm | €154.27 | |
|
XS612B1NAL2 | 3 | IP68, IP69K | 12 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 54 mm | €141.41 |
