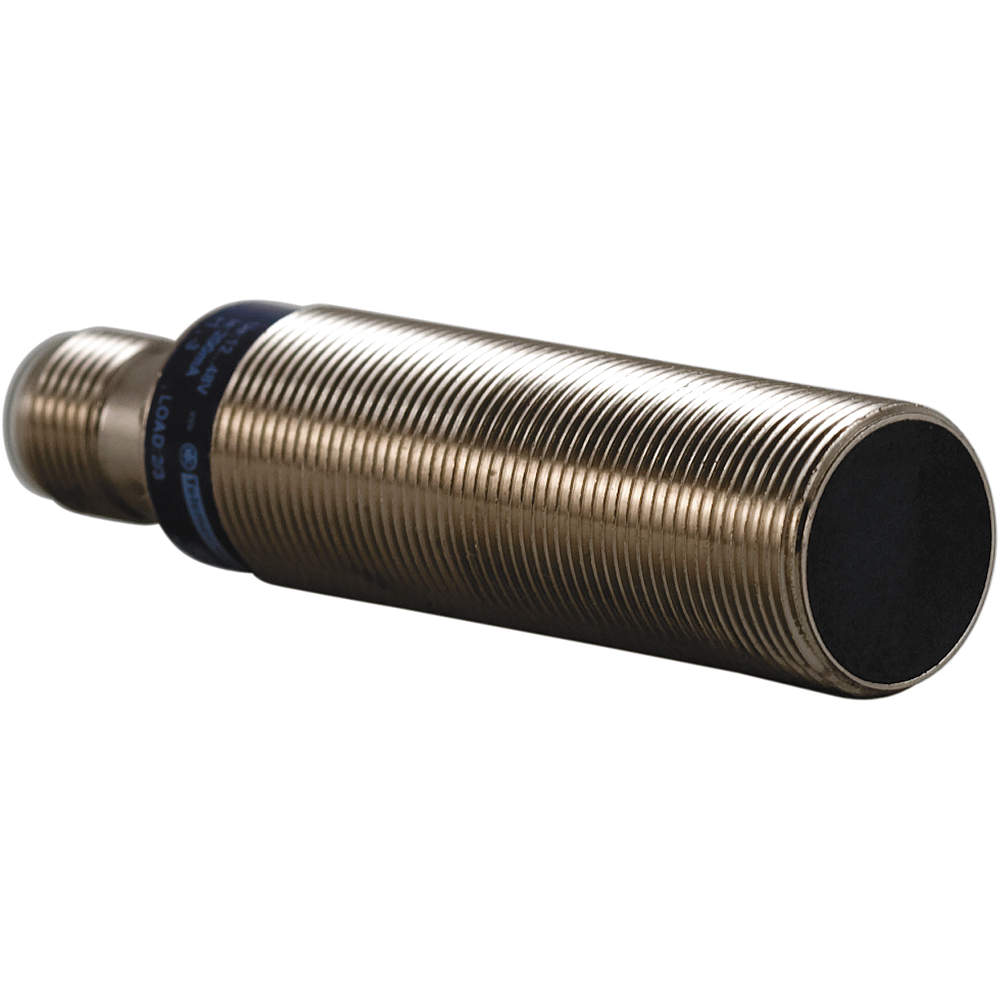

TELEMECANIQUE SENSORS XS618B1PBM12 Proximity Sensor Inductive 18mm PNP NC
Item: AG9FYNModel: XS618B1PBM12Cross Ref: 1EXR1
7 In Stock
Ships within 2 days via
5.00% off
€188.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Basic Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Finish | Nickel Plated |
| Case Material | Brass |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 12-48V |
| Detecting Distance | 8 mm |
| Detecting Distance | 8.0mm |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Extended Range |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Length | 41 mm |
| Max. Current Load | 200mA |
| Max. Load Amps | 200 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 8 mm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 4 mm |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Pins | 4 |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M18 Threaded |
| Operating Frequency | 1000 Hz |
| Operating Temp. | -13°F to +158°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NC |
| Output Circuit Type | PNP |
| Output Mode | NC |
| Overall Height | 74 mm |
| Power Required | 12-24V DC |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 18 mm |
| Sensor Dia. | 18.0mm |
| Series | XS6 Series |
| Shielded/unshielded | Shielded |
| Supply Voltage | 12-48V DC |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.6 |
| Ship length (cm) | 11.8 |
| Ship width (cm) | 4.9 |
| Country of Origin | ID |
Product Details:
- Special Features: Extended Range
Product Variants
| Product | Model | No. Of Wires | Ip Rating | Sensor Dia. | Supply Voltage | Electrical Connection | Dc Supply Voltage Rating | Ac Supply Voltage | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS608B1NAL2 | 3 | IP67 | 8 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 51 mm | €184.11 | |
 |
XS608B1NAM12 | 3 | IP67 | 8 mm | 12-48V DC | M12 | 12-48V | Not Rated | 62 mm | €176.15 | |
|
XS608B1NBL2 | 3 | IP67 | 8 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 51 mm | €178.50 | |
 |
XS612B1MAL2 | 2 | IP68, IP69K | 12 mm | 24-240V AC/24-240V DC | Bare Wire | 24-240V DC | 24-240V AC | 54 mm | €155.24 | |
 |
XS612B1MAU20 | 2 | IP67, IP69K | 12 mm | 24-240V AC/24-240V DC | 1/2" Connector | 24-240V DC | 24-240V AC | 61 mm | €177.71 | |
|
XS612B1MBL2 | 2 | IP68, IP69K | 12 mm | 24-240V AC/24-240V DC | Bare Wire | 24-240V DC | 24-240V AC | 54 mm | €154.27 | |
|
XS612B1NAL2 | 3 | IP68, IP69K | 12 mm | 12-48V DC | Bare Wire | 12-48V | Not Rated | 54 mm | €141.41 |
