TELEMECANIQUE SENSORS XS618B1MAL2 Proximity Sensor Inductive 18mm NO
Item: AG9FXMModel: XS618B1MAL2Cross Ref: 1EXK3
7 In Stock
Ships within 2 days via
10.00% off
€162.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | 24-240V AC |
| Application | General Purpose |
| Basic Material | Metal |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Body Type | Fixed |
| Case Finish | Nickel Plated |
| Case Material | Brass |
| Circuit Type | 2 Wire |
| Dc Supply Voltage Rating | 24-240V DC |
| Description/special Features | Extended Range |
| Detecting Distance | 8.0mm |
| Detecting Distance | 8 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Extended Range |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP68, IP69K |
| Load Current - Maximum | 300 mA |
| Max. Current Load | 200mA |
| Max. Delay First Up | 25 ms |
| Max. Detecting Distance | 8 mm |
| Max. Load Current | 200 mA |
| Maximum Delay Recovery | 0.5 ms |
| Maximum Delay Response | 0.5 ms |
| Nema Enclosure Rating | NEMA 4X |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Wires | 2 |
| Operating Frequency | 25 Hz AC/1000 Hz DC |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | 2 Wire AC/DC |
| Output Circuit Contact Form | No |
| Output Circuit Type | Ac, DC-Type |
| Output Mode | No |
| Overall Height | 62 mm |
| Power Required | 24-240V |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 18 mm |
| Sensing Distance - Minimum | 4 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Dia. | 18.0mm |
| Series | XS6 Series |
| Shielded / Unshielded | Shielded |
| Supply Voltage | 24-240V AC/24-240V DC |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 13.2 |
| Ship width (cm) | 9.7 |
| Country of Origin | ID |
Product Details:
- Special Features: Extended Range
Product Variants
| Model | Circuit Type | Number Of Wires | Ip Rating | Max. Detecting Distance | Output Mode | Shielded / Unshielded | Operating Frequency | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XS108BLNAL2 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €87.25 | |
| XS108BLNAM12 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €160.82 | |
| XS108BLPAL2 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.69 | |
| XS108BLPAL5 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €108.22 | |
| XS108BLPAM12 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.18 | |
| XS108BLPAM8 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €95.24 | |

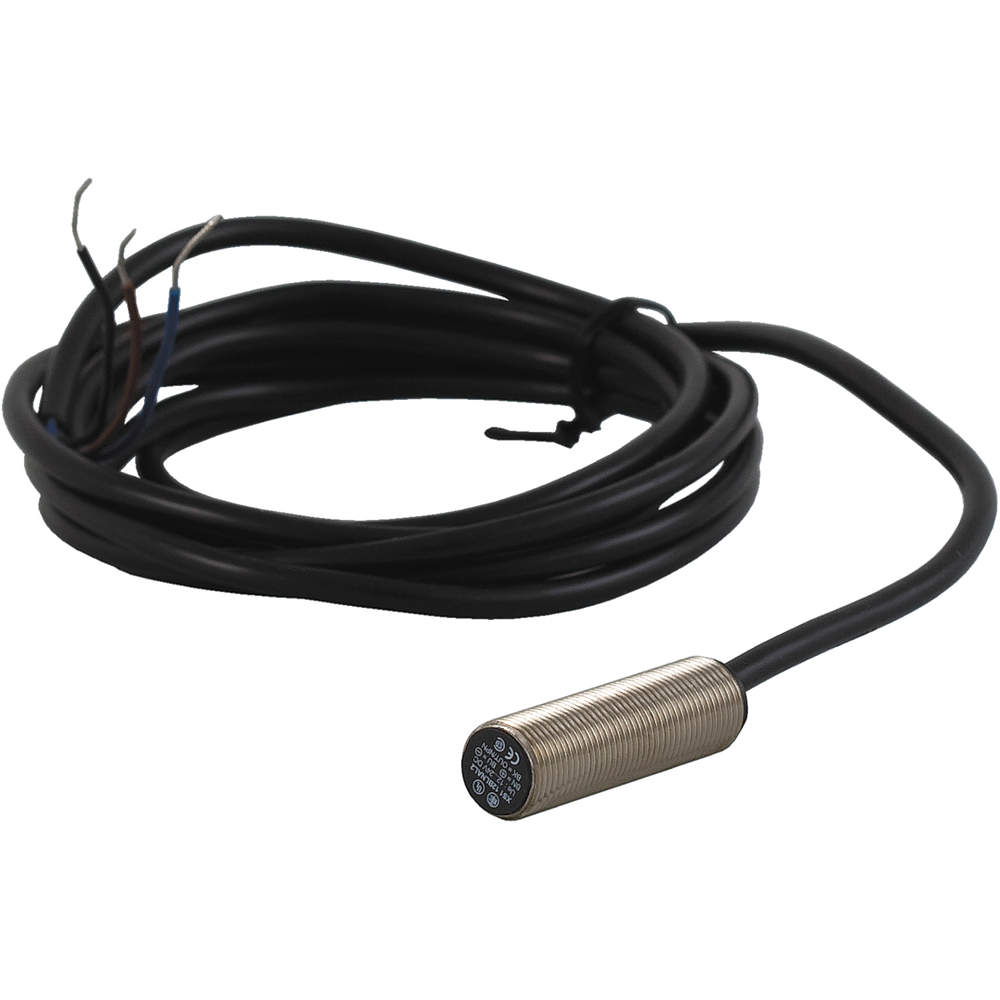

| XS112BLNAL2 | NPN | 3 | IP67 | 2 mm | No | Shielded | 2000 Hz | 12-24V DC | €89.69 |
