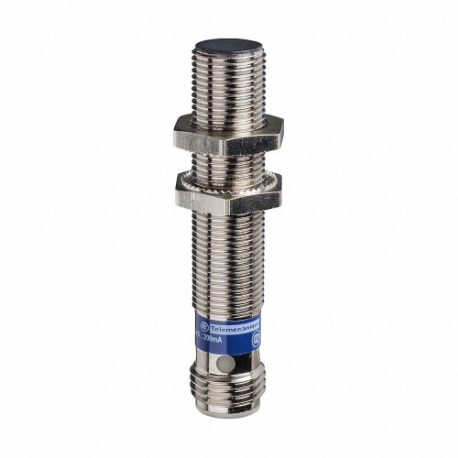

TELEMECANIQUE SENSORS XS612B1MBU20 Proximity Sensor, 12 mm Ac/Dc Xs6
Item: CU6FAFModel: XS612B1MBU20Cross Ref: 48T729
7 In Stock
Ships within 2 days via
5.00% off
€180.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | 24-240V AC |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 24-240V DC |
| Display Qty | 1 |
| Electrical Connection | 1/2" Connector |
| Electrical Installation Type | Direct Connector |
| Features | Flush Mountable |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 4 mm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 3 mm |
| No. Of Pins | 3 |
| No. Of Wires | 2 |
| Output Circuit Contact Form | NC |
| Overall Height | 61 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 17 mm |
| Series | XS6 Series |
| Supply Voltage | 24-240V AC/24-240V DC |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 4.2 |
| Ship width (cm) | 9.5 |
| Country of Origin | FR |
Product Variants
| Product | Model | Ip Rating | Circuit Type | Max. Detecting Distance | Sensor Dia. | Min. Operating Temp. | Output Mode | Operating Frequency | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XS608B1NAL2 | IP67 | NPN | 2.5 mm | 8 mm | -13°F | No | 2500 Hz | 12-48V DC | €184.11 | |
 |
XS608B1NAM12 | IP67 | NPN | - | 8 mm | -13°F | No | 2500 Hz | 12-48V DC | €176.15 | |
|
XS608B1NBL2 | IP67 | NPN | - | 8 mm | -13°F | NC | 2500 Hz | 12-24V DC | €178.50 | |
 |
XS612B1MAL2 | IP68, IP69K | 2 Wire | - | 12 mm | -13°F | No | 25 Hz AC/1000 Hz DC | 24-240V | €155.24 | |
 |
XS612B1MAU20 | IP67, IP69K | 2 Wire | - | 12 mm | -13°F | No | 25 Hz AC/1000 Hz DC | 24-240V | €177.71 | |
|
XS612B1MBL2 | IP68, IP69K | 2 Wire | - | 12 mm | -13°F | NC | 25 Hz AC/1000 Hz DC | 24-240V | €154.27 | |
|
XS612B1NAL2 | IP68, IP69K | NPN | - | 12 mm | -13°F | No | 2500 Hz | 12-48V DC | €141.41 |
