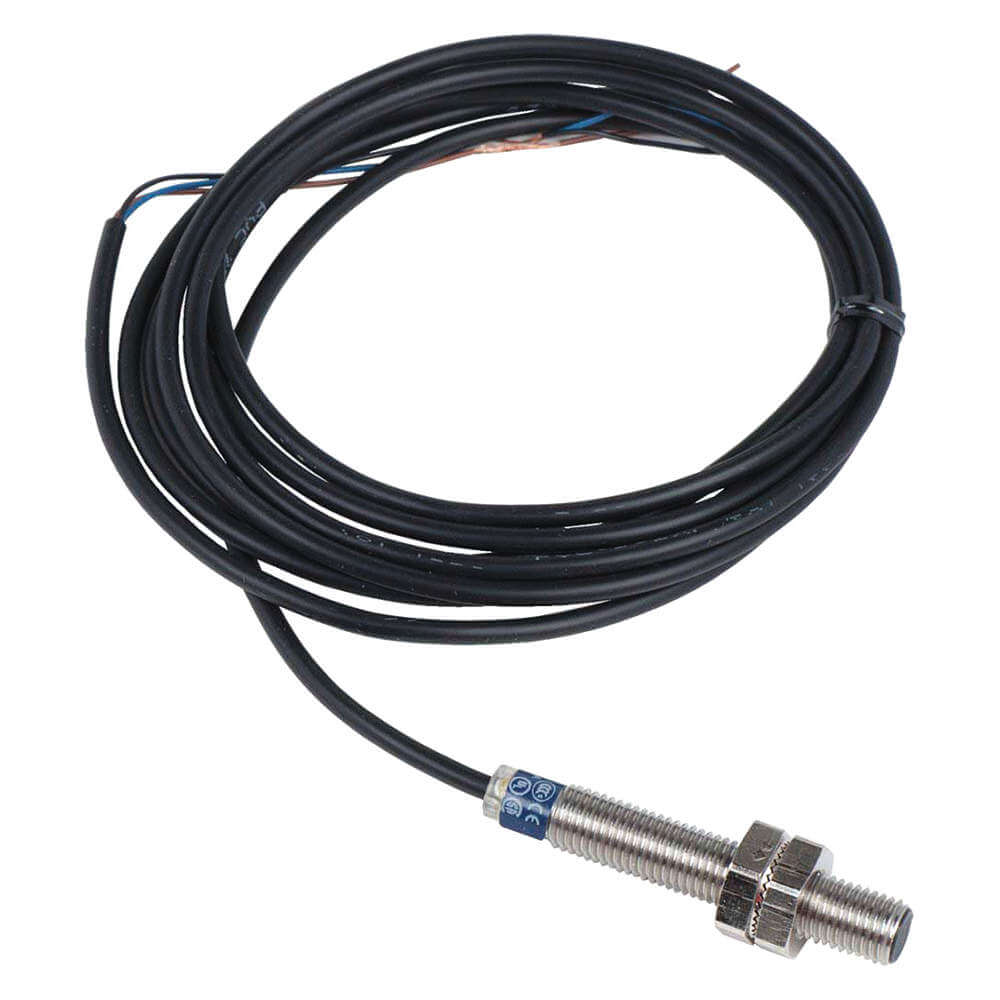

TELEMECANIQUE SENSORS XS608B1PBL2 Cylindrical Proximity Sensor 8mm PNP
Item: AH2ZGZModel: XS608B1PBL2Cross Ref: 30UH53
7 In Stock
Ships within 2 days via
10.00% off
€162.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Application | General Purpose |
| Basic Material | Metal |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Stainless Steel |
| Body Stainless Steel Grade | Grade 303 |
| Body Type | Fixed |
| Case Grade | Grade 303 |
| Case Material | Stainless Steel |
| Circuit Type | PNP |
| Dc Supply Voltage Rating | 12-48V |
| Detecting Distance | 2.5mm |
| Detecting Distance | 2.5 mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 51 mm |
| Max. Current Load | 200mA |
| Max. Delay First Up | 10 ms |
| Max. Detecting Distance | 2.5 mm |
| Max. Load Current | 200 mA |
| Maximum Delay Recovery | 0.2 ms |
| Maximum Delay Response | 0.2 ms |
| Maximum Sensing Distance | 3 mm |
| Nominal Sensor Diameter | M8 Threaded |
| Number Of Wires | 3 |
| Operating Frequency | 2500 Hz |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NC |
| Output Circuit Type | PNP |
| Output Mode | NC |
| Overall Height | 51 mm |
| Power Required | 12-48V DC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 8 mm |
| Sensing Distance - Minimum | 0 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 8 mm |
| Sensor Dia. | 8.0mm |
| Series | XS6 Series |
| Shielded / Unshielded | Shielded |
| Supply Voltage | 12-48V DC |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1 |
| Ship length (cm) | 10.5 |
| Ship width (cm) | 11 |
| Country of Origin | ID |
Product Details:
- Special Features: Yellow LED Output Indication, Reverse Polarity, Overload And Short-Circuit Protection
Product Variants
| Model | Circuit Type | Number Of Wires | Ip Rating | Max. Detecting Distance | Output Mode | Shielded / Unshielded | Operating Frequency | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XS108BLNAL2 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €87.25 | |
| XS108BLNAM12 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €160.82 | |
| XS108BLPAL2 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.69 | |
| XS108BLPAL5 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €108.22 | |
| XS108BLPAM12 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.18 | |
| XS108BLPAM8 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €95.24 | |
| XS112BLNAL2 | NPN | 3 | IP67 | 2 mm | No | Shielded | 2000 Hz | 12-24V DC | €89.69 |
