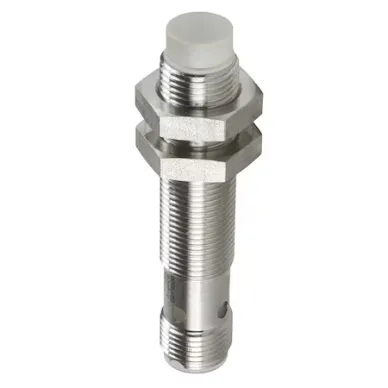

TELEMECANIQUE SENSORS XS512B1DBM12 Proximity Sensor, 12 mm Dc 2 Wire Xs5
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 12-48V |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Features | Overload Protection, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP69K |
| Load Current - Maximum | 100 mA |
| Number Of Pins | 4 |
| Number Of Wires | 2 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Current - Minimum | 1.5 mA |
| Overall Height | 61 mm |
| Sensing Distance - Maximum | 2 mm |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 17 mm |
| Series | XS Series |
| Standards | Ce, Csa, Ul Listed |
| Supply Voltage | 12-48V DC |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 6.7 |
| Country of Origin | FR |
Product Variants
| Product | Model | Number Of Wires | Ip Rating | Max. Detecting Distance | Sensing Method | Number Of Pins | Output Mode | Shielded / Unshielded | Max. Load Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XSAV11801 | 2 | IP67 | 81 mm | Inductive | - | NC | Unshielded | 1.5 mA | €379.90 | |
 |
XS1N05NA310 | 3 | IP67 | - | Inductive | - | - | - | - | €241.67 | |
 |
XS1L04PA310 | 3 | IP67 | - | Inductive | - | - | - | - | - | RFQ
|
 |
XS612B4PAM12 | 3 | IP67, IP69K | - | Inductive | 4 | - | - | - | €139.96 | |
 |
XS1N18PB349TF | 3 | IP68, IP69K | - | Inductive | - | - | - | - | €260.96 | |
 |
XS4P30MA230 | 2 | IP68 | - | Inductive | - | - | - | - | €250.07 | |
 |
XS4P18AB120 | 2 | IP67 | 8 mm | Inductive | - | NC | Unshielded | 4 mA | €422.03 |
