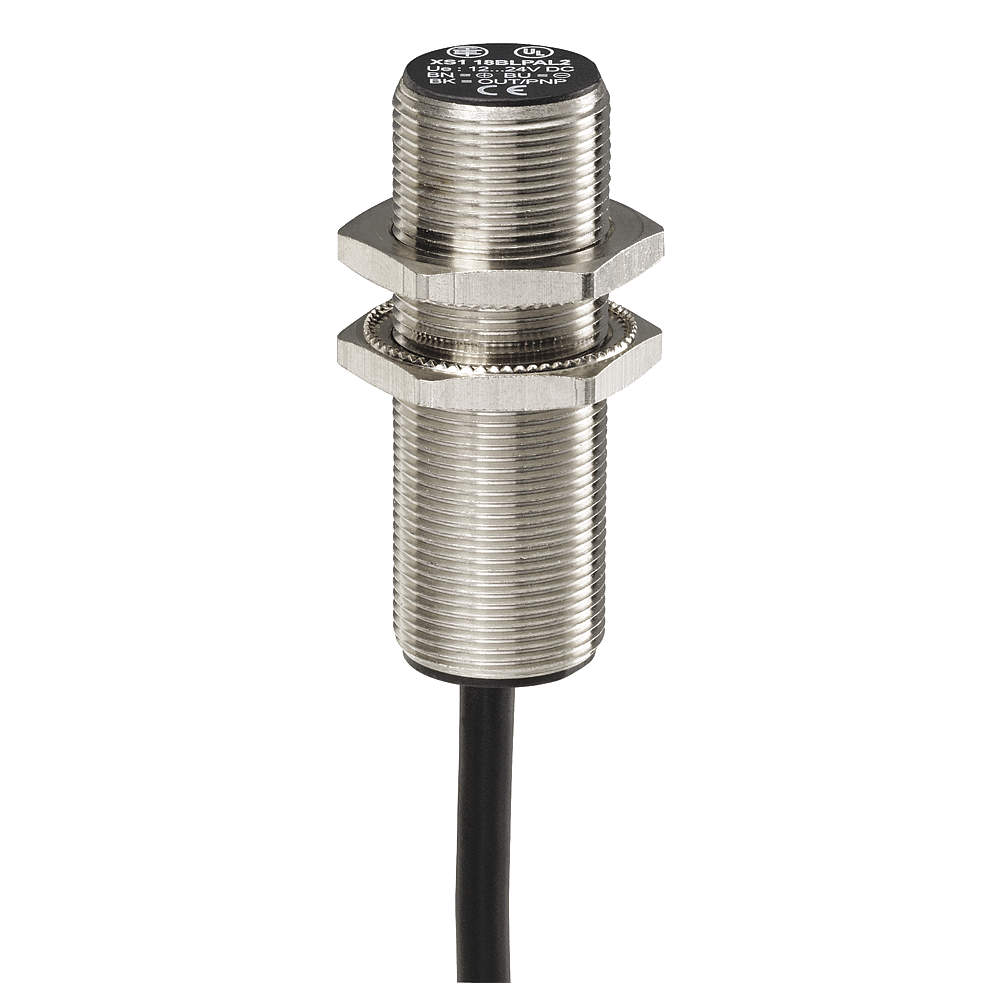

TELEMECANIQUE SENSORS XS218BLNBL2 Proximity Sensor Inductive 8mm NPN NC
Item: AG9FQAModel: XS218BLNBL2Cross Ref: 1EWH8
7 In Stock
Ships within 2 days via
10.00% off
€89.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Basic Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Finish | Nickel Plated |
| Case Material | Brass |
| Circuit Type | NPN |
| Dc Supply Voltage Rating | 12-24V DC |
| Detecting Distance | 8 mm |
| Detecting Distance | 8.0mm |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 41 mm |
| Load Current - Maximum | 200 mA |
| Max. Current Load | 100mA |
| Max. Load Current | 100 mA |
| Nema Enclosure Rating | NEMA 4X |
| Nominal Sensor Diameter | M18 Threaded |
| Number Of Wires | 3 |
| Operating Frequency | 250 Hz |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | NPN |
| Output Circuit Contact Form | NC |
| Output Circuit Type | NPN |
| Output Mode | NC |
| Overall Height | 53 mm |
| Power Required | 12-24V DC |
| Sensing Distance - Max. | 8 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 18 mm |
| Sensor Dia. | 18.0mm |
| Series | XS2 Series |
| Shielded / Unshielded | Unshielded |
| Supply Voltage | 12-24V DC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.2 |
| Ship length (cm) | 13.2 |
| Ship width (cm) | 9.6 |
| Country of Origin | ID |
Product Details:
- Special Features: Yellow LED Output Indication, Reverse Polarity, Overload And Short-Circuit Protection
Product Variants
| Model | Circuit Type | Number Of Wires | Ip Rating | Max. Detecting Distance | Output Mode | Shielded / Unshielded | Operating Frequency | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XS108BLNAL2 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €87.25 | |
| XS108BLNAM12 | NPN | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €160.82 | |
| XS108BLPAL2 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.69 | |
| XS108BLPAL5 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €108.22 | |
| XS108BLPAM12 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €92.18 | |
| XS108BLPAM8 | PNP | 3 | IP67 | - | No | Shielded | 3000 Hz | 12-24V DC | €95.24 | |
| XS112BLNAL2 | NPN | 3 | IP67 | 2 mm | No | Shielded | 2000 Hz | 12-24V DC | €89.69 |
