TELEMECANIQUE SENSORS XCKT2145N12 Compact Limit Switch Side Actuator 1no/1nc
Item: AG7DZDModel: XCKT2145N12Cross Ref: 5WJG9
7 In Stock
Ships within 2 days via
10.00% off
€145.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Limit Switch |
| Ac Contact Rating | 10A @ 240V |
| Actuator Length | 1.3" to 3.29" |
| Actuator Location | Side |
| Actuator Style | Roller Lever Plunger |
| Actuator Type | Roller Lever |
| Arm Material | Zinc |
| Body Depth | 1.48" |
| Body Height | 2" |
| Body Material | Plastic |
| Body Width | 2.28" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.27A @ 250V |
| Depth | 1.18" |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Clamp Terminals |
| Height | 2" |
| Ip Rating | IP66, IP67 |
| Manufacturer Warranty Length | 18 Months |
| Mounting Hole Diameter | 0.17" |
| Mounting Hole Horizontal Center To Center Distance | 40 mm |
| Mounting Style | Surface |
| Movement | CW/CCW |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Number Of Mounting Holes | 4 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operating Torque - Maximum | 0.9 lbs.-in. |
| Overall Depth | 1.48" |
| Overall Width | 3 3/25" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Roller Dia. | 0.63" |
| Roller Material | Thermoplastic |
| Roller Width | 0.22" |
| Series | XCKT Series |
| Travel Length | 90° |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 6.3 |
| Ship width (cm) | 4.8 |
| HS code | 8536509055 |
| Country of Origin | FR |
Product Variants
| Product | Model | Electrical Connection | Actuator Style | Ac Contact Rating | Ip Rating | Roller Dia. | Movement | Depth | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XCKP2102N12 | Screw Clamp Terminals | Roller Plunger | 10A @ 240V | IP66, IP67 | 0.46" | Horizontal | 1.18" | Plastic | €182.06 | |
 |

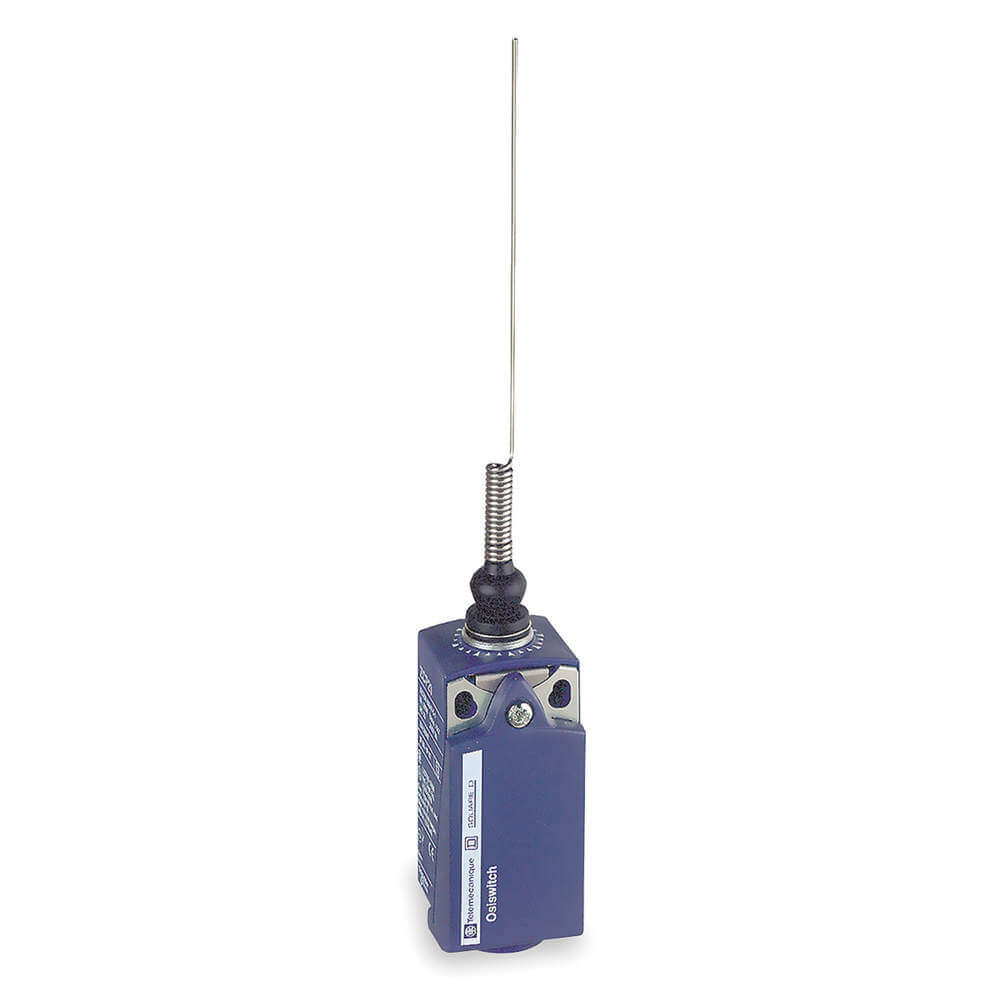

XCKP2106N12 | Screw Terminals | Cat Whisker | - | - | - | Any Direction | 1.18" | Plastic | €141.40 | |
 |
XCKP2110N12 | Screw Clamp Terminals | Plunger | 10A @ 240V | IP66, IP67 | - | Vertical | 1.18" | Plastic | €110.08 | |
 |
XCKP2121N12 | Screw Clamp Terminals | Roller Plunger | 10A @ 240V | IP66, IP67 | 0.55" | Horizontal, One-Way | 1.18" | Plastic | €152.98 | |
 |
XCKP2127N12 | Screw Clamp Terminals | Roller Plunger | 10A @ 240V | IP66, IP67 | 0.55" | One Way, Vertical | 1.18" | Plastic | €150.41 | |
 |
XCKP2145N12 | Screw Clamp Terminals | Roller Lever Plunger | 10A @ 240V | IP66, IP67 | 0.63" | CW/CCW | 1.18" | Plastic | €169.10 | |
 |

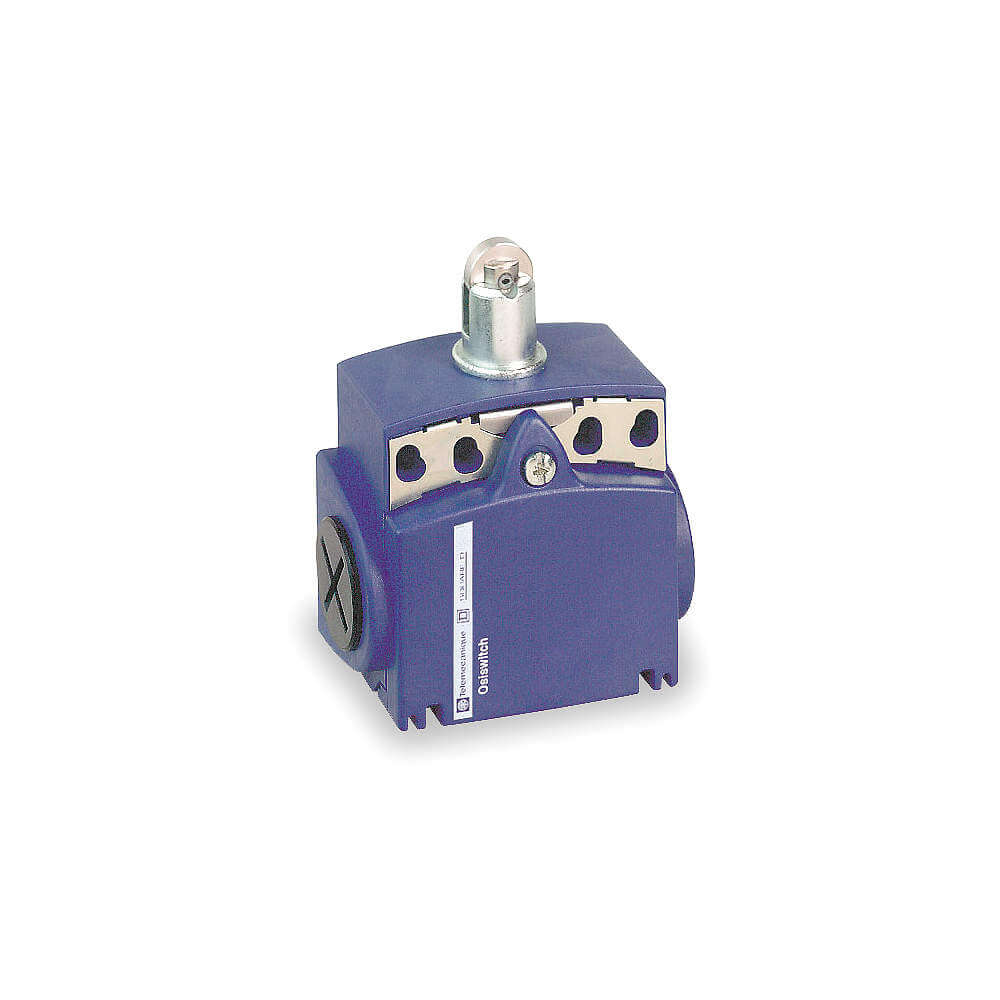

XCKT2102N12 | Screw Terminals | Plunger, Roller | - | - | 0.46" | Horizontal | 1.18" | Plastic | €188.30 |
